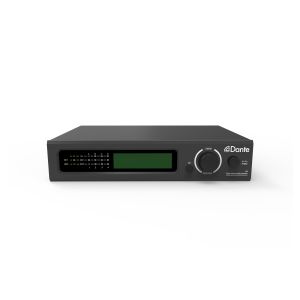

16X16 USB Audio Interface 16 in 16 out Transmitter Audio System 48V
16 Channel Poe Dante Network Audio Interface
Product Description:
DB series products are audio interface devices based on Dante
international general protocol, which can input analog audio
signals, convert them into digital audio signals, and route them to
any Dante audio transmission network devices through Dante
protocol, achieving features such as high quality, long distance,
low delay, strong anti-interference ability, and convenient
networking.
In addition, it supports access to any Dante network digital audio,
conversion to analog audio signal output, and access to traditional
analog audio devices such as mixing consoles, power amplifiers, and
processors.The device adopts high quality AD/DA signal conversion
chip, provides 48V phantom power supply, and can access higher
quality capacitor mic |
|
Specification:
| Model No. | DB-0808,DB-1616 | | Channel | DB-0808 (8 analog inputs, 8 analog outputs) + 8 × 8 Dante DB-1616 (16 analog input, 16 analog output)+ 16 × 16 Dante | | Sensitivity | 0dB ~ 51dB,3dB/level | | Digitalizing bit | 24bit | | Sampling rate | 48k | | Frequency response (20~20KHz) | 20HZ ~ 20K HZ ,±0.5dB | | Maximum input level (balanced) | 20dBu | | Maximum output level (balanced) | 20dBu | | Floor Noise | -90dBu | | THD+N | ＜0.002% @ 4dBu | | Analog to Digital dynamic range | 118dB | | Digital to Analog dynamic range | 123dB | | Input to output dynamic range | 110dB | | Input impedance (balanced) | 20KΩ | | Output impedance (balanced) | 100Ω | | Input common mode rejection | 80dB @60Hz | | Channel isolation @1kHz | 100dB | | Phantom power | 48V | | Working Temperature | -10℃-40℃ | | Working Power | DC 12V | | Power Consumption | 26W | | Size | 486mm×156mm×110mm |
|
|
Our Dante Interface products line including:
- 2CH Dante AVIO
- 2CH Dante Wall Plate
- 4CH Dante Box
- 8CH,16CH Dante Interface
FAQ:
Q1: Are you manufacturer or trade company?
A: We are manufacturer,which located in Shenzhen, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, We can provide OEM or ODM Solution depends on client
requirements
Q3: What's the quality standard of your products?
A: Our products has approved CE, ROHS certification.
Q4: Which place will use FHB equipment?
A: Our products are widely used in International Conference,
Governments, Banks, Churches, Airports, Parliaments, Education
institutes, Hotel, Private corporate conference hall etc,.
Q5: What’s the delivery time?
A:Sample order: During 5days,Bulk order:10-15days
Check Products one by one, to make sure all products are working
excellent quality..
