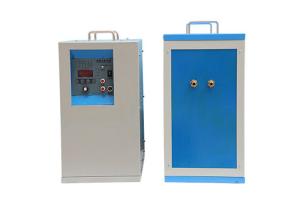

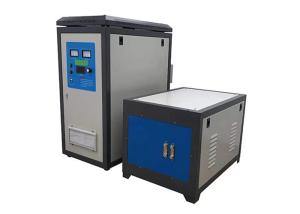

High Frequency Induction Heating Equipment High Frequency Induction
Diathermy Equipment
Purpose of high frequency induction heating equipment:
The main uses are: metal heat treatment, metal quenching, metal
annealing, metal tempering, metal diathermy, metal brazing, silver
welding, brazing, metal heat mold, metal melting, metal embedded
plastic, etc.
Technical parameters of high frequency induction heating equipment:
Model: LC-GPGY-80KW
Cooling water pressure: 0.1-0.3mpa
Input power: 80kW
Cooling water flow (main engine): 15L / min (0.1MPa)
Input voltage: 349v
Cooling water flow (transformer): 18L / min (0.1MPa)
Maximum input current: 80A
Host volume: 468mm×368mm×638mm
Oscillation frequency: 20khz
Water temperature protection point: 50 ℃
Host weight: 40 ± 5% kg
Efficiency: 90%
Advantages of high frequency induction heating equipment:
1. High heating temperature, fast speed, short heating time, and
uniform heating of metal materials. The surface of the object to be
heated; Less oxidation, less workpiece deformation, and non-contact
heating;
2. Output power adjustment is flexible, convenient and accurate;
3. The temperature of the heated workpiece is easy to control, so
the product quality is stable;
4. Changing the shape of the induction heating ring can heat
complex workpieces and can also realize local heating;
5. Due to the use of transistor devices with low self loss and
inverter control technology, the overall efficiency can reach more
than 95%; And the effect of energy saving and water saving is
remarkable;
6. Small size, light weight, good working environment, no noise and
dust;
7. Various protection actions are sensitive, the service life of
main components is long, the collected fault rate is low, the
performance is reliable, and it can work continuously;
8. The machine can work when water and electricity are connected.
It is easy to operate and maintain;
