GLORYTEK Drilling Rig Tools Diesel Engine Driven Air Compressor Portable For Industrial

Name: GLORYTEK Drilling Rig Tools Diesel Engine Driven Air Compressor Portable For Industrial
Brand: GLORYTEK
Price: 1 USD

Ask Lasest Price
Brand Name :	GLORYTEK
Model Number :	GLCY1150
Payment Terms :	T/T, L/C, Western Union
Certification :	CE
Price :	negotiable
Supply Ability :	20 sets/month
Delivery Time :	20 days

Add to Cart

Product Details
Company Profile

GLORYTEK Drilling Rig Tools Diesel Engine Driven Air Compressor Portable For Industrial

GLORYTEK Drilling Rig Tools Diesel Engine Driven Air Compressor Portable For Industrial

Description

GLCY- (two-stage compression) series diesel-driven screw air compressor is a product carefully designed and manufactured by our company for customers.

It is mainly powered by a diesel engine. The air compressor head is connected through a coupling to generate air, which then drives a rock drill and other pneumatic tools to work. , To carry out work such as drilling;

its characteristic is that it can work in the field where there is no electricity.

Tehnical Parameter

Diesel Driven Compressors Technical Data
Model		LUY025-7	LUY036-7	LUY050-7	LYU055-7	LUY079-7	LUY085-14	LUY100-10	LUY100-12	LUY108-7	LUY118-7
Free air delivery		2.5	3.6	5	5.5	7.9	8.5	10	10	10.8	11.8
Working pressure	bar(e)	7	7	7	7	7	14	10	12	7	7
max./min.Working speed	rpm	3000-2400	2700-1500	2800-1500	2750-1850	2000-1400	2300-1430
Noiselevel(soundpressure) at 7m distance	dB(A)	<70	<80	<70	77+/-3	78+/-3
Capacity of fuel tank	L	32	80	80	185	185
Air outlet valves-qty x size	inches	2*G3/4	2*G3/4	3*G3/4	1G3/4 1G1 1/2	1G3/4 1G1 1/2
Length with towing device(min.)	mm	2729	2821		2200	2862	2862
Length with horizontal towbar	mm	2953	2821		3100	3651	3651
Width	mm	1280	1470		1400	1790	1790
Height	mm	1205	1361		1280	1908	1908
Operational weight(full fuel tank)	kg	556	652	688	960	1500	1680
Engine
Manufacturer		KUBOTA	YTO	YTO	DEUTZ	CUMMINS	CUMMINS
Engine type		D1105	YND485G	YND490G	D2011L03	4BT3.9-C80	4BTAA3.9-C130
Cylinders		3	3	3	4	4	4
Output at nominal speed	kW	19.4	22	32	36	60	97
Output at nominal speed	HP	26	30	43	49	80	130

Diesel Driven Compressors Technical Data
Modle		LUY120-14	LUY130-17	LUY170-13	LYU184-12	LUY202-10	LUY214-9	LUY239-7	LUY230-14
Free air delivery		12	13	17	18,4	20,2	21,4	23,9	23
Working pressure	bar(e)	14	17	15	12	10	8,6	7	14
max./min.Working speed	rpm	2300-1270	2200-1450	2200-1400				2000-1400
Noiselevel(soundpressure) at 7m distance	dB(A)	78+/-3	79+/-3	79+/-3				79+/-3
Capacity of fuel tank	L	250		350				495
Air outlet valves-qty x size	inches	1*G2		1*G2				1*G2
		1*G3/4		1*G3/4				1*G3/4
Length with towing device(min.)	mm	3525		3525				4210
Length with horizontal towbar	mm	4550		4550				5260
Width	mm	1770		1770				1800
Height	mm	2230		2230				2631
Operational weight(full fuel tank)	kg	3100	3500	3500				4600
Engine
Manufacturer		CUMMINS		CUMMINS				CUMMINS
Engine type		6BTA5.9-C180	6BTAA5.9-C205	6CTAA8.3-C240				6LTAA8.3-C315
Cylinders		6		6				6
Output at nominal speed	kW HP	132	153	179				232
		180	205	240				311
Modle		LUY250-12	LUY270-10	LUY290-9	LYU180-19	LUY215-21	LUY213-17	LUY300-17	LUY330-21
Free air delivery		25	27	29	18	21,8	23,1	30	33
Working pressure	bar(e)	12	10	8,6	19	21	17	25	21
max./min.Working speed	rpm	2000-1400			2200-1400	2000-1400		1600-1100
Noiselevel(soundpressure) at 7m distance	dB(A)	79+/-3			79+/-3			74+/-3
Capacity of fuel tank	L	495			512			780
Air outlet valves-qty x size	inches	1*G2			1*G2			1*G2
		1*G3/4			1*G3/4			1*G3/4
Length with towing device(min.)	mm	4210			4210			4710
Length with horizontal towbar	mm	5260			5260			6120
Width	mm	1800			2040			2100
Height	mm	2631			2631			2570
Operational weight(full fuel tank)	kg	4600			5100	5200		5750
Engine
Manufacturer		CUMMINS			CUMMINS			CUMMINS
Engine type		6LTAA8.3-C315			6CTAA8.3-C260	6LTAA8.8-C315		QSZ 13-C475
Cylinders		6			6	6		6
Output at nominal speed	kW	232			194	232		354
	HP	311			260	311		475

GLORYTEK 26/20 And 33/25 Diesel Engine Portable Air Compressor

Model	26/20	33/25
machine
Nominal volume flow m3/min	26(920)	33
Rated discharge pressure Mpa	2.0(20)	2.5
Unit weight kg	4500	6800
Length * width * height	4600×1950×2850	4700×2100×2500
Tire size * number	7.50-16×4	7.50-16×4
Diesel engine
manufacturer	CUMMINS	CUMMINS
model number	6LTAA8.9-C360	QSZ13-C550
type	Vertical, straight line, water cooling	Vertical, straight line, water cooling
Aspiration	Turbocharged medium cooling	Turbocharged medium cooling
Bore×trip×cylinders number	114×145×6	130×163×6
Displacement L	8.9	13
Rated speed r/min	1800	1800
Unloading speed r/min	1400	1300
Rated power HP	265(360)	550
Diesel engine oil capacity L	27.6	35
Fuel tank capacity L	400	600
Voltage of electric system v	24	24
Head model	SKY11G194
Compression series	2	2
Compressor oil capacity L	48	80
Gas supply valve	G2×1,	G2×1,
Specification * quantity	G3/4×1	G3/4×1

GLORYTEK Portable Electric Driven Air Compressor

Compressor		LUY 100D-7	LUY 110D-10		LUY 130D-7	LYU 139D-10	LUY 165D-7		LUY 135D-13		LUY 165-10	LUY 203D-7	LUY 165D-14
Free air delivery		10	11		13	13.9	16.5		13.5		16.5	20.3	16.5
Pressure	bar(e)	7	10		7	10	7		13		10	7	14
Noise	dB(A)	73+/-3				75+/-3					75+/-3
Max.Working Environment Temperature	℃	≤50				≤50					≤50
Dimensions	mm	365117901850				455017702292					526018002590
Weight	kg	1800	1920		1920	3195	3195		3220		3220	3220	3220
Outlet size		1*G1 1/2				1*G1 1/2							1G1 1/2 1G3/4
		1*G3/4				1*G3/4
Tire size		6.5-16*2				7.0-16*4							7.0-16*4
Motor	kW	55	75		75	90	90		110	110		110	132
Voltage		380V/3/50HZ				380V/3/50HZ							380V/3/50HZ
Motor case		IP54/F				IP54/F							IP54/F
Compressor		LUY 210D-10	LUY 230D-8.5		LUY 210D-14	LUY 250D-10		LUY 280D-8.5	LUY 238D-14		LUY 220D-21	LUY 250D-21	LUY 290D-21
Free air delivery		21	23		21	25		28	23.8		22	25	29
Pressure	bar(e)	10	8.5		14	10		8.5	14		21	21	21
Noise	dB(A)	75+/-3									78+/-3
Max.Working Environment Temperature	℃	≤50									≤50
Dimensions	mm	526018002590									526020402630
Weight	kg	4360		4360	4500	4500		4500	4600		4700	4850	4900
Outlet size		1G1 1/2 1G3/4									1G1 1/2 1G3/4
Tire size		6.5-16*2				7.0-16*4							7.0-16*4
Motor	kW	132		132	160	160		160	180		200	220	250
Voltage		380V/3/50HZ									380V/3/50HZ
Motor case		IP54/F									IP54/F

Company Profile

Glorytek Industry (Beijing) Co., Ltd. is an integrated corposration specialized in manufacturing and
exporting top quality drilling equipment and drilling parts for
more than 20 years. We are supported and assisted by highly
experienced R&D team and enginners that enable us to complete
all the assigned projects successfully as per clients'
requirements.

Our factory covers an area of 250,000 square meters,construlction
area is about 150,000 square meters, having machining machinery,
CNC processing center, friction welding machine,testing equipments
etc. over 200 sets and more than 600 employees.

Our main products are surface mining drilling rig, water well
drilling rigs, core drilling rigs, hdd drilling rigs, foundation
drilling rigs, downhole motor, air compressor, dth hammer, hammer
bit, tricone bit, pdc drill bit, button bit, drag bit, drill pipes,
shank adaptor, core bit, wireline coring tools, rock reamer, iluted
reamer, barrel reamer, stabilizer, drill collar etc.

Packing

1.The air compressor can be load in 20ft, 40ft container.
3.The delivery time for machine normally be 20 days after receiving
payment.
4. Shipping by sea.

Product Tags:

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: Glorytek Industry (Beijing) Co., Ltd.
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

Products	Drilling equipments and Drilling tools
Drilling Rig	DTH drilling rig, Blasthole drill rig, Water well drilling rig, Oil well drilling rig, Piling drilling rig, Anchor drilling rig, Rotary drilling rig, Auger drilling rig, CBM drilling rig etc.
Drillling Auxiliaries	DTH hammers, DTH bits, Downhole Motor, Pumps, Tricone bits, PDC Bits, Button Bits, Chisel Bits, Cross Bits, Drill pipe, Drill collars, Cutter Picks, etc.

All Categories

GLORYTEK Drilling Rig Tools Diesel Engine Driven Air Compressor Portable For Industrial

GLORYTEK Drilling Rig Tools Diesel Engine Driven Air Compressor Portable For Industrial

GLORYTEK Drilling Rig Tools Diesel Engine Driven Air Compressor Portable For Industrial

GLORYTEK diesel engine driven air compressor

Portable diesel engine driven air compressor

Industrial diesel driven air compressor

GLORYTEK Drilling Rig Tools Diesel Engine Driven Air Compressor Portable For Industrial

You May Like

Industrial Waterproof Sewer Inspection Camera With Flexible Cable

CE Durable Nq Pdc Core Bit High Efficient

Nq Pdc Core Drill Bits Drilling Rig Tools For Soil Rock Sampling

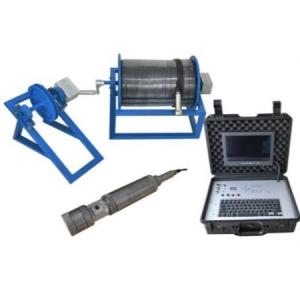

Underwater Borehole Deep Well Camera With Dual Camera And Electric Winch
