    Wireless Connection Ultrasonic Flaw Detector metal flaw detector

    Ask Lasest Price
    Brand Name : RAYTECH
    Model Number : RFD820
    Certification : ISO CE
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 500units per month
    Delivery Time : about 3~5days
    Price : contact us
    • Product Details
    • Company Profile

    Wireless Connection Ultrasonic Flaw Detector metal flaw detector


    Features Overview of Wireless Connection Ultrasonic Flaw Detector metal flaw detector

    Description of Wireless Connection Ultrasonic Flaw Detector metal flaw detector

    ★ User friendly dialog interactive helps operations like Calibration, making curves, etc.
    ★ All tools you need: DAC, AVG, TCG,color Bscan, AWS, Spheroidization Rate, etc.
    ★ Pulse Repeatition Frequency: 20-3000Hz precise adjust, high speed scan, no miss out.
    ★ High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions.
    ★ 12-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws.
    ★ Can use probe frequency 30M perfectly .
    ★ High speed real-time flaw detection video recording. Unlimited USB data storage.
    ★ Blue tooth connection to mobile device to generate and print detection reports on-site.
    ★ IP65 standard. Alloy + Silica gel case, water and dust proof, solid and lasts forever. Damping support makes it stands in any angle.
    ★ Battery lasts 15 hours for one charge. Each battery has own charging control so with two batteries it can work around the clock.
    ★ 500 independence setup, any criterion can be input freely, we can work in the scene without test block
    ★ Big memory of 1000 A graph
    ★ Test Modes: Pulse echo, dual element and thru-transmission
    ★ Probe Types: Single Straight, Single Angle, Dual Straight, Dual Angle, Through, Creeping, Surface
    ★ Gate Monitors: Two independent gates controllable over entire sweep range
    ★ Internal rechargeable Li-ion battery pack rated 7.2V at 8000 mAh
    ★ 15 hours nominal operating time depending on display brightness
    ★ 4 hours typical recharge time
    ★ Pulse Energy: 70V,100V,200V, 300V, 400V, 500V selectable
    ★ Rectification: Positive half wave, negative half wave, full wave, RF System
    ★ Gate Monitors: Two independent gates controllable over entire sweep range


    Specifications of Wireless Connection Ultrasonic Flaw Detector metal flaw detector

    TitleParameterTitleParameter
    Measuring Range(mm)0 ~ 15000Reject (suppression)0 to 80% full screen height
    Material Velocity100~20000 m/sUnitsInch or millimeter
    Pulse Repetition Frequency20-3000HzPower RequirementsAC Mains 100-240 VAC, 50-60 Hz
    Dynamic range≥38dBDisplay Delay-20 to 3400 µs
    LinearityHorizontal+/-0.2%Probe Delay/Zero Offset0 to 99.99µs
    Vertical2.5%Operating Temperature-10℃ to 50℃
    Bandwidth (amplifier bandpass )0.2 to 35 MHzStorage Temperature-30℃ to 50℃
    Sensitivity120 dB maxTransducer ConnectionsBNC or LEMO
    Amplifier Accuracy+/-1 dB.H×W×D(mm)260×175×60 (mm)
    Resolving Power>40dB (5P14)Weight(kg)1.2kg
    Sensitivity Leavings>62dB


    Functions of Wireless Connection Ultrasonic Flaw Detector metal flaw detector

    Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф).
    Flaw sizing: Automatic flaw sizing using AVG or DAC/TCG, speeds reporting of defect acceptance or rejection.
    Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity . ( V2 and two hole )
    Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated.
    Connectting U-Disk,the unit can get unlimited memory.
    Automated make video of test process and play; use upan,the length of video is unlimited.
    Color Bscan.
    There are 17 standards of in the unit.
    Blue tooth connection to mobile device to generate and print detection reports on-site. AWS D1.1.
    Curved Surface Correction feature.
    Crack Height Measure function.
    Magnify gate:spreading of the gate range over the entire screen width.
    Auto-gain function.
    Envelope: Simultaneous display of live A-scan at 70 Hz update rate and envelope of A-scan
    display.
    Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.
    Scan Freeze:Display freeze holds waveform and sound path data.
    Spheroidization Rate test.
    Alarm:Beep and LED.
    Real Time Clock.
    Fill echo.
    Capture mark.
    Echo color within the Gate.

    Standard Configuration of Wireless Connection Ultrasonic Flaw Detector metal flaw detector


    NameQTY
    1Main unit1
    2power adaptor1
    3probe connecting cable2
    4Instrument case1
    5Instruction manual1
    6

    Straight probe
    20mm 2.5MHz

    1
    7Angle probe 8x9 60°4MHz1
    8Certificate of approval1
    9Strap1
    10App Software1

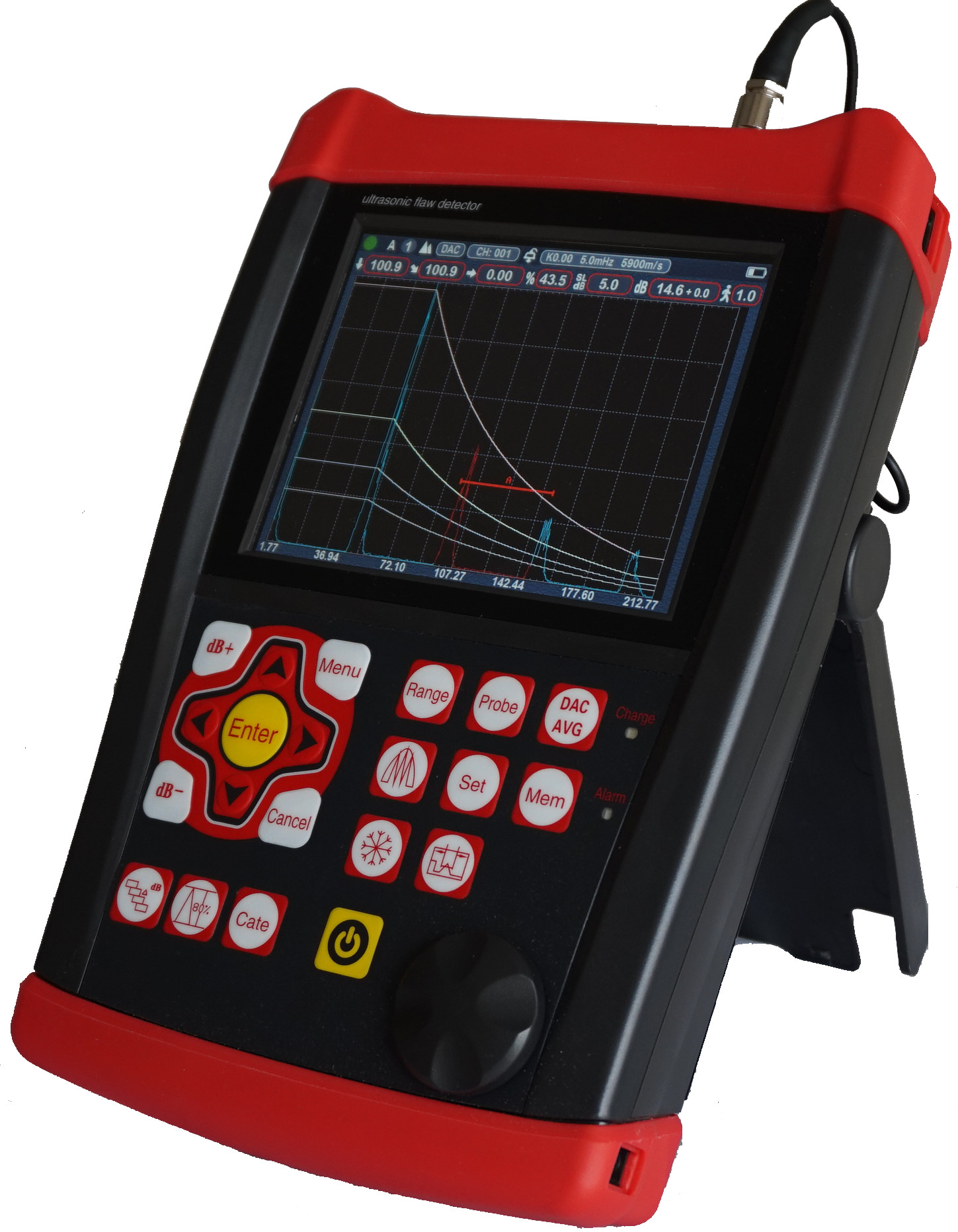

    Feature picture of Wireless Connection Ultrasonic Flaw Detector metal flaw detector

    Wireless Connection Ultrasonic Flaw Detector, metal flaw detector
    Wireless Connection Ultrasonic Flaw Detector, metal flaw detector
