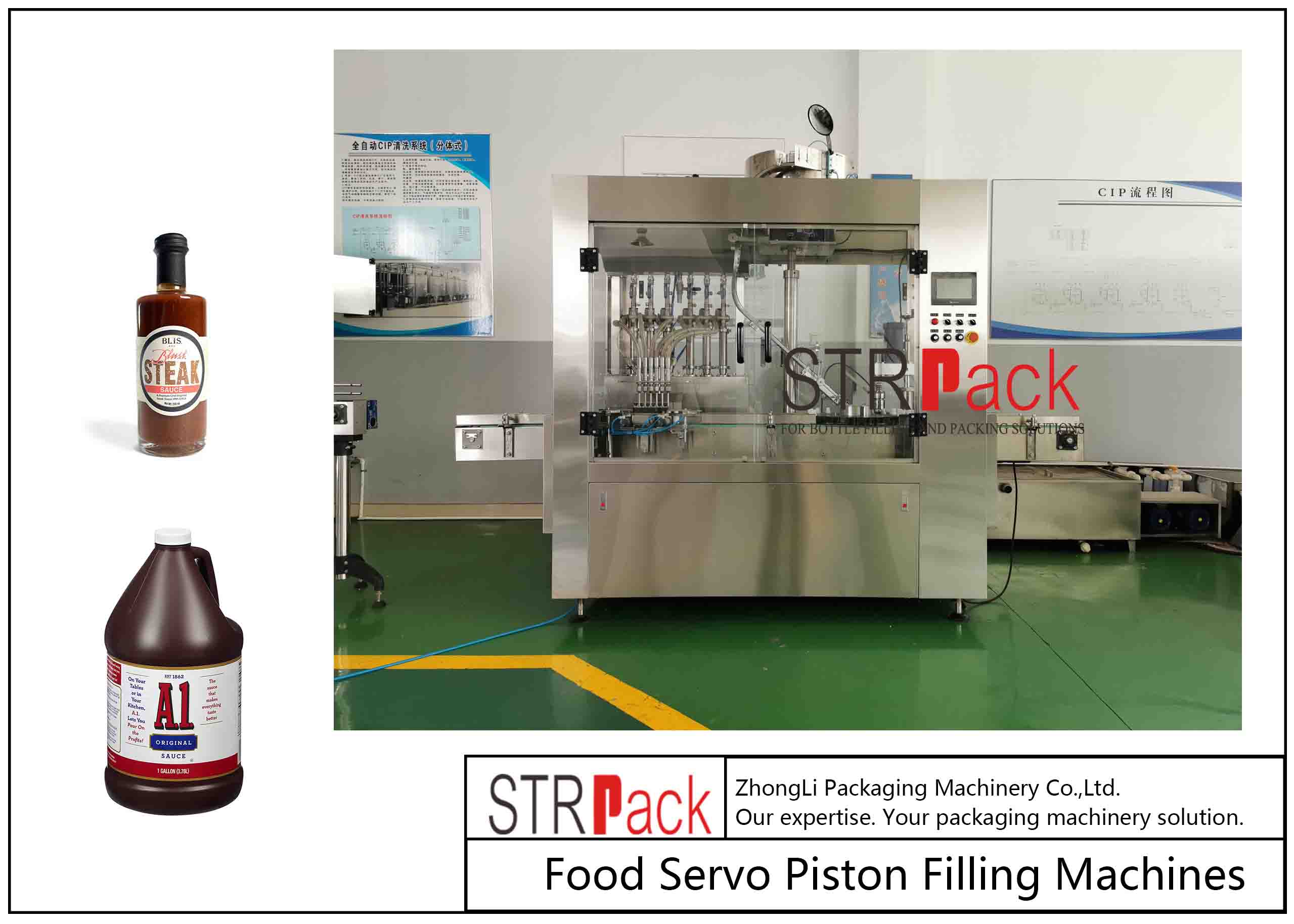

Automatic Sauce Bottle Filling Machine ( Chili Sauce, Oil, Paste,
3000 Bottles/H )
This filling capping machine is suitable for:
It's widely used in Food, Chemical, Medical, Cosmetics,
Agrochemical industry, applicable for filling liquid, especially
for high viscosity material and foamy liquid, such as: Oil, Sauce,
Ketchup, Honey, Shampoo, hot sauce, tomato sauce, Lotion Lubricant
oil, etc.
Features & Benefits:
1.Available with standard conveyor or with pucks for unstable
bottles
2.Flexible design
3.Very fast and easy changeover of format size
4.Docking filling station model available
5.Diving nozzle with bottom-up filling
6.Automatic Bottle Filling Machine adopts serve ball-screw system
to drive the piston cylinder.
The machine adopts PLC control, according to the filling bottle,
fixed discharging mouth, the rest all operation can be finished on
a touch screen. In addition to have common automatic servo piston
filling machine advantages, also the widened the range of filling
material. Such as filling material contains particles, long strips
of solid content, also can be a very effective filling.
Filling head:
The sauce is put into the material cylinder, and the piston to pump
the sauce into the measuring cylinder. Then the piston moves up to
send the sauce to the filling pipe. At the same time, when the
bottle enters the filling machine through the conveyor belt, the
filling head moves down to start filling. After filling, the
conveyor belt will automatically send the bottle to the capping
station.
(Filling process without drip leakage, the number of filling head
can be customized according to your needs and diameter of filling
head basis on the diameter of your barrel’s mouth)

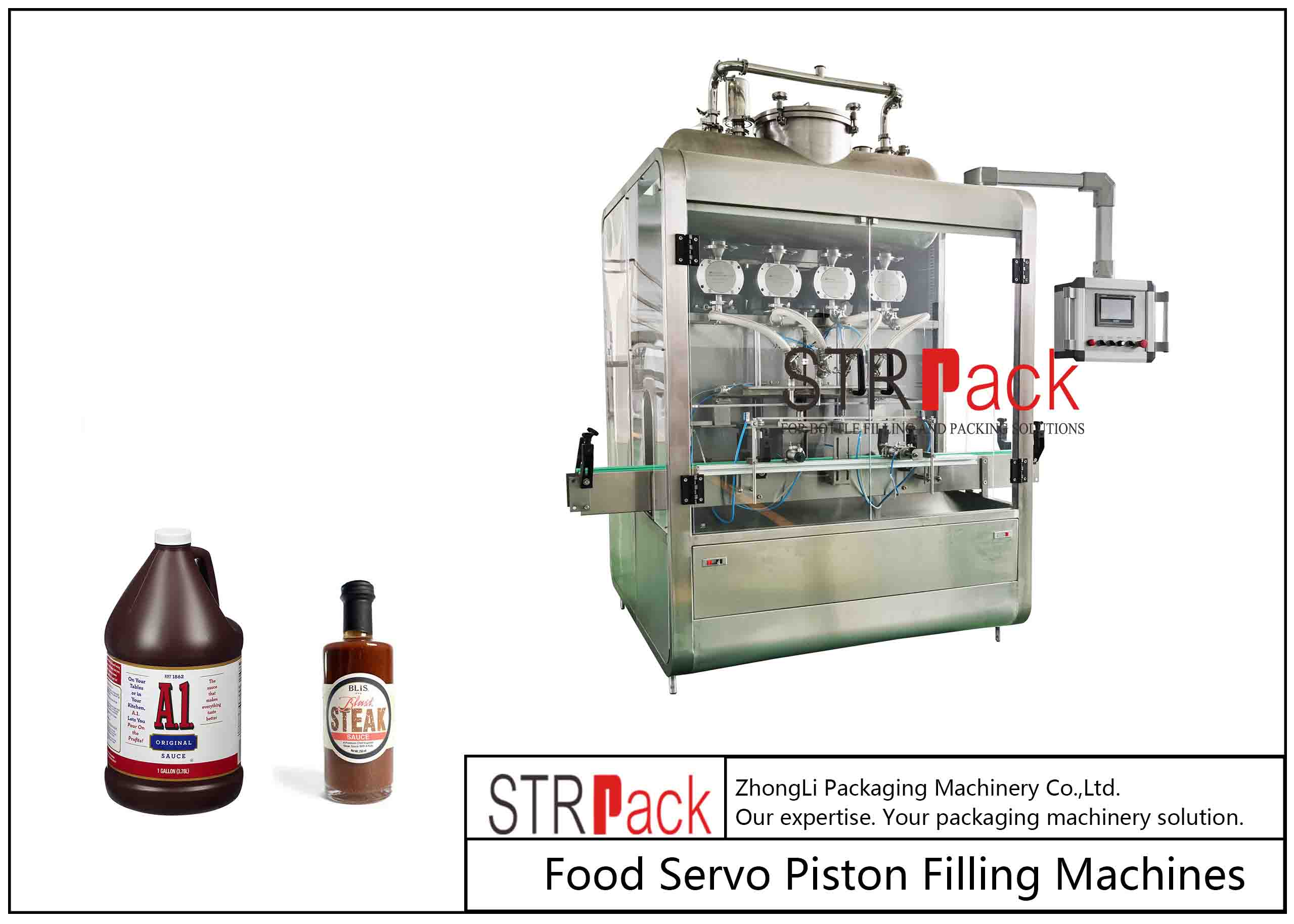

Material box:
The top of the machine is the material box, the material box is
used to store the materials you want to fill, his capacity is large
enough to reduce the number of times you add materials, this is
very convenient.In addition, it is placed on the top of the machine
to effectively save you more space.
When filling, the piston moves down to take material from the
material box and stops when it reaches the capacity of the
cylinder, after which the piston drives to start filling

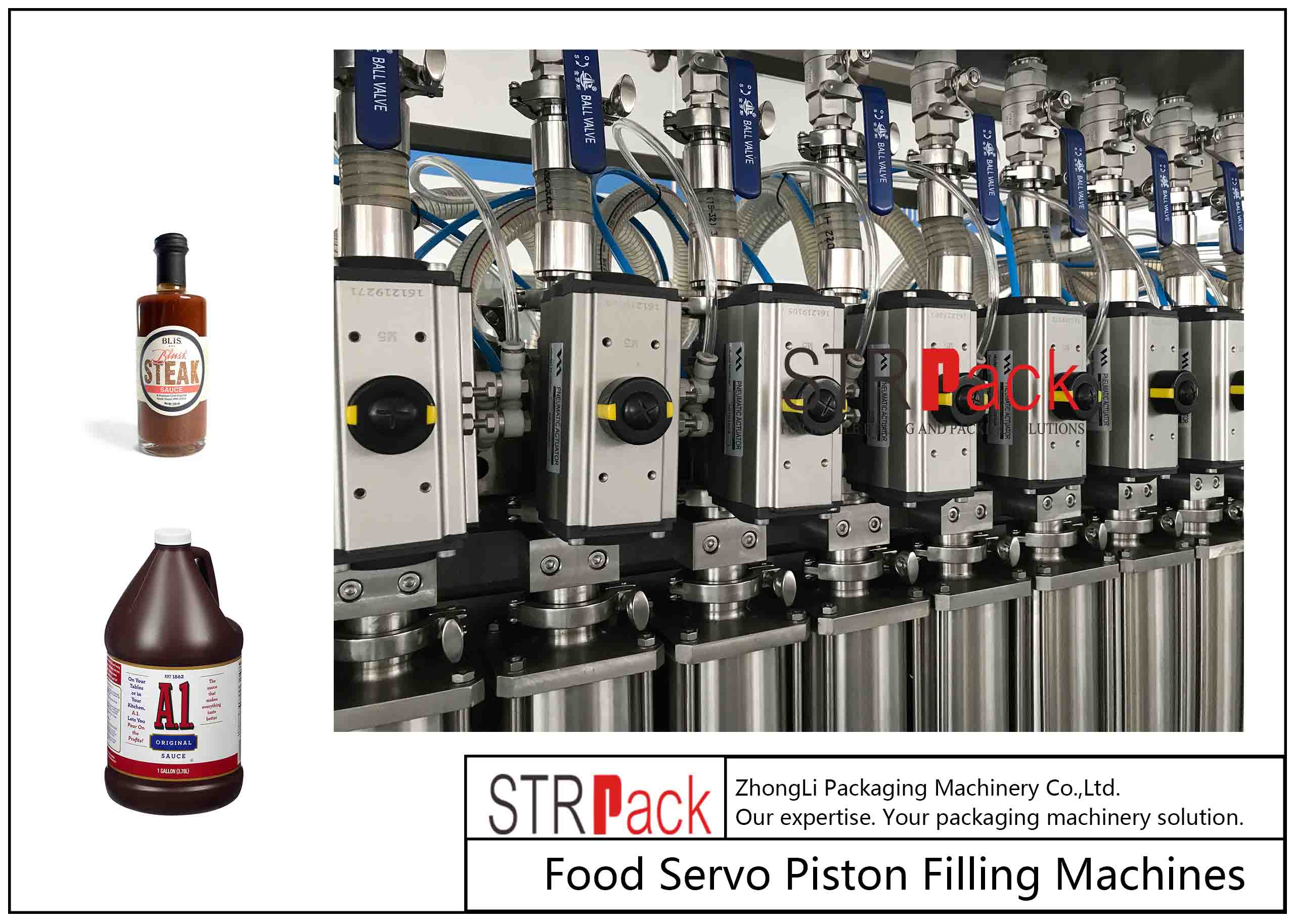

Measuring cylinder:
The function of measuring cylinder cylinder is mainly quantitative
filling, its use can make your filling accuracy higher, driven by
servo motor, control the movement of the piston rod, the Piston
moving down extract the material from the material cylinder to the
measuring cylinder cylinder, and then the piston moves up to the
dose of the cylinder cylinder in the material to the filling
pipeline.
Heat preservation device is added outside the measuring cylinder,
especially suitable for some materials that need high temperature
filling.
(The size of dose cylinder can be customized according to your
needs)
Technical parameter:
| Applicable Spece | 50~1000g |
| Production Ability | 2000-2500 Bottles/Hour |
| Filling Error | Acuities ± 2% Standard Outfit Quantity |
| Power | 4.5kw |
| Requirements Compressed Air Pressure | 0.4-0.6 Mpa |
| Speed Control | Frequency Control |
| LAN Noise | 50dB Acuities |
| Machine Weight | About 600Kg |
| Machine Dimension | 2400×1200×2300 (mm) |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will
be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and
debugging machines. Engineer's round-trip tickets, accommodation,
and your side traveling fee will be charged by you.
We can also supply training process for your engineers who come to
china, so you can fit and debug machines by yourself.
