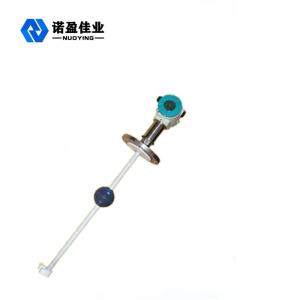

    High Stability Float Ball Magnetic Level Gauge For Liquid Measurement

    Ask Lasest Price
    Brand Name : NUOYINGJIAYE
    Model Number : NYCFQ-UK
    Certification : CE
    Price : $400~$500/pc
    Payment Terms : T/T
    Supply Ability : 1000 pcs/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    High Stability Float Ball Magnetic Level Gauge For Liquid Measurement

    High Stability Magnetic Float Ball Level Gauge For Liquid Measurement



    Working Principle of Magnetic Float Ball Level Gauge


    The level gauge is installed with one or more dry reeds in the closed non-magnetic tube, and then passes the tube through one or more hollow floating balls with ring magnets inside. The ring-shaped magnetic float will drive the floating balls to move up and down along with the rise or fall of the liquid, so that the dry reeds in the non-magnetic tube will be attracted or disconnected, and the resistance signal corresponding to the liquid level will be output and converted into a 4-20mA standard signal output, It can also send a contact on (off) conversion signal.


    Design feature of Magnetic Float Ball Level Gauge


    ◎ Multiple probe forms, suitable for various complex working conditions

    ◎ different floating ball materials can be selected according to different medium density

    ◎ customized design, multi-point control, wide application range

    ◎ stable and reliable performance, strong lightning protection and interference resistance

    simple structure, easy installation and low maintenance cost

    Technical parameters of Magnetic Float Ball Level Gauge

    Typical applicationLiquid

    product model

    NYCFQ-UK
    Float materialF4,PP,304,PTFE (selectable)
    Probe rod length200~6000mm (can be customized)
    ambient temperature-40~ 80℃
    Process Temperature-40~+ 130℃
    Process Pressure-0.1~2.0 Mpa
    Process connectionbracket,flange (selectable)
    Medium viscosity≤0.05 Pa.S
    Medium density0.5~2.0g/ cm3
    levels of protectionIP65,IP67,IP68 (selectable)
    Explosion-proof gradeExd II CT6 Gb (See certificate for details)

    ※Note:The product can be customized according to the specific requirements of users.
