HG50 Precision Tube Mill for High Speed Carbon Steel Forming

    Buy cheap HG50 Precision Tube Mill for High Speed Carbon Steel Forming from wholesalers

    Buy cheap HG50 Precision Tube Mill for High Speed Carbon Steel Forming from wholesalers
    • Buy cheap HG50 Precision Tube Mill for High Speed Carbon Steel Forming from wholesalers
    • Buy cheap HG50 Precision Tube Mill for High Speed Carbon Steel Forming from wholesalers
    • Buy cheap HG50 Precision Tube Mill for High Speed Carbon Steel Forming from wholesalers

    HG50 Precision Tube Mill for High Speed Carbon Steel Forming

    Ask Lasest Price
    Brand Name : TENGTIAN
    Model Number : HG 50
    Certification : CE ISO9000 BV
    Payment Terms : L/C,D/A,D/P,T/T
    Supply Ability : 5 set/year
    Delivery Time : 100 wording days
    Price : $100000 to $1 million
    • Product Details
    • Company Profile

    HG50 Precision Tube Mill for High Speed Carbon Steel Forming

    HG 50 High Speed Carbon Steel Tube Forming Machine Precision Tube Mill

    I.Equipment Introduction

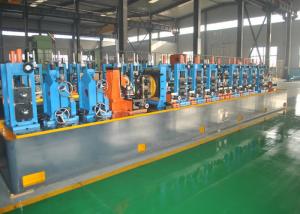

    HG50 high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.


    Round pipe size: 12.7-53 mm Square tube size:10×10-41×41 mm Pipe thickness: 0.6-2.0 mm


    II.Main Parameters and Specifications:


    Pipe materialLow carbon steel and low alloy constructional steel

    OD of coil

    Φ 1800 mm

    ID of coil

    Φ 508 mm

    Thickness of strip

    0 . 6 - 2 . 0 mm

    Weight of strip

    Max 2.5 Ton

    Strip width

    40 - 164mm

    Welding thickness

    0 . 6 - 2 . 0 mm

    Length

    4 - 6 m

    Forming speed

    40 - 120 m / min


    III.Working Process:

    strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

    IV.Quality and After-sale Service Warranty


    Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.
