Automatic Coil Winding Machine for AC Motor Induction Motor
This machine mainly used for the 2 poles stator’s winding. One
stator will be winded in each cycle, greatly improving production
efficiency, automatic loading and removing mould, to reduce
artificial labor intensity. Winding process can realize tapping(5
times), clamping functions, the stroke and pivot angle of fly fork
lever stroke can be adjusted within a certain range according to
need. Total aluminum alloy(anodic oxidation treatment) frame with
imported acrylic protection. Electric is mainly controlled by PLC,
displayer, and frequency converter. Safe and reliable setting,
display.
Machine main function and characteristic
The electric motor coil winding machine is a double-station automatic vertical winding machine, The
turntable is two stations structure. It adopts servo system to
rotate and index transfer form.

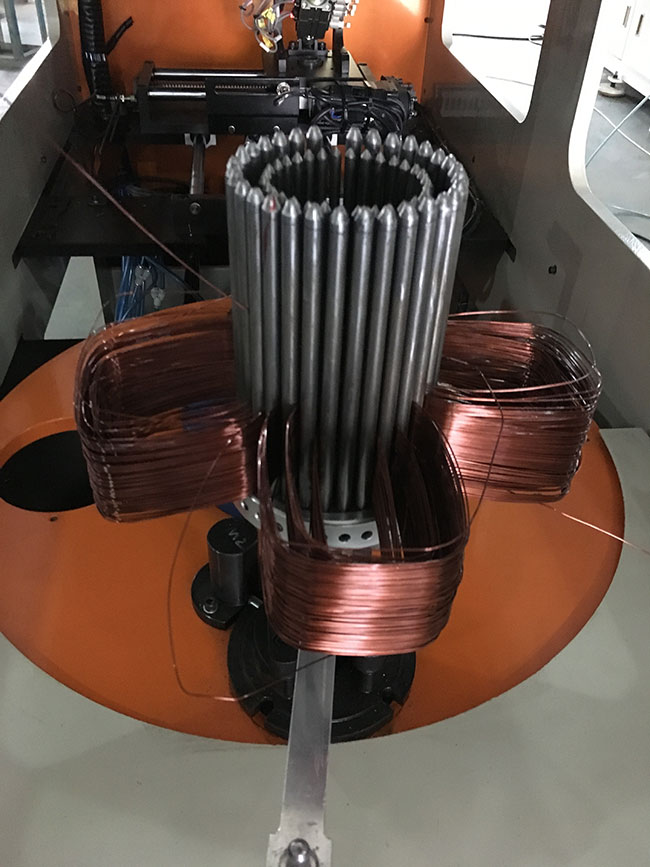

Able to exactly wind coils onto the forklike flywheel and easily
transfer the coil to coil inserter, with high efficiency and great
inserting winding effect.
Each coil winding machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
Main spindle is controlled by servo motor. The coil turn number
accuracy is ±1 turn.
PLC can set turn number, winding speed, tooling sunk height,
tooling sunk speed and winding direction.
X and Y spindle of wire hooker and wire cutter adopts servo system.
It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling
sunk is 6.
Allow two wires winding simultaneously.
And it is endowed with the display function of dynamic turns,
actual turns, set turns, failure causes and position self-check.
Free of enamel damage and wire snap. Once the copper wire is run
out, machine will automatically stop.
The automatic coil winding Machine has no distinct vibration and noise.
(1) Main Technical Data
| Model | LR150 |
| Winding Head | 1pc |
| Wire Diameter | 0.3-1.0mm |
| Stack height | ≤150mm |
| Unload speed | ≤2000r/min |
| Winding precision | ±0turn |
| Air pressure | ≥0.6MPa |
| Power supply | 380V/50/60Hz 8Kw |
| MOQ | 1set Automatic Coil Winding Machine |
| Certification | ISO9001:2008;SGS |
(2) Application
This machine is suitable for 2 poles, 4 poles and 6poles coils
winding.
(3) Machine main function and characteristic
Winding tooling: each machine has one set winding tooling and three
vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to
rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number
accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct
vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run
out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height,
tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system.
It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling
sunk is 6.
(4) OEM/ODM Profile
Taking full advantage of experienced engineers, skillful
professionals, perfect equipment, strict manufacturing process
control and wide coverage service net-work, we are dedicated to
provide our customers with the optimized solution to electric motor
manufacturing. So far, except the big market share in China, we
export out machines to the worldwide countries such as USA, Italy,
Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran,
etc, and our machines share the great reputation among customers
for it durable, reliable performance, reasonable price and good
after-service.
(5) Production Line Profile
With good service, professional team and reliable quality, SMT
provide customer with different kinds of AC motor, DC motor,BLDC
motor manufacturing technical consulting service and Turn-key
projecting service, including the motor cost evaluation,
manufacturing know-how, staff training,and complete turn-key
project.
