Computer Control Universal Testing Machine Compression Test 5000KN
10000KN
Application:
Microcomputer controlled electro-hydraulic servo horizontal testing
machine is a kind of suitable for chain, rope, wire rope,
electrical accessories tensile test, fracture test, cycle test,
tensile test, elongation measurement of special high precision test
equipment. The equipment can realize automatic operation and
complete the test automatically by computer software. The device
adopts load sensor and spherical centering device, which is
composed of thrust cylinder, frame and lifting platform. The
equipment is driven by special power hydraulic source,
electro-hydraulic servo control technology, computer data
acquisition and processing, which can realize automatic closed-loop

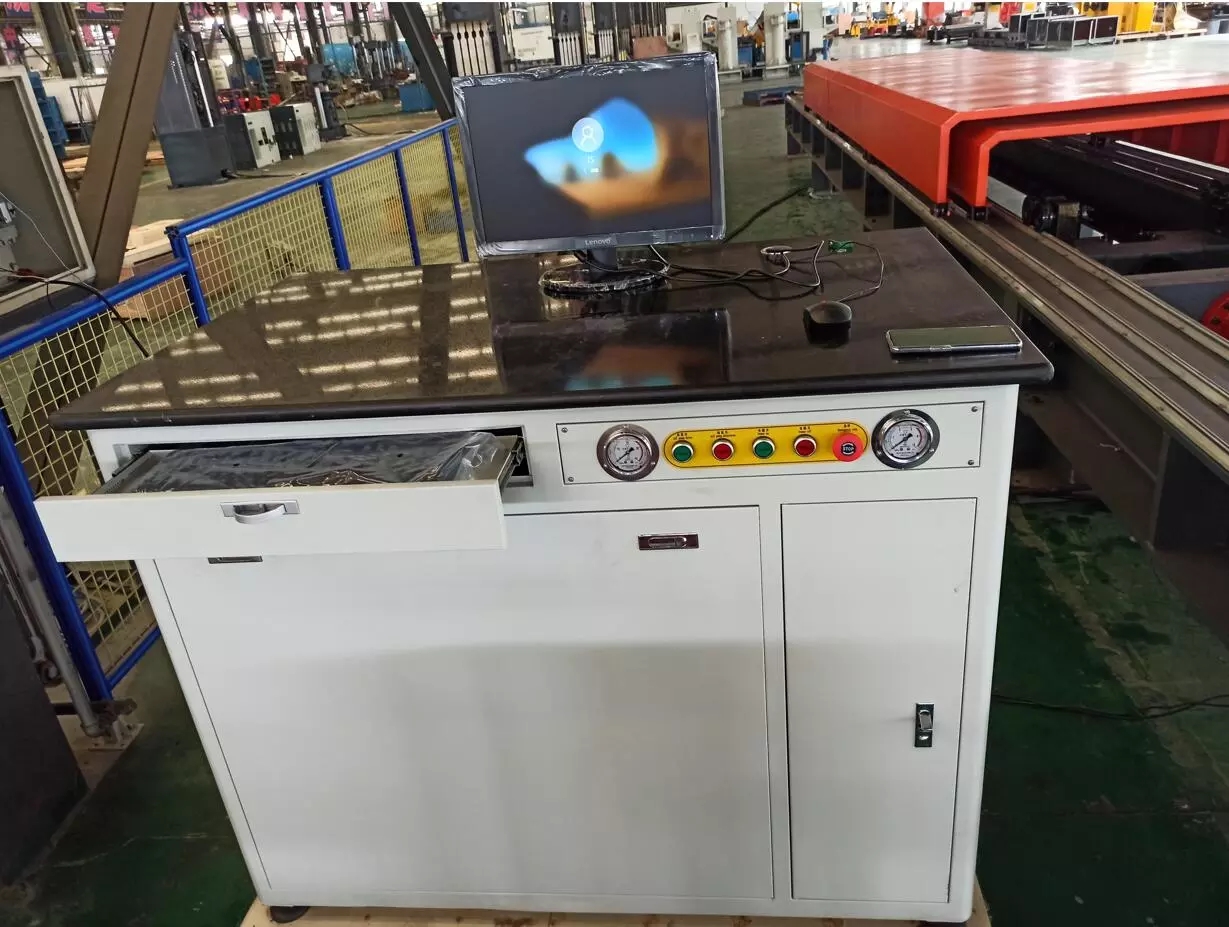

control. The equipment consists of test host, oil source system
(hydraulic power source), measurement and control system,
Introduction to Main Structure:
The main engine adopts horizontal frame structure, the cylinder
stroke is 2000mm, the maximum test space is 9000mm. The two beams,
the fixed beam and the thrust beam with drawing fixture are made of
steel plate. The trusses are welded by thick steel plates and
machined on horizontal machining centers. All auxiliary tools are
finished by heat treatment of alloy steel. The overall design
bearing capacity of the frame structure is 5000kN, which ensures
the accuracy, stability and reliability of the testing machine.
The tension test space is adjusted by moving the remote beam back
and forth. For electric remote control, the beam movement can be
controlled by close micromotion to make the positioning more
accurate. At the same time, there is no need for manual push, which
is fast and labor-saving. The ends of the bolts are vertically
inserted into the guide rail and the remote beam by manual
assistance. The bolt operation realizes the beam positioning and
completes the space adjustment of the testing machine. The 500mm
step adjustment is very convenient.
The main machine adopts high precision load sensor, which has high
comprehensive accuracy, high sensitivity and good repeatability.
After random calibration, the test is not affected by external
forces, which can ensure the accuracy of the test process and
parameters. The calibration is simple and convenient.
The whole machine design in the beautiful, convenient, safety and
other aspects have been fully considered. Such as:
Test space adjustment is convenient and fast; Special fixture
clamping reliable; All parts of the testing machine are treated
with strict anti-rust. The rod surface is plated with hard chromium
and polished with anti-rust to ensure the quality and beauty of the
equipment and satisfy customers.
Technical Parameters:
| MODEL | WAL-3000 |
| Maximum load | 3000kN |
| Structure | Single rod double-acting cylinder frame structure |
| Drive control mode | Computer controlled electro-hydraulic servo control |
| Test type | Tensile strength test / Loading hold test |
| Overload protection | 105% overload protection |
| Noise of the whole machine | no more than 70dB |
| Accuracy of load indication | better than ±1% of indicated value |
| Load resolution | 500000 yards, and the whole resolution remains unchanged |
| Load control accuracy | Class 1.0 (class 0.5 is optional) |
| Force value measuring range | 2%~100%F·S (the whole process is not divided into files) |
| Stress control accuracy | better than ±1% of the indicated value |
| Accuracy of displacement indication | better than ±0.5% of indication |
| Displacement resolution | 0.001mm |
| Displacement control accuracy (speed) | better than ±0.5% of the indicated value |
| Piston moving speed range | 0-100mm/min full load stepless speed regulation |
| Piston stroke | 500mm-1500mm |
| Maximum Tension space | 4000mm-30000mm |
| Tension space adjustment interval | 500mm |
| Tension space width (inner clear width) | 600mm |
| Height of the center of the Tension space | 600mm |
| Total motor power | 4.0 KW |
Customer Support Services:
1. Installation
2. Training (Training customer employees)
3. Calibration
4. Preventative maintenance
5. Replacement parts
6. Assistance via phone or internet
7. On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO
requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again
with the machine. Then do own factory calibration or third party
calibration(as customer requirements). Check and test all the
details and then arrange packing.
Deliver the products in confirmed shipping time and inform
customer.
