    Real Time Spectral Chart Portable Vibration Meter Printing Function For Industrial Fields

    Ask Lasest Price
    Brand Name : Huatec
    Model Number : HG-6380
    Certification : ISO CE GOST
    Price : USD 598~689 set
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 100 sets per month
    Delivery Time : 3~7 working days
    • Product Details
    • Company Profile

    Real Time Spectral Chart Portable Vibration Meter Printing Function For Industrial Fields

    Real -time Vibration Meter spectral chart Portable With printing function For Industrial Fields

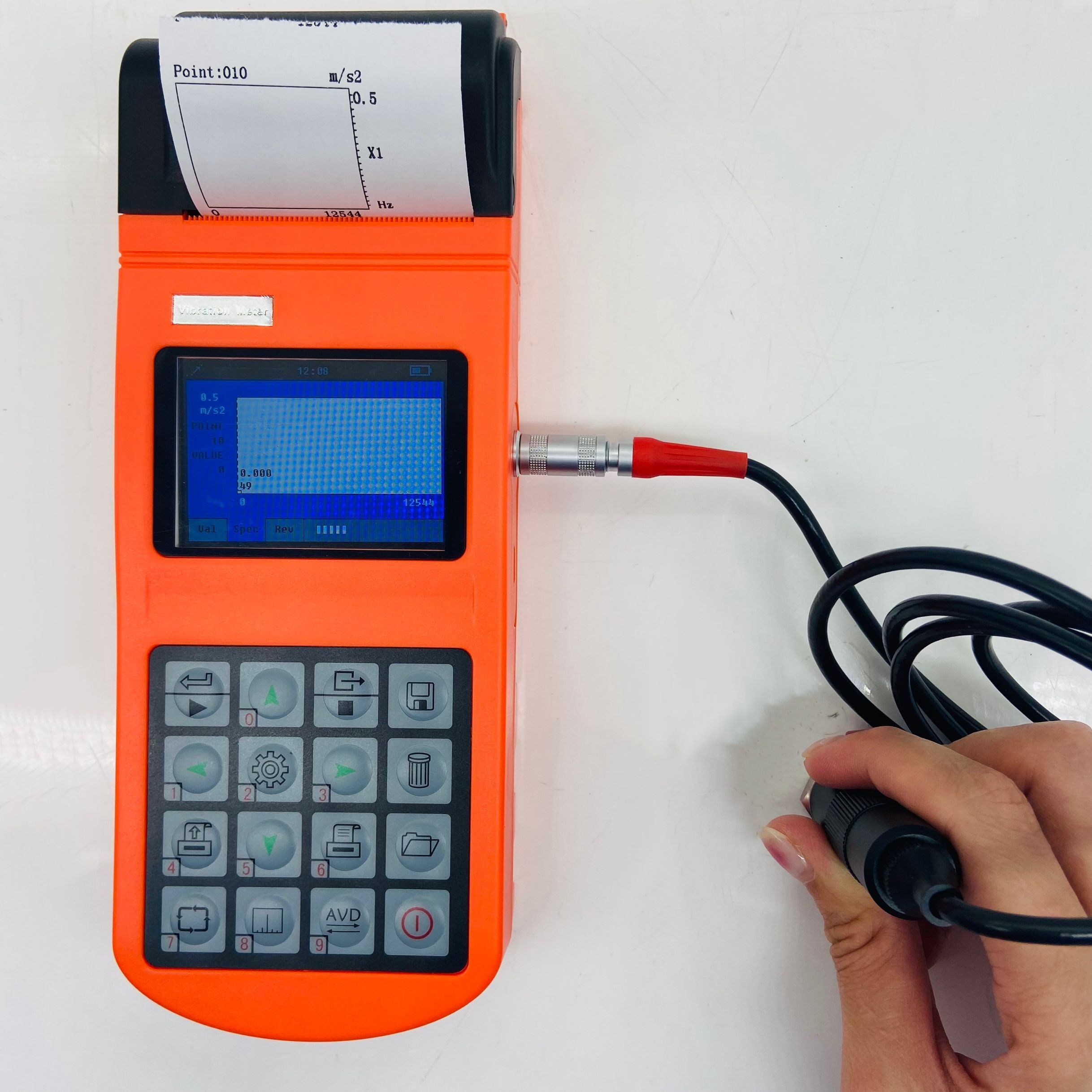

    HG-6380 uses piezoelectric acceleration transducer to convert vibration signal into electric signal. Results including RMS of velocity values, peak-peak value of displacement, peak values of acceleration or real-time spectral charts are displayed or printed out. It can not only measure the three parameters, but also rotational speed. The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can test the acceleration, velocity, and displacement of vibration as well as rev (or inherent

    frequency), also perform simple failure diagnosis. The technical specifications of HG-6380 comply with the requirements of GB 13823.3. HG-6380 is widely used in machinery, power, metallurgy, automobile and other industrial fields.


    Specifications:


    Model nameHG-6380
    Testing range
    (Metric)
    Acce: 0.1 ~ 205.6 m/s2
    (peak)
    Velo: 0.1 ~ 400.0 mm/s(RMS)
    Disp: 0.001 ~ 9.0 mm(peak-peak)
    Testing range
    (Imperial)
    Acce: 0.01 ~ 22.00 g(peak)
    Velo: 0.01 ~ 15.75 in/s(RMS)
    Disp: 0.1 ~ 356.3 mil(peak-peak)
    Freq rangeAcceleration: 10Hz ~ 200Hz, 10Hz ~ 500Hz,10Hz ~ 1KHz, 10Hz ~
    10KHz
    Velocity: 10Hz ~ 1KHz
    Displacement: 10Hz ~ 500Hz
    Frequency
    resolution
    0.25Hz
    Data memory100 × 80 pieces of data and
    100 spectrums
    SoftwareYes
    Temp0℃ ~ 40℃
    Tolerance±5%
    Speed
    measuring range
    30 ~ 300000 rpm
    corresponding to 0.5 ~ 5000Hz
    Measuring
    distance
    0.15 ~ 1m
    DisplayTFT
    320×200 pixels with RGB
    Data interfaceUSB
    Overall
    dimensions
    212×80×35
    PrinterIntegrated thermal
    Weight320g
    BatteryRechargeable Li battery,1500mAh
    Continuous
    working time

    About 50h

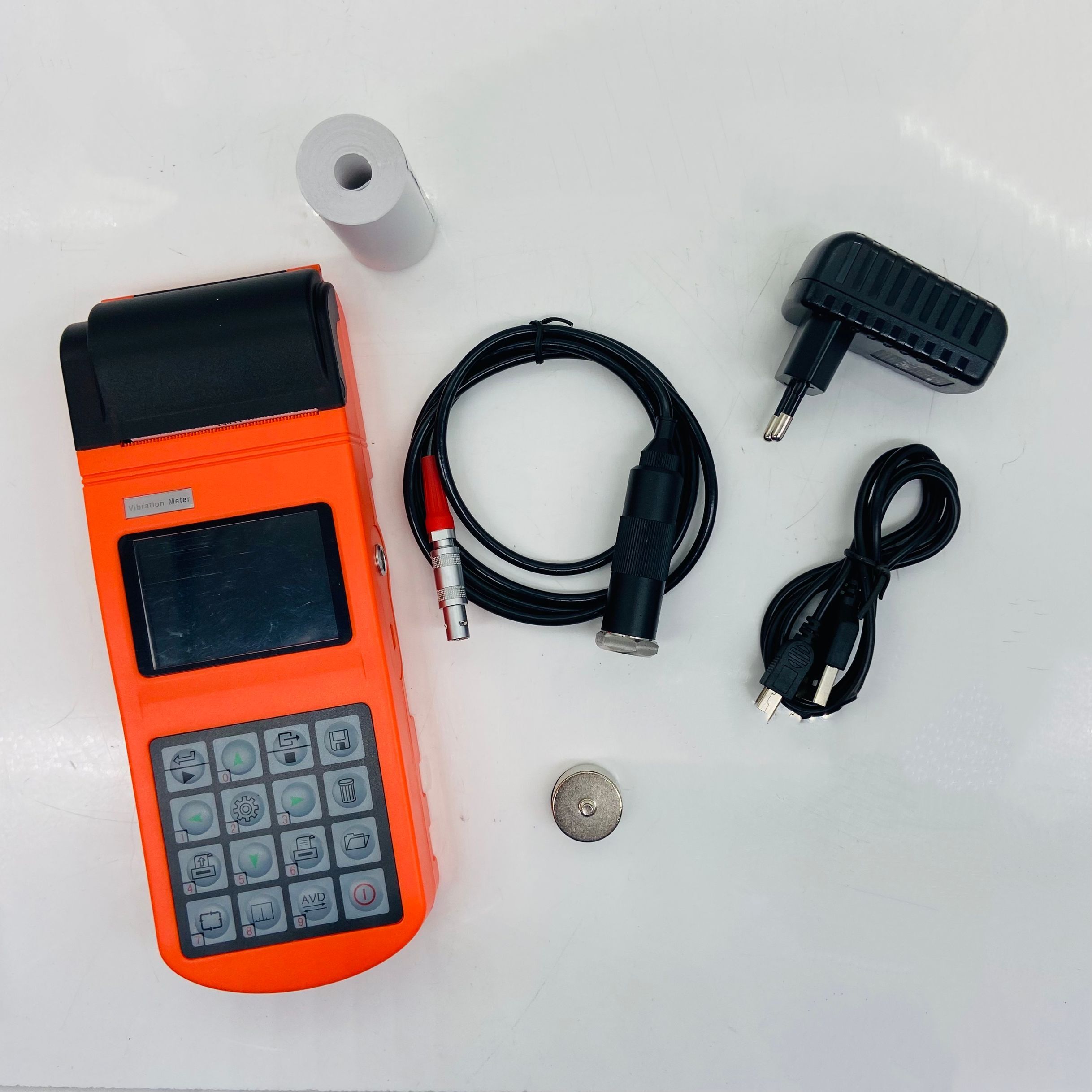

    Standard delivery
    Main unit. 1pc
    Power Adapters (input:220V/50Hz, output:9V/1000mA) 1pc
    Power Adapters (input:110V/50Hz,output:9V/1000mA) 1pc
    Piezoelectric sensors 1pc
    Magnetic seat (with 2 bolts) 1pc
    Manual 1pc Package case 1pc
    Optional accessories
    Speed transducer (Lacer)
    PC Software
    Communication cable
    Probe
