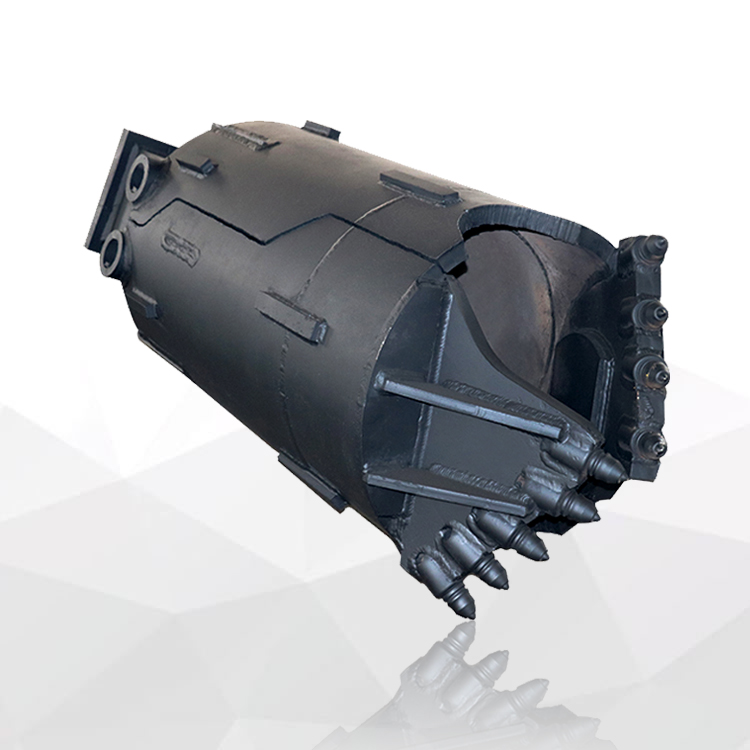

High Standard Quality Drilling Rig Tools Open-type Bottom Rock
Drilling Buckets
Product Description
Large inlet of soil, open shell design, easy to dump spoil so
increases the drilling efficiency；
Super strength structure for shell, guide plate, etc, increase the
life cycle of bucket;
Guide strips arranged on the surface of bucket can avoid drilling
tool sucked by the pressure；
Applicable layers: clay layer, silt layer, strongly weathered rock
layer.
We are commit to the design and development of foundation drilling
piling machine:
Drilling tools, Drilling teeth ,Casing Series, Kelly bar,
Accessories
Customizable items:
Cutting diameter customization: according to customer demand design
cutting diameter, such as φ950, φ1050, etc. with the casing
construction use mostly ;
Tooth type customization: different tooth types can be installed
according to customers' requirements, such as cut-off teeth, FZ80,
FZ72, V20, 22S, etc.
| Technical Specification of Drilling Buckets with open type bucket |
| drilling Dia. | Shell HIT. | Shell Thickness | Teeth.No. | Weight |
| (mm) | (mm) | (mm) | (number) | (kg) |
| 600 | 1000 | 30 | 7 | 805 |
| 800 | 1200 | 30 | 9 | 1238 |
| 900 | 1200 | 30 | 10 | 1500 |
| 1000 | 1200 | 30 | 11 | 1700 |
| 1200 | 1200 | 30 | 13 | 2140 |
Product Details
FAQ
1: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
2: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic
Arm, drilling tools
3: What's your service ?
We can offer professional technical support and good after-sale
service to you.
Modification methods will be different according to different
models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and
hydraulic joints and others.
Before modifying, you need to confirm technical specification.
