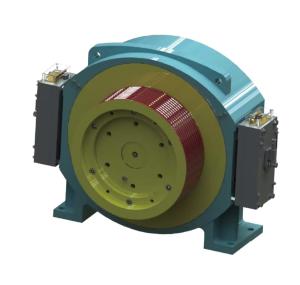

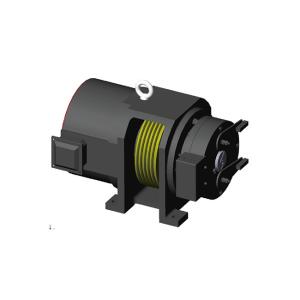

Elevator permanent magnet synchronous gearless traction machine for
elevator
Using the permanent magnet synchronous gearless traction machine as
the power source, it is small in size and compact in structure,
which can meet the design requirements of small machine room and
provide more free design space for architectural design.
MODEL RECOMMENDED FORM
| Elv. Load(kg) | Elv. Speed(m/s) |
| 0.4 | 0.05 | 0.63 | 1.0 | 1.5 | 1.6 | 1.75 | 2.0 | 2.5 | 3.0 |
| 320-450 | CHW200 CHW200A CHW100 CHW87 | | | | | | |
| 630 | | CHW320 CHW400 | | | | | |
| 800- 1150 | | CHW320 CHW400 | |
| 1350- 1600 | | CHW400L | |
| 2000- 3000 | | CHW450 |
SPEC.SHEET
| Type | Roping | Elv Load | ElvSpeed | Sheave Dia | Sheave Groov | Voltage | Current | Power | Speed | Freq | Torque | Poles | UndercutAngle |
| | kg | m/s | mm | | V | A | KW | r/min | HZ | N.m | | . |
| CHW200A-320-040A | 2:1 | 320 | 0.4 | 200 | 3XФ8x12 | 220 | 4 | 0..9 | 76 | 10.1 | 110 | 16 | 90 |
| 380 | 2 |
| CHW200A-400-040A | 2:1 | 400 | 0.4 | 200 | 4XФ8x12 | 220 | 5 | 1.1 | 76 | 10.1 | 140 | 16 |
| 380 | 3 |
| CHW200A-450-040A | 2:1 | 450 | 0.4 | 200 | 4XФ8x12 | 220 | 6 | 1.2 | 76 | 10.1 | 150 | 16 |
| 380 | 4 |
| CHW200A-320-040B | 2:1 | 320 | 0.4 | 240 | 3XФ8x12 | 220 | 5 | 0.9 | 64 | 8.5 | 130 | 16 |
| 380 | 3 |
| CHW200A-400-040B | 2:1 | 400 | 0.4 | 240 | 4XФ8x12 | 220 | 6 | 1.1 | 64 | 8.5 | 160 | 16 |
| 380 | 4 |
| CHW200A-450-040B | 2:1 | 450 | 0.4 | 240 | 4XФ8x12 | 220 | 7 | 1.2 | 64 | 8.5 | 180 | 16 |
| 380 | 5 |
REMARK
The machine can also be used for machine roomless
The above is recommended value of cut angleit's optional according
to practical condition
We offer a contactless button, push button, COP, LOP , hall lantern
, segment ,dot matrix , LCD and TFT displays etc.
Shanghai Zan Feng (CZANF) Technology Co., Ltd provides the
customized service and solutions for elevator electrical system and specializes in elevator components. The
product scope ranges from contactless button, push button, COP, LOP , hall lantern , segment ,dot matrix , LCD
and TFT displays , hoistway fixture , intercom system , traveling cables to other spare parts of
elevator.
We pursue the sustainable success with customers. When it comes to
Elevator components, we are about as materials as they come. That’s
because we are in the elevator components many years with very wide
supply system. We are more committed to the intelligent development
of elevators in the near future and becoming the preferred partner
for smart and sustainable city development.
FAQ
1. What can I get the quotation?
Within 24 hours the inquiry will be reply.If you are very urgent
the price,
pls call us or tell us your email so that we will regard your
inquiry priority.
2. How can i get a sample to check your quality?
Provide our existing sample to check our quality,the shipping cost
need to paid by you.After price confirmation,you can
require for samples to check our quality,but sample cost need to
paid by you.the sample cost can be refundable if you bulk order
quantity reach our request.
3. What kind of files do you accept for printing?
PDF, Adoble Illustrator, CDR
4. Can you do the design for us?
Yes. We have a professional designing team,just tell us your
details and we will help to carry out your idrars into perfect
products.it's also ok if you do not have the complete files.Sent us
high resolution images,we can design the layout you want.
If you send your LOGO to us,we will make the artwork for you
reference.
Should you have any question ,pls do not hesitate to contact me.
