Big ditcher machine hydraulic piston pumps quality assurance

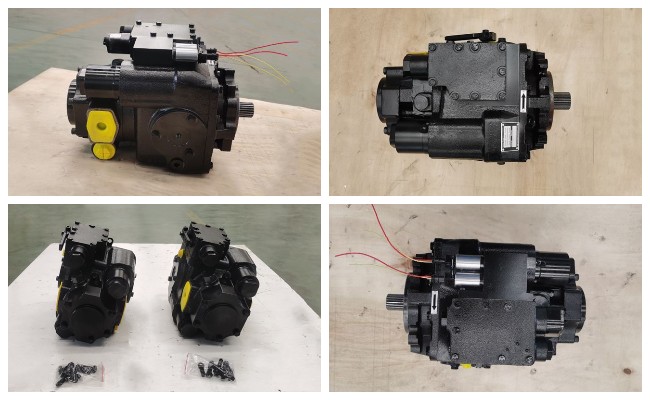

Hydraulic piston pumps basic information:
Hydraulic piston pump is an important device in the hydraulic
system. It relies on the reciprocating motion of the plunger in the
cylinder body to change the volume of the sealed working chamber to
achieve oil absorption and oil pressure. Plunger pumps have the
advantages of high rated pressure, compact structure, high
efficiency and convenient flow adjustment. They are widely used in
occasions where high pressure, large flow and flow need to be
adjusted.
Hydraulic piston pumps features:
Axial Piston Variable Displacement Pumps are well engineered and
easy to handle.
Bearings of Variable Axial Piston Pumps are all tapered roller
bearing, which can load heavy external axial forces.
Hydraulic pumps can be connected with other additional pumps.
When Hydraulic pumps operated mechanically, the Servo displacement
can control and keep the angle of swash plate and pump
displacement.
Upon release of the control handle, swash plate return to zero
position automatically and the flow reduces to zero.
Hydraulic pumps has shaft oil seals performance, even at the lowest
temperature and high case pressure.
Servo valve of piston pump can connect function regulators and
remote control systems.
Axial piston pumps can easy maintain and can be disassembled and
assembled by standard tools. All components are replaceable.
Hydraulic piston pumps technical specification:
HPV Series Technical parameter |
HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
Rated speed | r/min | 2500 |
Min continuous working speed | r/min | 500 |
Pressure | Rated working pressure | Mpa | 35 |
Max working pressure (transient) | Mpa | 42 |
Continuous working pressure | Mpa | 30 |
Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
Temperature | Allowable shell temperature | ℃ | 80 |
Max working temperature of oil tank | ℃ | 70 |
weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
HPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Hydraulic piston pumps usage:
Piston pumps are widely used in high-pressure, high-flow,
high-power systems and occasions where the flow needs to be
adjusted, such as agricultural machinery, construction machinery,
mining and metallurgical machinery, and ships. It can play an
important role.
FAQ of hydraulic piston pumps:
Q1: Could I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and
sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report
can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic piston
pumps.
20 years experience in hydraulic industry for oversea and domestic
markets. Main business range is hydraulic motor pump system, piston
pumps and motors, welcome to visit our factory in Dezhou city
Shandong province.
