Automatic Rubber Molding Pressing Machine Hydraulic Valcanizing Silicone Compression

Automatic Rubber molding pressing Machine Hydraulic Valcanizing Silicone Compression

buy rubber press machine,hydraulic vacumm silicone molding press, rubber vulcanizing compression machine

Features of rubber hydraulic vulcanizing press:
The rubber blank is not pre-placed in the mold cavity, but the plastic material is injected into the mold cavity
(2) The degree of automation is high, and the entry and exit of the mold do not depend on manual operation
(3) Less flash, which helps to reduce glue consumption and cost
(4) High temperature (160~190℃) vulcanization is adopted, and the whole process from injection to demoulding

takes only one minute.Therefore, rubber injection molding combines many advantages such as good finished

product appearance, high dimensional accuracy,high production efficiency and less waste rubber.

According to the different injection mechanisms, rubber injection presses can be divided into three types: screw

type,plunger type and screw/plunger compound type. The injection force of the screw type is too small and is not

suitablefor high viscosity rubber. Although the injection force of the plunger type is large, it cannot play the role

of supplementaryprocessing of stirring and mixing, and it is not ideal. The screw/plunger compound can combine

the strengths of the two and has become the mainstream structure of
rubber injection presses.

structure of vacuum rubber vulcanizing machine:
1) The injection device consists of a screw, a barrel, a reciprocating advance and retreat device and a nozzle.
2) The heating/cooling device is used to control the glue temperature in the barrel and the vulcanization

temperature of the press.
3) Transmission and electrical system.

200T rubber silicone plate pressing moulding machine use:
The flat vulcanizing compression machine is suitable for the vulcanization of various rubber products,

and is an advanced hot pressing equipment for pressing and forming various thermosetting plastics.

The flat vulcanizer has two heating types,steam and electricity, mainly composed of three parts: main engine,

hydraulic system, and electric control system.The oil tank is installed on the left side of the main engine alone,

and is not affected by the temperature of the hot plate;the operating valve is installed on the left side of the main

engine, and the workers Easy to operate and visually spacious.

Parameter of automatic powder press machine:

Vulcanizing compression machine function:
1. PLC, touch screen control, can realize manual and automatic control; can realize automatic mold clamping,
automatic exhaust, automatic pressure supplement, automatic temperature control, vulcanization timing, alarm
and automatic mold opening and other functions; the touch screen displays and controls the hot plate in time
temperature of each heating zone.
2. The hydraulic cylinder is made of QT500-7 material, and the plunger is made of chilled hard alloy cast iron
with dense texture, which is finely ground after casting; the hydraulic cylinder is sealed with a Y-shaped sealing ring.
3. Hydraulic automatic top iron is used on the pot side of the hot plate. Under the action of multiple oil cylinders,
the horns on both sides of the hot plate advance and retreat at the same time; the two ends of the hot plate are
provided with anti-pillar iron overlapping devices.
4. Each heating zone of the hot plate is equipped with a set of valve groups to adjust the temperature.
Under the control of PLC, the temperature of each heating zone of the hot plate is guaranteed to be uniform.

Work Environment for automatic compactting press :
Environment temperature 5℃-35℃
Humidity: relative humidity ≤95%
Power supply voltage: 380V ± 10%
Compressed air pressure: 0.55-0.65MPa
Hoist ≥3t (only used for lift tool adaptor, not for install press)

Packing & shipping:

PVC film covered hydraulic press

Whole machine fixed in the container with steel rope,very safe

Wooden case or pallet or iron box

If have stock,can provide right now

If no stock,small machine delivery time 7-15days.Big machine delivery time 25-40days.

Can give destination port best price or cost to the customer factory

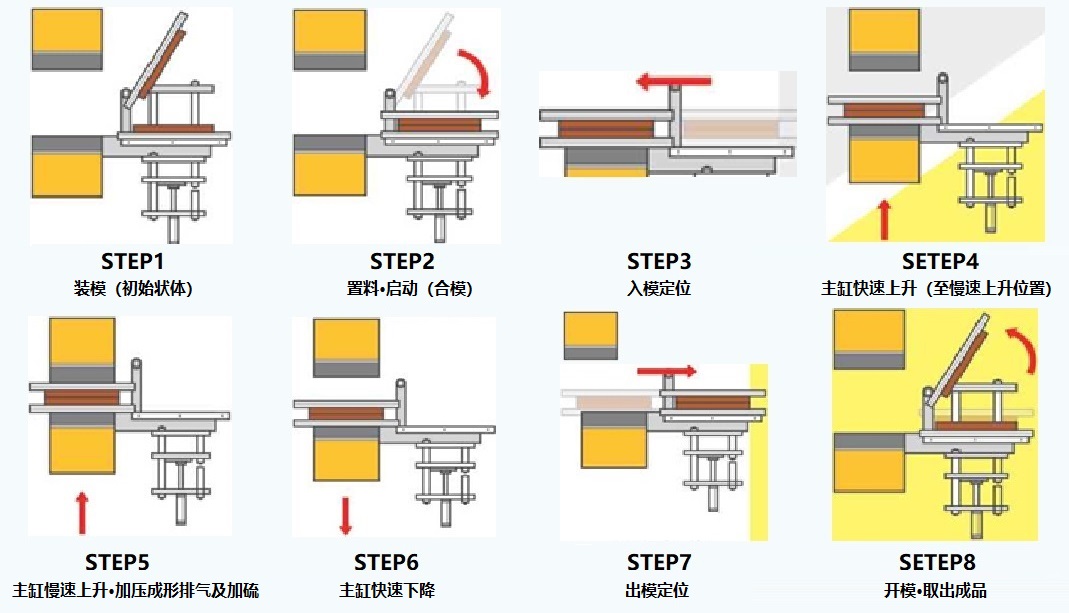

molding open method of hot rubber vertical silicone pressing machine:

WUXI JINQIU MACHINERY CO.,LTD was founded in June 1969. it is located in No.99Qianluo road

Qianqiao town Huishan district Wuxi city. It is at Wuxi Vocation park. It mainly produces hydraulic press brake,

hydraulic shear, CNC sheet V grooving machine, allotype surface quick forming machine, CNC hydraulic turret

punching machine and other series products. It is one of the backbone enterprises in the domestic forging

industry with 40 years’ history.

The company covers an area of 62000 square meters with over 50000 square meters construction area.

It have advanced production equipments with imported large CNC gantry milling machine, imported large

CNC boring and milling machine, 100T carriageway and a series of iconic devices.

Company’s excellent design team can make personalized products according to the user’s demands which

to maximize customer value and optimize customer cost performance. Meanwhile, the company have always

stood in the forefront of technological innovation, continued to explore the “JQ”brand products widely and deeply,

and also attached great importance to the research cooperation. it has established long-term cooperative relations

with Jiangnan university, Nanjing university of Aeronautics and Astronautics, Jiangsu university, and also has set up

long-term stable cooperative relationship with the word’s leading multinational companies. Our hydraulic press brake

and shear machine have formed serialization

To met the customer’s different requirements.

Especially since 2002, the company has continued to increase investment in science and technology, our innovation

ability improves yearly through research staff’s innovation and hard work. We has received dozens of national invention

patents and utility model patents, won the provincial high tech enterprise in 2007, and obtained the innovation and reward

fund support from the national ministry of science and technology in 2011.

The company always adhere to quality system has access to the export product quality permit ISO 9000 international quality

system certification CE certification.

We sincerely hope to establish a close cooperation with domestic and foreign customers.

old factory area was founded since 1969 years that produced the hydraluic plate press brake mchine and hydraulic

sheet shearing machine

workshop view at old factory

we moved into new factory in 2008 years to process the CNC draulic press brake,CNC tandem press brake machine,

hydraulic shearing machine, CNC sheet V grooing machine,hydraulic iron worker, 3 roller plate rolling machine

and hydraulic press

machine body of plate press brake &shearing machine process workshop

parts machining workshop for hydraulic bending machine, hydraulic guillotine shear, sheet V groover

CNC press brake machines assembling workshop

workshop for producing the hydraluic sheet cutting machine

workshop use to assemble the CNC sheet V grooving machine

workshop use to assemble the heay press brake machine,light pole bending machine and CNC hydruilc tandem press brake

warehouse use to store the hydraulic swing beam shear and hydraulic guillotine shear

storeshouse use to store theNC press brake and CNC press brkae machine

our company hold the signing ceremony of sales tanks in second half of the year with all sales men on 2019. 6 30.

16x6300 shearing machine export to Vietnam
