Light Duty Type VFD Control Welding Manipulator With Monitor System
1000mm / min
Quick Detail:
- This is light duty type suitable for light duty work-piece welding;
- With three type structure: stationary, stationary and revolve,
moving and revolve;
- Equipped with SAW,TIG, MIG welding power source as customer’s
requirements;
- Ladder, operation chair and platform, motor cross-slider are our
standard configuration;
- Flux feeding and recycle system, welding tracer unit, monitor
system etc as option;
Description:
As auxiliary equipment for welding centre, this can do longitudinal
and transverse seam welding.
It can be selected different welding power according to customer’s
requirements. The retracting of cross boom adopts VFD speed control
and runs with a steady speed. The head is equipped with electric
cross-slides which can control the position of welding. There is
chain break-resistant and anti-slip device in the boom to guarantee
safety. A braking device can ensure column work in the safe
environment.
Applications:

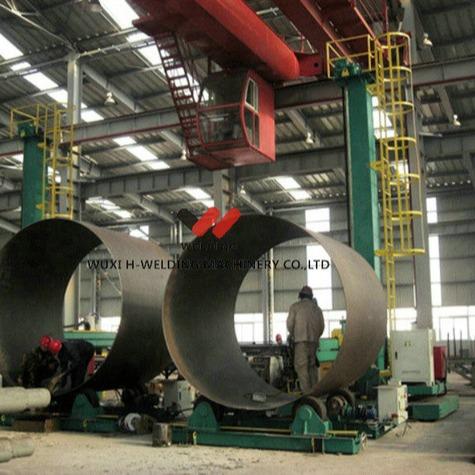

It used in many industries such as pipe, tank, pressure vessel,
boiler, freezing equipment, power station construction,
metallurgical, engineering machinery, marine building, and
petro-chemical industries etc.
Specifications:
Technical parameter | LHQ2020 | LHQ3030 | LHQ4040 |
Elevating stroke (mm) | 2000 | 3000 | 4000 |
Retracting stroke (mm) | 2000 | 3000 | 4000 |
Elevating speed (mm/min) | 1000 |
Retracting speed (mm/min) | 120-1200 |
Minimum distance between boom and track surface (mm) | 750(moving and revolve ) 680(fix and revolve) |
Boom end maximum weight loading (kg) | 80 |
Column revolving | Manual revolving locked by screw |
Trolley traveling | Manual traveling locked by screw |
Inner span of trolley rail (mm) | 1000 |
Competitive advantage:
1. Main electric elements are Siemens/Schneider.
2. VFD rotary speed control, improving the reliability of
operation.
3. Steel and rubber roller or PU roller which can ensure a long
time using.
4. With lubrication system.
5. Accept testing before delivery.
6. Accept special design and custom.
FAQ:
Why h-welding?
Because we work closely with manufactures to understand their needs
and provide the right machine solutions, accessories and
consumables to support business growth. We are committed to
providing each customer with the finest service and support
available. Reliability and quick response all backed by our fully
trained support staff and technical support center in H-WELDING.
HISTORY-
10 years focus on this industry, That means we know what works and
what does not when it comes to welding equipment.
QUALITY-
Our machines are built to stringent certification. There is NO
OTHER welding equipment built to higher standards than the
H-WELDING. Reputation is our life.
PACKAGE-
Professional container package team, ensure a prefect machine can
be send to your hand.
INSTALLATION AND COMMISSIONING-
A young but professional installation team, active all round the
world with our machine, like a your friend always at his service.
AFTER SERVICE-
Feedback with your problem or pictures, within 24hour, your will
get the answer.
