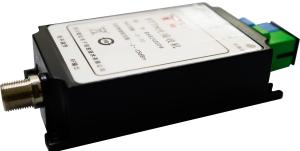

PP Housing Black WDM CATV Optical Receiver A22 123*93*27mm

Mini Economic Optical Receiver A22 Black with WDM

Mini Optical Receiver A22 Black with WDM

This item is one of the cheapest and economic sery of receivers.It is compatible for FTTH in regular distance with few residents.

Optical Features

• Wavelength(nm) 1310/1550
• Input Power Frequency(dBm) -15~0
• AGC Range (dBm) -12~-1
• AGC Control Precision (dB) ±2
• Return Loss (dB) ≥45
• Fiber Connector SC/APC

​

Remarks:60 (PA L-D) channels, input optical signal of -10dbm, level 3 EDFA in noise When the coefficient is 5dB, the transmission is 65km and OMI is 3.5%.

LINK Features

• CTB (dB) ≥60@-10dBm
• CSO (dB) ≥60@-10dBm
• CNR (dB) ≥40@-10dBm
