Hot Air Desiccant Honeycomb Rotor Dehumidifying Dryer Hopper For PET PA PEEK

Plastic PET PA PEEK Desiccant Honeycomb Rotor Dehumidifying Hopper Dryer ODD-H

Plastic Dryer, Dehumidifier, Dehumidifying Dryer, Industrial Dehumidifier, Industrial Dryer, Dry Air Dryer, Hot Air Dryer, Drying Machine

NAMING PRINCIPLE of TPU Dehumidifying Dryer

ODD-xxx/xxxH

① ② ③

① Orste Dehumidifying Dryer

② Hopper Capacity (L)

③ Dehumidifying Air Quantity (m³/hr), H: Honeycomb

FEATURES of TPU Dehumidifying Dryer

1. The ODD dehumidifying dryers use honeycomb dehumidifiers with an elegant semi-integral appearance.

2. Combines the two functions of dehumidifying and drying into one machine, occupy little space which ensures the whole arrange of the workshop.

3. Insulated drying hopper features dry air down-blowing and cyclone exhaust design. This improves drying efficiency and reduces energy consumption while maintaining a steady drying effect.

4. Compact in size for ease of movement.

5. Microprocessor is standard equipment, ensures convenient operation.

FUNCTIONAL SCHEME of TPU Dehumidifying Dryer

The sealed honeycomb rotor is divided into dehumidifying, regenerative and cooling zones in the rotary dehumidifier. Damp and hot air from dry material hopper is blown into rotor after cooled. Moisture from the air is absorbed by rotor and is then absorbed by regeneration heating air. Two strands of airflow function on the rotor. And with the rotation of the rotor, moisture from the air is absorbed and expelled after absorbed regeneration air to form stable low dew-point air, which is dries to the drying temperature and then is blown into drying hopper to closed circle to dry material.

PARAMETERS of TPU Dehumidifying Dryer

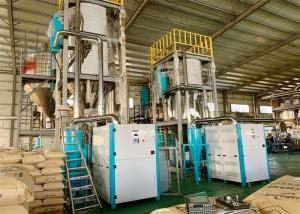

Application Cases of TPU Dehumidifying Dryer

FAQ

Q1: What kind of company are you? Trading company or manufacturer?
A: We are a manufacturing company with more than 12 years design and manufacturing experience in Dongguan, Guangdong Province, China.

Q2: How long is the delivery time?
A: 7-30 days after order confirmed. Based on the actual requirement.

Q3: What's the MOQ?
A: 1 set per order.

Q4: What is your terms of payment?
A: For order amount ≤ 2000 USD, 100% in advance; For order amount ≥ 2000 USD, T/T 50% as order, balance 50% T/T before shipping. We will show you the pictures and videos of the machines for the order.

Q5: What are the trading terms?
A: EXW, FOB and CIF.

Q6: Can you do OEM?
A: Yes, OEM and ODM service are provided.

Q7: Do you test all your machines before packing and delivery?
A: Yes, we haved tested all our machines well before delivery.

Q8: How to provide the after-sales service?
A: 1st, our machines are manufactured in strict quality control system to make sure there is few faulties occur after installation, but if any faulty, we can send new spare parts for free in 12 months warranty time.
2nd, our technician will periodically follow up customer to help to do maintenance and ensure equipment operation 7/24 be guaranteed.

3rd, we have over 30 3rd-party cooperation agents or service centers around the world to proivde in-time after-sales service for the customers nearby.

Q9: How can get the shipping cost?
A: We can calculate the shipping cost for you if you provide us your destination port.
