    Central Vacuum Auto Loader Conveyor Feeder OAL-3S-122 For Plastic Pellets

    Ask Lasest Price
    Brand Name : ORSTE
    Model Number : OAL-3S-122 ~ OAL-7.5S-1212
    Price : 3,200~4,800USD/Set
    Delivery Time : 7-15 days
    Payment Terms : TT, LC, Paypal, West Union, Cash
    Supply Ability : 500-3000 Sets / Year
    Certification : CE, ISO, SGS
    • Product Details
    • Company Profile

    Central Vacuum Auto Loader Conveyor Feeder OAL-3S-122 For Plastic Pellets

    Central Vacuum Auto Loader Conveyor Feeder OAL-3S-122 For Plastic Pellets

    OAL-12X 1-to-more Loader Loading Machine.pdf

    NAMING PRINCIPLE of Plastic Material Vacuum Loader


    OAL- xxxS - xx

    ① ② ③

    ① Orste Auto-Loader

    ② Motor Power (HP)

    S: Separate Type

    ③ 122: 1 to 2 Conveying, 12X: 1 to many Conveying


    FEATURES of Plastic Material Vacuum Loader


    • “One-to-Two or One-to-Many” hopper loader greatly lowers the cost.

    • Dust collective chamber features a cyclone separator and a dust collective bin to effectively reduce the load of the filter and the dust content.

    • Separate dust collector is convenient for dust cleaning.

    • Complete safety protection function device, like material shortage and motor overloading alarm.


    OPTIONS of Plastic Material Vacuum Loader


    Collective hopper OCH-6/12/24 with standard and insulated version; proportional valve, accumulator auto-cleaning function, Buzzer


    APPLICATION of Plastic Material Vacuum Loader

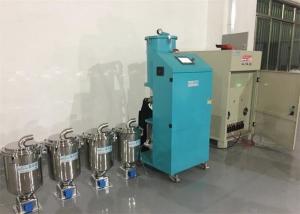

    “One-to-Many” separate hopper loaders feature more functions, easy to operate, and convenient to install. Equipped with a high pressure blower and two to twelve OMH/OPH vacuum hoppers, this model is applicable to many dehumidifying and drying machines (dehumidifying dryer “ODD”) or one gravimetric blenders “OGB” to process plastic materials. Besides that, it can also realize the “One-to-Two, One-to-Three or One-to-Many (as many as 12)” way of conveying materials to different molding machines or hopper to greatly lower the cost.


    FUNCTIONAL SCHEME of Plastic Material Vacuum Loader


    The control device starts the vacuum motor to take out the air in the hopper, the material valve is closed meanwhile, thus negative pressure is created. With the function of negative pressure, material in the storage tank is delivered to the hopper through material pipe. The vacuum motor stops working when the suction time comes out, the material valve is opened by material, then material falls into injection machine or other equipment.


    PARAMETERS of Plastic Material Vacuum Loader


    Model

    Motor Power

    Conveying Capacity (kg/hr)

    Motor Type

    Vertical Conveying Height (m)

    Horizontal Distance (m)

    Hopper Capacity

    kw

    hp


    OAL-3S-122

    2.25

    3

    420

    Induction Type

    9.5

    30

    7.5L * 2

    OAL-5S-123

    3.75

    5

    520

    Induction Type

    11

    50

    7.5L * 3

    OAL-7.5S-124

    5.5

    7.5

    850

    Induction Type

    13

    75

    12L * 4

    OAL-10S-12X

    7.5

    10

    1000

    Induction Type

    15

    100

    24L * X

    We reserve the right to change parameters without prior notice.


    Notes:

    (1) Above loading capacity is based on pellet material of 0.65kg/L in bulk density and 3-5mm in diameter.

    (2) Power: 3ф, 230/400/460/575VAC, 50/60Hz.


    Application Cases of Plastic Material Vacuum Loader
