    40T Angle Code Production Line Servo Feeder Punching Machine With Mold

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : J23-40T
    Certification : CE
    Price : $5050
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    40T Angle Code Production Line Servo Feeder Punching Machine With Mold

    40T Angle Code Production Line Servo Feeder Punching Machine With Mold For Sale



    The press is applicable to compression of plastic materials. For example, powder and plastic products forming and heat/cool metal extruction, stamping, bending, edge-folding, straightening, depressed mounting and etc.


    Technical Parameters:
    ModelJ23-6.3TJ23-12TJ23-16TJ23-25TJ23-40TJ23-63TJ23-80TJ23-100TJ23-125T
    Nominal Pressure(KN)6312016025040063080010001250
    Nominal Pressure Stroke(mm)1.5222.544555
    Slide stroke(mm)40506070100100120120140
    Stroke frequency (times/min)150140100705556455040
    Die Set Height (mm)120130170200240275300320340
    Die Height Adjustment304040405663708090
    Worktable Size ( front-back) (mm)210220290350400450480580700
    Worktable Size ( Left-Right)(mm)3503704605606806807809101100
    Max Tilt Angle202030152525252020
    Die Handle Hole Size (mm)253035405050606060
    Thickness of the Worktable30354550708090110120
    Worktable Hole Diameter7090120130135140160160170
    Power(KW)0.751.51.52.2345.57.511
    Column Spacing (mm)140170190240250280320390400
    Dimensions (mm)400*500*1300600*530*1500760*650*1600900*700*20001400*1000*23001700*1150*25002000*1300*26501950*1400*28502300*1500*3000
    Throat Depth (mm)120130170190250260290330330

    Details:


    The machine body have been heat-treated to eliminate internal stress. At the same time, they have been processed on our CNC floor boring and milling machine. the bottom surface of the worktable, the side of the slider guide rail, and the crank sleeve are processed integrally to ensure the initial accuracy of assembly.



    Crankshafts are all high-quality crankshafts made of 42CRMo steel after high temperature forging. the surface is quite smooth. so that make sure the lower friction resistance , and the lower noise. It is lubricated. The press work more smooth.



    Toolkit



    Warning sign

    Both-hands operation buttons to ensure the operators' safety.



    T type slot, easy to install and uninstall molds,It is firmly fixed and will not move.Table size can be customized.

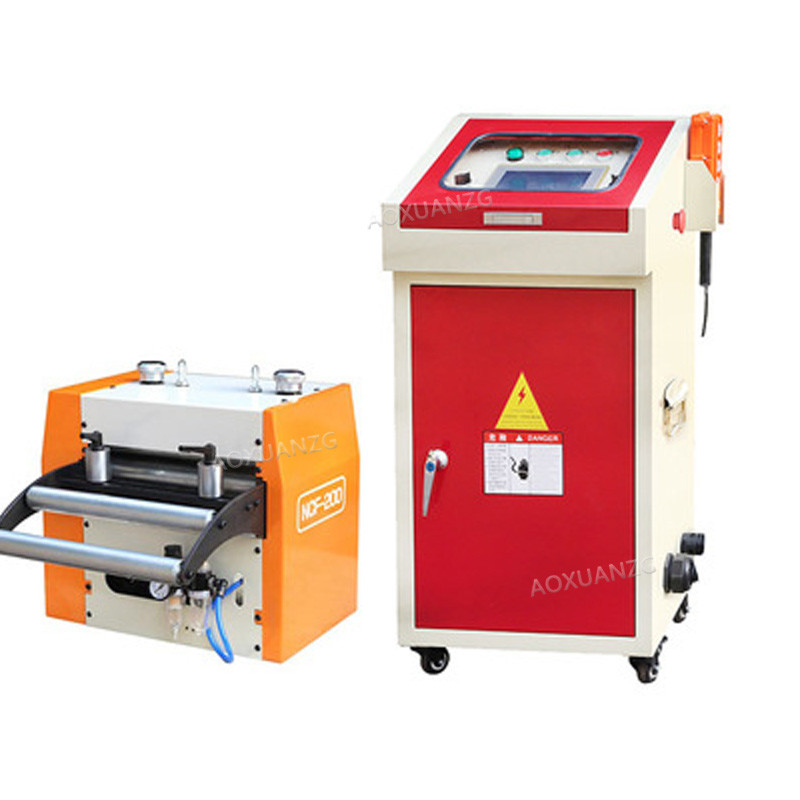

    Servo feeder

    Angle code mold

    Our Service

    Pre-sales.
    * Project design, performance introduction, technical agreement, contract signing, packaging
    * Inquiry and consulting support.
    * Sample testing support.

    In-sales.
    * We will provide you with the latest progress in the product assembly, packaging and transportation.

    After-sale.
    * We will provide free accessories for the damage to non - human parts.
    * Training how to install the machine, training how to use the machine with video and so on
    * And our technical staff can go abroad to provide technical guidance.

    FAQ:
    1. Are you the manufacture? Can we visit your factory?
    We are manufacturer and we are located in Anhui,China. And we have our own design team for products design. And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.
    2. And are you able to update the production process Information in time after placing our order?
    After confirming your order ,we would keep you updated of production details of emails and photos.
    3. Payment terms?
    T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.
    4,Are you provide product metal parts and provide us technical guidance?
    Wearing parts,Disassembly tool(free) are what we could provide. And we can give you technical guidance.
    Our technical staff can go abroad to provide you with technical guidance.
    5. How long is your warranty?
    13 months free warranty, life-long maintenance.
    6. Do you accept customer Logo and customized ?
    we accept kinds of customized ,including logo and machine .
