    Long Distance UHF RFID Reader RS232 RS485 Wiegand Interfaces Built In Antenna

    Ask Lasest Price
    Brand Name : Junson
    Model Number : JS-UHFR101
    Certification : CE/FCC
    Price : negotiation
    Payment Terms : T/T, paypal or western Union in advance
    Supply Ability : 5000 pcs per month
    Delivery Time : 2-7 working days after received your payment
    • Product Details
    • Company Profile

    Long Distance UHF RFID Reader RS232 RS485 Wiegand Interfaces Built In Antenna

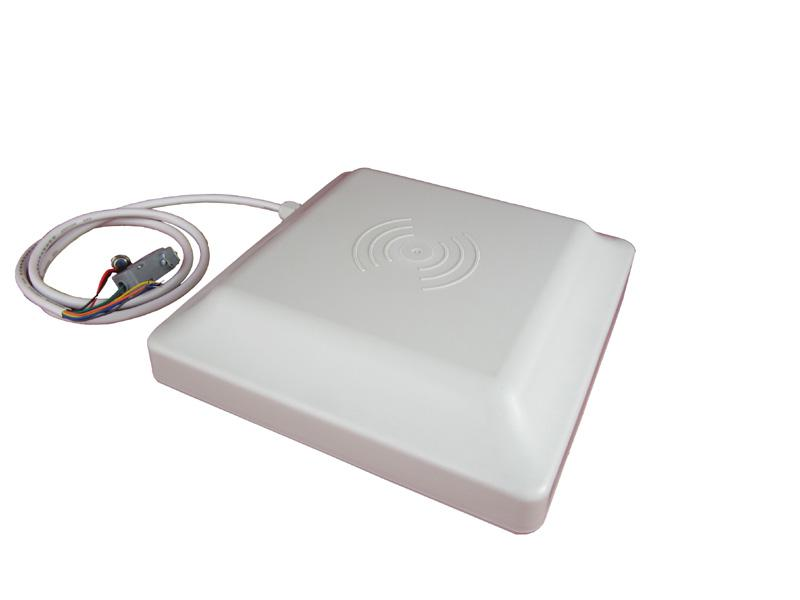

    Long Distance UHF RFID Reader
    Model: JS-UHFR101

    Features

    1. Work frequency: 902-928MHz(customized as per countries or regions)
    2. Read range:0-5m, 8dbi built-in antenna
    3. read cards circularly polarized.
    4. Protocol: ISO1 8000-6B, EPC CLASS1 G2 standards.
    5. interfaces: RS232, RS485, Wiegand, (TCP IP,WIFI optional) etc.
    6. Operation mode: FHSS or Fixed Frequency transmission
    7. Supports various work modes such as: Auto-running mode, interactive mode, trigger- activating work mode, etc.
    8. Output power: maximum 30dbm(adjustable)
    9. Provide DLL and Demonstration Software source code to facilitate further development.
    10. Low power dissipation with single +9V DC power supply.
    11. Effective distance up to protocols,antenna,RFID tags and work environment. 1 2. internal size:235mm×235mm×57mm 1 3. N.W:900g




    Parameter for build-in Antenna

    1. 1.8dbi circularly polarized Auto-gaining antenna
    2. Protocol: ISO1 8000-6B, EPC CLASS1 G2 standards.
    3. Read distance 0-5m,
    4. Working frequency:902-928mhz or 865-868mhz customized
    5. Gain 8dBi
    6. Beam Width 60°
    7. V.S.W.R ≤ 1 .4
    8. Max power 1 00W
    9. Nominal Impedance 50 Ω
    10. Porlarization HCP
    11. Connector SMA or N-Female
    12. Cover for antenna ABS


    Interface
    ItemComment
    Red+9V
    BlackGND
    YellowWiegand DATA0
    BlueWiegand DATA1
    PurpleRS485 R+
    OrangeRS485 R- Brown GND
    WhiteRS232 RXD
    GreenRS232 TXD
    GreyTrigger input(TTL level)


    FAQ


    1. Are you a source factory or a trader?
    We are a manufacturer that has been established for 17 years.


    2. Does it support OEM or customization?
    Support, but there are requirements for quantity.


    3. How long is the customized delivery time?
    7~15 days.


    4. What is the MOQ (Minimum Order Quantity)?
    1 set minimum order.


    5.What is the difference from other factories?
    1)Our company is a manufacturer,which has been established for 17 years.
    2)We have a professional R&D team that independently develops and designs products.
    3)We can deliver conventional products in 15 days at the soonest
