PVC Extruder Line / Plastic Extrusion Machinery /PVC Profile
Extrusion Machine HY240
PVC Extruder Line Production line composition
- Auto loader
- Conic twin screw extruder HYZS65/132 or HYZS80/156
- Mold

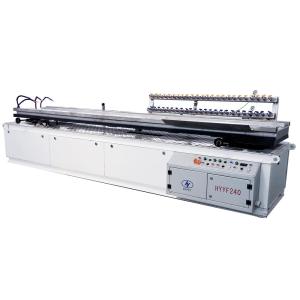

- Calibrating table

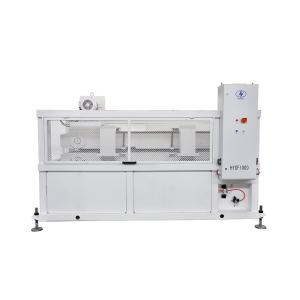

- Haul off unit
- Cutter
- Stacker.
PVC Extruder Line Auxiliary machines for optional
- Mixer;
- Crusher;
- Pulverizer;
- Chiller;
- Air compressor.
PVC Extruder Line HYPET Unique Advantages
a. HYPET special function extruder with high calcium formula can be
equipped, and the shelf life is 1 year.
b. It can provide a variety of different shapes and different
functions of decorative wallboard production technology.
c. Hot stamping, laminating, transfer and other surface treatment
processes can be selected
d. Traction cutting can be equipped with servo or frequency
conversion control system to improve accuracy and reduce production
costs
e. Siemens PLC control system, equipped with HYPET self-developed
software, improves operation efficiency and reduces production
costs
PVC Extruder Line Configuration list
Note: This table as attached file which is for selection of the
configuration on the whole line
| SN | Items | Choosing configuration | Remark |
| 1 | Production control system | PLC control | Digital control optional |
| 2 | Cooling system of the main control electric cabinet | Fan cooling. | Air conditioner optional |
| 3 | Main motor | AC motor with famous inverter | DC optional |
| 4 | Pressure sensor | HYPET individual temperature and pressure control in two parts | Dynisco is for option |
| 5 | Core temperature adjustment control | Internal closed loop heat balancing system. | External heat control optional |
| 6 | Material of screw & barrel type | Nitrided Alloy with bi-metal in two parts | Economical standard optional |
| 7 | Quantitative feeding system’s mixing function | Standard dosing device in twin screw type. | Mixing device optional |
| 8 | Cutter | Saw cutter | |
PVC Extruder Line Condition of use
1. PVC Extruder Line Technical features of whole line
| SN | Specification | Description |
| 1 | Suitable material | PVC powder or WPC composite |
| 2 | Max product width | 600mm |
| 3 | Production speed | 0.3~2 m/min |
| 4 | Max. output | 380kg/h |
| 5 | Test and accept | Based on HYPET standard formula. |
| 6 | Center height | 1,000mm |
| 7 | Whole line size (L x W x H) | 22,000 x 1,300 x 2,450mm |
| 8 | Operation direction | From right to left |
| 9 | Color of equipment | HYPET white color |
| 10 | Control of whole production | Refer to the “configuration list”. |
| Note | Extrusion capacity will be changed according the processing
material and working conditions |
2. PVC Extruder Line Circumstances condition
| SN | Condition | Specification | Description |
| 1 | Natural circumstance condition | Working place | Indoor use |
| Power source | No dangerous area |
| Humidity | 55%-85% no condensation |
| Temperature | 0~40 ℃ |
| 2 | Electricity source | Installation capacity | 200kW |
| Power supply | 3P+N+PE |
| Voltage/Frequency | 380V/50Hz other can be option |
| 3 | Cooling water | Temperature | ≤15 ℃ |
| Water pressure | ≥0.3MPa |
| Flow | ~15 m3/h |
| 4 | Air condition | Compressor air pressure | ≥0.6MPa |
| Flow | ~0.9 m3/min |
PVC Extruder Line
PVC Extruder Line Terms & conditions
1. PVC Extruder Line Training and services
1) Instruction of field installation.
2) Equipment field debugging and trial run if required by the buyer
according to the rule.
3) Training on field operation and maintenance for customer's
personnel.
4) Provide technical consultation service on long-term basis.
2. PVC Extruder Line Installation and debugging
When the machine arrives at site, the customer should install it on
the appropriate position according to the specifications provided
by the supplier; and then the supplier should send its engineers to
the site if requirement approved,in order to instruct the customer
about trial run and debugging. The customer should provide
necessary conditions for trial run and provide materials for trial
run, and should decide the processing conditions in trial run with
consideration of the supplier's opinions.
1) The price covers the pre-commissioning of the machinery before
shipment at Seller's site. The Seller is obliged to test the
performance of machinery.
2) The Buyer is obliged to provide suitable space, tools and
manpower for the commissioning of the order.
3) This Price does not included commission and installation in
buyer’s factory.
3. PVC Extruder Line Pricing
1) The above mentioned quotation is valid within 30 days counted
from the issue date of quotation.
2) The price and machinery configuration should be updated and
confirmed by the Seller in the case that the quotation has been
beyond the validity period.
3) The above mentioned quotation is based on Ex-works. Sea
transportation and wooden case packing is excluded.
4) The price does not cover the cost of testing material. The
testing material will be supplied by the Buyer. Or the Seller will
purchase the material as requested by the Buyer at Buyer's cost.
5) The price does not include the cost of commissioning at Buyer's
site.
6) The Seller reserves the right to modify the specification and
design of the machine in order to enhance the product quality.
4. PVC Extruder Line Terms of payment
1) T/T and L/C (irrevocable, at sight) both are acceptable.
2) 35% of the total contract value should be paid in advance,
balance 65% of the total value is to be paid before shipping at the
Seller’s factory.
5. PVC Extruder Line Time of delivery
1) When the contract becomes valid, the machine should be delivered
within 45 days since receipt of the advance payment. And the
equipment will be in normal operation after debugging within two
weeks after arrival.
2) During production, provided that the Buyer requests to modify
the specification of the order, the Buyer shall notify the Seller
of this modification in written form. Upon receipt of the notice,
the Seller will quote to the Buyer the cost of this modification
and notify the Buyer of any possible delay due to this
modification.
6. PVC Extruder Line Guarantee clause
1) Guarantee is 1 year (excluding human factor and wearing parts).
2) Under proper working conditions, 12 months from the date of
completion of commissioning at the buyer's site, and should be at
the latest within 14 months from the issuing date of Bill of
Lading.
