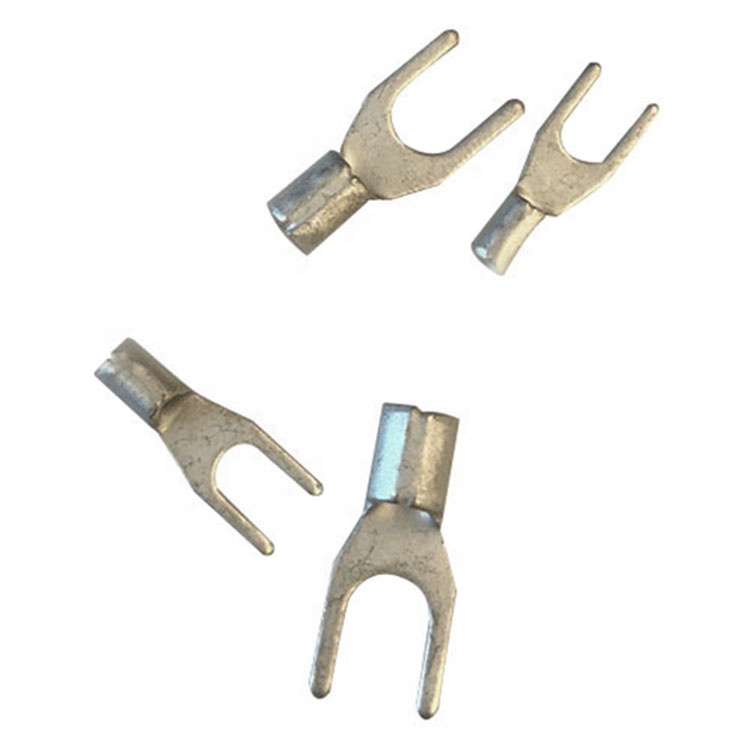

    SNB Series Non Insulated Spade Terminal Copper Fork Connector U Type Cable Lugs

    Ask Lasest Price
    Brand Name : YOKG
    Model Number : SNB1.25-3.2
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T
    Supply Ability : 100000pcs per Month
    Delivery Time : 15days or Depends on ordering QTYS
    • Product Details
    • Company Profile

    SNB Series Non Insulated Spade Terminal Copper Fork Connector U Type Cable Lugs

    SNB Series Non-Insulated Spade Terminal Copper Fork Connector U Type Cable Lugs


    Item No:TO Non-insulated Ring Terminals
    Product name:SNB Spade Terminals
    Color:Tinned copper
    Material:Brass or Copper, Plating:Tin
    Application:Wire and cable connection
    Product TypeTerminals

    Wire range: 0.5-1.5㎜², A.W.G:22~16, Imax=19A

    Item No.Stud sizeDimension (mm)
    d2BLFED∅d∅
    SNB1.25-3.2#43.25.716.06.54.83.41.7
    SNBS1.25-3.5#63.75.716.06.5
    SNBL1.25-3.5#63.76.416.06.5
    SNBS1.25-4#84.36.416.06.5
    SNBM1.25-4#84.37.216.06.5
    SNBL1.25-4#84.38.116.06.5
    SNBS1.25-5#105.38.116.06.5
    SNBL1.25-5#105.39.516.06.5
    SNBS1.25-61/46.49.516.06.5
    SNBL1.25-61/46.412.022.011.0
    SNB1.25-85/168.414.523.512.5

    Wire range: 1.5-2.5㎜², A.W.G:16~14, Imax=27A

    Item No.Stud sizeDimension (mm)
    d2BLFED∅d∅
    SNB2-3.2#43.25.716.06.54.84.12.3
    SNBS2-3.5#63.75.716.06.5
    SNBL2-3.5#63.76.016.06.5
    SNBS2-4#84.36.416.06.5
    SNBM2-4#84.37.216.06.5
    SNBL2-4#84.38.116.06.5
    SNBS2-5#105.38.116.06.5
    SNBL2-5#105.39.516.06.5
    SNBS2-61/46.49.516.06.5
    SNBL2-61/46.412.022.011.0
    SNB2-85/168.414.523.512.5

    Wire range: 2.5-4㎜², A.W.G:14~12, Imax=37A

    Item No.Stud sizeDimension (mm)
    d2BLFED∅d∅
    SNB3.5-3#43.25.718.37.06.05.03.0
    SNB3.5-4#84.38.018.37.0
    SNB3.5-5#105.38.018.37.0
    SNB3.5-61/46.412.021.512.1

    Wire range: 4-6㎜², A.W.G:12~10, Imax=48A

    Item No.Stud sizeDimension (mm)
    d2BLFED∅d∅
    SNB5.5-3.5#63.78.319.57.56.85.63.4
    SNBS5.5-4#84.38.319.57.5
    SNBL5.5-4#84.39.019.57.5
    SNB5.5-5#105.39.019.57.5
    SNBS5.5-61/46.49.019.57.5
    SNBL5.5-61/46.412.025.512.0
    SNB5.5-85/168.414.024.511.5

    Wire range: 6-25㎜², A.W.G:8~4

    Item No.Stud sizeDimension (mm)Imax
    d2BLFED∅d∅
    SNB8-4#84.38.723.06.08.57.24.562A
    SNB8-5#105.312.024.55.78.57.24.562A
    SNB8-61/46.412.024.55.78.57.24.562A
    SNB8-85/168.414.528.08.38.57.24.562A
    SNB14-61/46.412.028.07.510.59.05.888A
    SNB14-85/168.414.028.07.510.59.05.888A
    SNB22-85/168.414.034.59.012.011.57.7115A

    FAQ:

    1. Are you factory or trading company?

    Yes,we are manufacturer in Wenzhou,China. We can give you the competitive price & after sale service.
    2. Can we print our logo/website/company name on products?
    Yes,your logo can be printed as your demand. we can offer OEM service.
    3. What's the lead time for regular order?
    7-15 days as order quantity

    4. Can you provide samples? Are the samples free?
    Yes, samples can be provided with freight charge to be collect.
    5. Could you change the size for customer?
    Yes, the sizes can be customized, for more details, please contact us freely.
    6. How about the after-sale service?

    Any comments are welcomed,we will solve your application problems.
