Large Scale Complete Biomass Wood Pellet Production Line
Biomass Wood Pellet Making Machine Can Used For Production The
Different Size Biomass Pellet , Wood Pellet , Sawdust Pellet ,
Grass Pellet , Alfalfa Pellet ,Hemp Pellet , Rice Husk Pellet,
Straw Pellet , Organic Fertilizer Pellet ,Cow Dung Pellet, Waste
Paper Pellet , Organic Waste Pellet And Other A Lot Of Different
Biomass Pellet.
The Raw Material From Wood Log, Wood Sawdust, Grass , Alfalfa ,
Hemp, Rice Husk , Straw , Organic Fertilizer , Cow Dung, Waste
Paper , Organic Waste and Other Raw Material.
Capacity can be customzied from 1-20t/h !
The main euqipment :

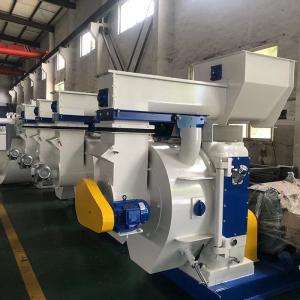

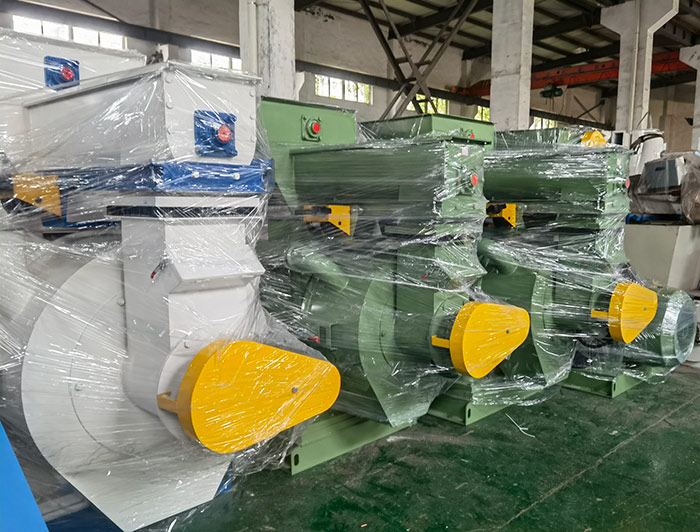

| Pellet Mill Machine |
 | Model :420,508 ,650 |
| Model 420 |
| Capacity :1-1.5t/h |
| Power :90kw |
| Weight :3200kg |
| Dimension :2500*1100*1600mm |
| Model :508 |
| Capacity :1.5-2t/h |
| Power :132kw |
| Weight 5300 |
| Dimension :2800*1500*2500mm |
| Model :650 |
| Capacity :2.5-3t/h |
| Power :200kw |
| Ring die :Customized alloy steel or 4Cr13 | Weight 9000kg |
| Dimension 3530*1580*2400mm |
Note :
1. Even if the same raw material is processed by the same type of
Pellets mill , the output will be different due to the state of the
raw material, moisture content and other conditions. Please contact
us and tell us the status of your raw materials and we will provide
more information.
2. Not only 6~10mm, we can customize the final pellet size for you.
3. We can customize each part of the grass Pellets Press for you
such as color, motor brand, voltage, size, function, etc

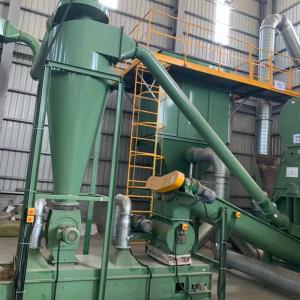

Complete Biomass Wood Pellet Production Line including :
Raw material :
Require size: 3--5mm;
Moisture content: 10-15%
Final different biomass wood Pellet
Diameter of final pellets: 6mm,8mm,10mm,12mm.
Length of wood pellet: Ajustable wood pellets
Applicate: Home fireplace, power plant etc.
1tph Wood Pellet Production Line
20tph Wood Pellet Production Line
Generally pellete line processing :
1.This machine chip the raw material into small chips, these chips
are raw material of chipboard, density beaverboard and wood fiber
board, also could be burning material as sort of fuel.
2. Grinding processing :The hammer mill system can make wood chips
into wood sawdust . The hammer mill is applied mainly to grinding
the raw material to make it suiable to make pellets.
3. Drying :To dry materials and remove the moisture from 50 % to
15-17 % . The best moisture content to pelletizing is 13-15%, so
our rotary dryer is designed to reduce the moisture of the
unqualified raw material, for which the moisture is too high.
4. Pelletizing process:It is suitable for the production of biomass
pellets of various biomass raw materials. Using SIEMENS motor,
high-precision gear transmission, SKF bearings, and is equipped
with a forced feeding device to ensure the smooth operation of the
machine. Core component ring die, using 42CrMo.
5. The cooling system can immediately cool the biomass pellets to room
temperature. When the pellets come out of the pelletizer, the
temperature will be around 70°C, and then through the instant
cooling effect of the cooler, the hardness of the pellets will
become stronger. So as to obtain better hardness and strength
6. The packing processing :The qualified pellet is packed in the
bag from 10-100kg .The sewing machine is used to close the bag
which makes pellet dry and water proof .
FAQ:
How did you define your pellet mill model as 420 / 508, etc. ?
The model is defined based on the diameter of the ring die mould.
For example, mould 420 means that the diameter of the ring die is
420 mm.
2) what kind of raw material that the ring die mould is made of?
There are two kinds of ring die mould in the market. one is made of
alloy steel, the other is made of stainless steel. the former is
cheaper than the latter.
We adopt stainless steel ring die and press roller sheel in our
machine.
3) what about the size of the final product wood pellet?
the size is adjustable accroding to your requirement.
the diameter range of the sawdust pellet is ø6-10 mm by using
different size of ring die mould.
the length of the pellet could be adjusted by the cutter on the
machine.
5) What is the suitable moisture (water content) of the raw
material that easy to make pellet?
the ideal moisture range is from 15% to 18% .
6) will you dispatch engineer to install the wood pellet mill
machine (production line)?
Yes. we will dispatch engineer to do the service just based on the
requirement of customers.
9) where is your factory located? how could I get there?
Our factory is located in Liyang ,about 80km to Nanjing airport .
