Max Tension 2x100 KN Overhead Transmission Line Stringing Equipment Hydraulic Tensioner

Transmission Line Stringing Equipment 4x50(2x100) KN Hydraulic Cable Tensioner

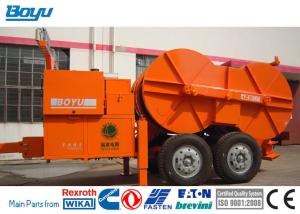

TY4x50 Hydraulic Tensioner
The machine allows for the tension stringing of one, two, three or four-bundle conductor of 630mm2; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Performance

• Max tension: 4x50(2x100) KN
• Max continue tension: 4x40(2x80)KN
• Speed at max continue tension: 2.5km/h
• Max feeding speed: 5km/h
• Corresponding tension: 4x20(2x40)KN
• Max reverse pulling force: 4x40kN /2x80kN
• Max reverse pulling speed: 1.25km/h

Characteristics

• Bull-wheel diameter: 1500mm
• Groove number: 4X5
• Max conductor diameter: 40mm
• Total weight: 13000kg
• Overall dimension (LxWxH): 5900*2300*2700mm

Main configuration

• Engine: Cummins
• Hydraulic pump: German Rexroth/Dnish Danfoss
• Main motor:German Rexroth/French Leduc
• Speed reducer: German Rexroth
• Hydraulic meter: German WIKA
• Operating handle: German Rexroth

Engine

• Diesel: 77kw(103hp)
• Cooling system: water
• Electrical system: 24V

Hydraulic Transmission

• The machine can realize step less speed.
• The machine is provided with tension presetting system.

Configuration

• 4 negative self-acting hydraulic brakes
• 4 hydraulic dynamometers
• Hydraulic oil cooling system
• 4 digital speed and meters counter
• Control instruments for hydraulic system and diesel engine
• Rigid axle for towing at max speed of 30km/h with parking brake
• Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor

• Hydraulic front and behind stabilizer

• Grounding connection point

Additional Devices

• Lighting system for the trailer
• Air brake system for the trailer
• 4 hydraulic conductor clamps for drum change operations (extra change)
• Digital speed and meter counter
• 2 hydraulic behind stabilizers and 1 front sabtilizer
• 4 swivel guide rope roller
• Trailer for towing at max speed of 30 km/h

Other Models

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.
