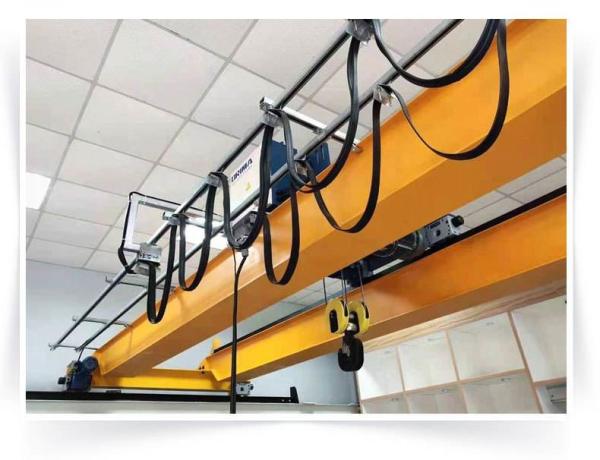

Fast And Smooth Loading European Standard Double Girder Overhead
Crane For Steel Industry
Introduction:
The double-girder European crane has a compact design, light
weight, small wheel pressure, and even load distribution, which can
save customers considerable investment and greatly improve the
effective working space. The double-girder European crane is not
only safe and reliable, but also ergonomically designed, easy to
operate, safe and comfortable, and makes material transportation
more convenient and efficient. There are many dosing options for
customers to choose from, such as hoisting frequency conversion,
hoist double, remote control, etc., to meet the needs of various
working conditions or logistics transportation.
Technical Parameter:
| Technical Specifications |
|
| Lifting Capacity | Span | Lifting | Work Duty | Main Lifting | Vice Lifting | Trolley Traveling | Crane Traveling | Track |
| Height | Speed | Speed | Speed | Speed |
| | | | |
| t | m | m | | m/min | m/min | m/min | m/min | |
| 5 | 13.5~19.5 | 18 | A5 | 0.84~8.4 | | 3.4~34 | 5.1~51 | 38kg |
| 22.5~31.5 | 5~50 |
| 5 | 13.5~19.5 | 18 | A5 | 0.78~7.8 | | 3~30 | 5~50 | 38kg |
| 22.5~31.5 | 5.2~52 |
| 16/5 | 13.5~19.5 | 18/18 | A5 | 0.76~7.6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 |
| 20/5 | 13.5~19.5 | 18/18 | A5 | 0.6~6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 |
| 32/5 | 13.5~19.5 | 18/18 | A5 | 0.52~5.2 | 0.84~8.4 | 3.1~31 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 |
| Oct-50 | 13.5~19.5 | 18/18 | A5 | 0.43~3.9 | 0.78~7.8 | 3.6~36 | 4.8~48 | 43kg |
| 22.5~31.5 | 5.4~54 |
| Notes: Customizable |
The difference between single girder and double girder cranes:
1. Differences in the working environment
Generally speaking, single girder cranes are usually used in places
with short spans, small lifting capacity and small working space.
Double girder overhead cranes are used in places with large span,
large lifting capacity and large working space. Compared with the
two, the European double-girder crane works at a higher level.
2. the difference in crane structure
Single-girder bridge cranes are lighter in weight, simpler in
structure, and easier to install, disassemble and maintain, while
double-girder bridge cranes are heavier in weight, more complex in
structure, and require higher assembly, disassembly and
maintenance.
3. The difference between the manufacturing cost of single-girder
cranes and double-girder cranes.
Due to the small body of the single-girder bridge crane, the
material consumption is small, and the manufacturing cost is not
high.
4. the mechanical properties of the single-girder crane and the
double-girder crane are different.
Application:
Double girder overhead crane is an important tool and equipment to
realize mechanization and automation of production process in
modern industrial production and lifting and transportation.
Therefore, double-girder overhead cranes are widely used in indoor
and outdoor industrial and mining enterprises, iron and steel
chemical industry, railway transportation, port terminals and
logistics turnover departments and places.
