500N 1000N 1500N 2500N 5000N Brake Pressure Measuring Tension
Compression Force Sensor
1. Descriptions

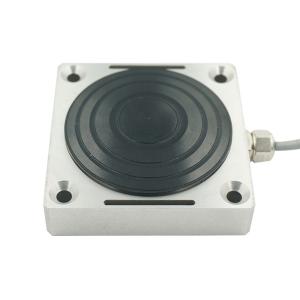

500N 1000N 1500N 2500N 5000N Brake Pressure Measuring Tension
Compression Force Sensor FA901 is a model of our brand FIBOS
FA9-Series, Tension Compression Force Sensor FA901 can be used to
measure force ranges from 500N,1000N,1500N,2500N up to 5000N
capacity, its Rated output range is 1.5±10%mV/V, its Zero Balance
range is ±0.02mV/V.
2. Specifications
| Product name | Tension Compression Force Sensor |
| Capacity | 500,1000,1500,2500,5000N |
| Rated output | 1.5±10%mV/V |
| Zero Balance | ±0.02mV/V |
| Creep(30min) | ≤0.05%F.S. |
| Non-linearity | ≤0.2%F.S. |
| Hysteresis | ≤0.1%F.S. |
| Repeatability | ≤0.1%F.S |
| Input impedance | 780±30Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.03%F.S./10℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10-60℃ |
| Operating Temp Range | -20-80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | 04x3000mm |
| Weight | 0.4kg |
| Material | Aluminum alloy |
3. Dimension
4. Application
500N 1000N 1500N 2500N 5000N Brake Pressure Measuring Tension
Compression Force Sensor FA901 can be Mainly used for brake pressure measurement.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical
drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in
stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return
it to us, we will repair it, if we can't repair it successfully, we
will give you a new one; but the man-made damage, improper
operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay
the shipping cost of delivering to you.
