12.5L Petrol MMA Welding Machine 195FE 250A DC Medium Frequency

    Buy cheap 12.5L Petrol MMA Welding Machine 195FE 250A DC Medium Frequency from wholesalers

    Buy cheap 12.5L Petrol MMA Welding Machine 195FE 250A DC Medium Frequency from wholesalers
    • Buy cheap 12.5L Petrol MMA Welding Machine 195FE 250A DC Medium Frequency from wholesalers

    12.5L Petrol MMA Welding Machine 195FE 250A DC Medium Frequency

    Ask Lasest Price
    Brand Name : RAMS
    Model Number : RNW250E
    Certification : CE
    Payment Terms : T/T, L/C
    Delivery Time : 25 work days
    • Product Details
    • Company Profile

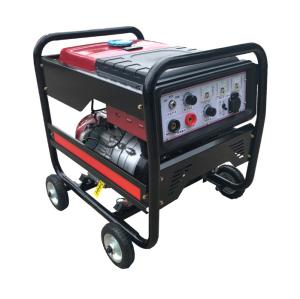

    12.5L Petrol MMA Welding Machine 195FE 250A DC Medium Frequency

    RNW250E Petrol Welding Generators Medium Frequency Permanent Magnet

    MOQ:12units mixed model


    Description


    • applicability is wide and can be used as a major units of oil and gas pipeline construction, railway, municipal pipeline, chemical plants, power plants, steel mills in construction and emergency maintenance.
    • Using intermediate frequency three-phase rectifier, current is smooth, good dynamic characteristics, fast response speed (1-3 ms). Can meet different welding requirements, and are suitable for all kinds of acidic and alkaline electrode and argon arc welding operation.
    • By adopting the technology of permanent magnet, has small volume, light weight, small iron loss, high efficiency, efficiency can reach 90%.
    • Abandoned the higher failure rate of IGBT (insulated gate bipolar transistor) adopted invagination type control mode, greatly improve the reliability of the control system.
    • Working condition of dual output, at the same time meet the requirements of welding and the use of small electric tools.
    • Mobile wheel sets, mobile convenience.
    • The project has been the Ministry of Science and Technology innovation fund support.


    Specifications
    Brand: RAMS
    Manufacturers Part Number: RNW250E
    Performance DataWELDER GENERATOR
    Unit Specification
    DC Welding Current250A
    Non-loading Voltage(V)70-75
    Welding Current Range70-250
    Duty Cycle at rated amps avalible60% @250A
    Welding ProcessSMAW(MMA / GTAW(TIG)
    Welding Rod diameter2.0-6.0mm
    Fuel Tank Capacity12.5L
    Fuel typeGasoline
    Generator Specification
    Power rated output (single phrase)DC 1.6kw
    Power Max output (single phrase)DC 2kw
    Voltage120V/220V/240V
    Receptacles1ps 16A
    Dimensions&Weights
    Carton size(mm)730*530*640mm
    Net/Gross Weight(kg)113.5/117kgs
    Q'ty 20"/40"/40"H93/198/264
    Engine Specification
    Engine Model195FE
    Start MethodElectric start
    Borex stroke mm92*75
    Horsepower/displacement531cc
    Ignition SystemCompression Ignition

    Package Includes

    • RNW250E Welder
    • 8" Wheel Kit
