    Girth Gear For Ball Mill Crusher And Rotary Kiln Production

    Ask Lasest Price
    Brand Name : Kingrail
    Model Number : KG62301
    Certification : Iso9001
    Price : USD$1-10 PER PC
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000000PCS PER YEAR
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

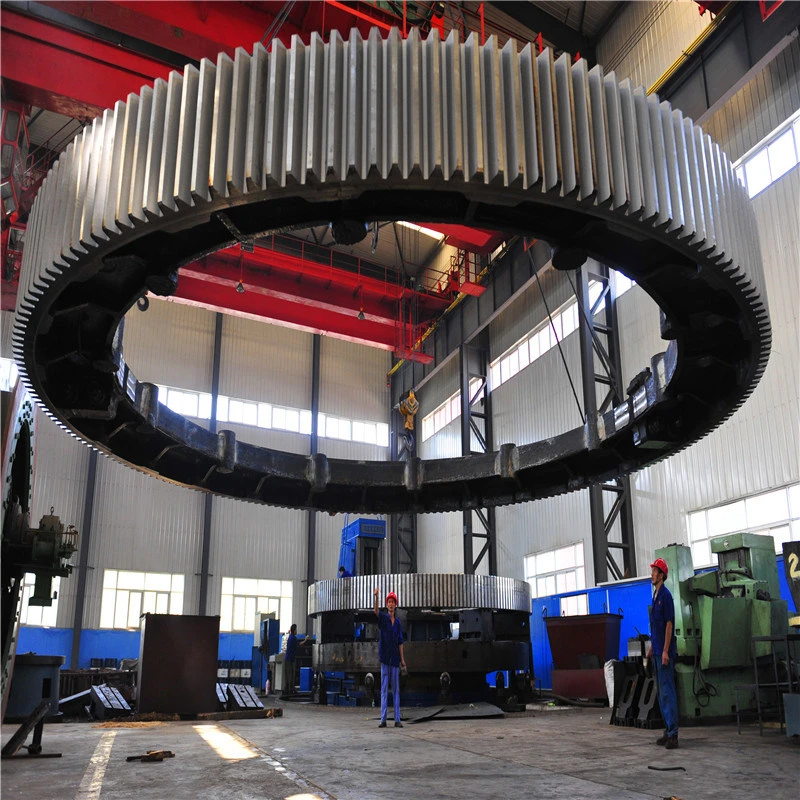

    Girth Gear For Ball Mill Crusher And Rotary Kiln Production

    Girth Gear For Ball Mill Crusher And Rotary Kiln Production

    Kingrail located the casting & forging center in central-south China, possessing 50t electric arc furnace, 60t LF ladle refining furnace, and 60t VD/VOD refining furnace, etc. We can pour 350t liquid steel one time and yields more than 200,000t of high quality liquid steel and can produce the high quality steel of more than 260 steel grades such as carbon steel, structural alloy steel and the structural steel, refractory steel and stainless steel of special requirement. The maximum weight of casting, gray casting, graphite cast iron and non-ferrous casting is 200t, 30t, 20t and 205t separately.



    Features:

    Module Range: 10 Module to 70 Module.

    Diameter: Min 800mm to16000 mm.

    Weight: Max 120 MT single piece.

    Three different designs: Fabricated steel - forged ring - rolled plate

    Standards / Certificates: • UNI EN ISO • AWS • ASTM • ASME • DIN

    Advantages:

    - Products with Customers' Designs

    - Strong Machining & Heat Treatment Abilities

    - Strict Quality Control

    - Prompt Delivery

    - Experience in Cooperation with Fortune 500 Companies


    Process:

    Forging / Casting

    Normalizing & Tempering-Proof Machining

    Quenching & Tempering

    Finish Machining (Teeth Grinding)


    We can offer you in various process conditions solutions for Many End Markets and Applications

    --Mining

    --Metallurgy

    --Power Generation

    --Sugar

    --Cement Plant

    --Port Machinery

    --Oil and natural

    --Papermaking

    --OEM gear case

    --General Industrial

    Specifications Of Gear:

    No.ItemDescription
    1Diameter≤15m
    2Module≤45
    3MaterialCast Alloy Steel, Cast Carbon Steel, Forged Alloy Steel, Forged Carbon Steel
    4Structure FromIntegrated, Half to Half, Four Pieces and More Pieces
    5Heat TreatmentQuenching & Tempering, Normalizing & Tempering, Carburizing & Quenching & Tempering
    6Tooth FormAnnular Gear, Outer Gear Ring
    7StandardISO, EN, DIN, AISI, ASTM, JIS, IS, GB

    Inspection And Test Outline Of Girth Gear:

    No.ItemInspection AreaAcceptance CriteriaInspection StageCertificates
    1Chemical
    Composition
    SampleMaterial RequirementWhen Smelting
    After Heat Treatment
    Chemical Composition
    Report
    2Mechanical
    Properties
    Sample (Test Bar on the Gear Body)Technical RequirementAfter Heat TreatmentMechanical Properties
    Report
    3Heat
    Treatment
    Whole BodyManufacturing StandardDuring Heat TreatmentHeat Treatment Report
    Curves of Heat
    Treatment
    4Hardness
    Test
    Tooth Surface, 3 Points Per 90°Technical RequirementAfter Heat TreatmentHardness Teat Report
    After Semi Finish
    Machining
    5Dimension
    Inspection
    Whole BodyDrawingAfter Semi Finish

    Machining
    Dimension Inspection
    Report
    Finish Machining
    6Magnetic Power Test (MT)Tooth SurfaceAgreed StandardAfter Finish Gear
    Hobbing
    MT Report
    7UTSpokes PartsAgreed StandardAfter Rough MachiningUT Report
    After Welded
    After Semi Finish
    Machining
    8PTDefect AreaNo Defect IndicatedAfter Digging
    After Welded
    PT Record
    9Mark InspectionWhole BodyManufacturing StandardFinal InspectionPictures
    10Appearance InspectionWhole BodyCIC's RequirementBefore Packing (Final Inspection)
    11Anti-rust
    Inspection
    Whole BodyAgreed Anti-rust AgentBefore PackingPictures
    12Packing
    Inspection
    Whole BodyAgreed Packing FormDuring PackingPictures

    Facilities For Manufacturing Gear Ring:

    NoItemDescription
    1Smelting & Casting Capability

    40t, 50t, 80t Series AC Electric Arc Furnace
    2×150t, 60t LF Ladle Refining Furnace
    150t, 60t Series VD / VOD Furnace
    20×18m Large Pouring Facility

    We can pour 900t refining liquid steel one time, and achieve vacuum poured 600t steel ingots.

    We can produce the high quality steel of more than 260 steel grades as carbon steel, structural alloy steel and the structural steel, refractory steel and stainless steel of special requirement.

    The maximum weight of casting steel, gray casting, graphite cast iron and non-ferrous casting is 600t, 200t, 150t and 20t separately.

    2Forging CapabilityThe only one in the word, the most technologically advanced and the largest
    specification18500t Oil Press, equipped with 750t.m forging operation machine
    8400t Water Press
    3150t Water Press
    1600t Water Press
    Φ5m High Precision Ring Mill (Germany)
    Φ12m High Precision Ring Mil
    We can roll rings of different sections of carbon steel, alloy steel, high temperature alloy steel and non-ferrous alloys such as copper alloy, aluminum alloy and titanium alloy.
    Max. Diameter of rolled ring will be 12m.
    3Heat Treatment Capability

    9×9×15m, 8×8×12m, 6×6×15m, 15×16×6.5m, 16×20×6m, 7×7×17m Series Heat Furnace and Heat Treatment Furnaces

    φ2.0×30m, φ3.0×5.0m Series Heat Treatment Furnaces
    φ5.0×2.5m, φ3.2×1.5m, φ3.0×5.0m, φ2.0×5m Series Carburizing Furnaces &
    Nitriding Furnaces & Quenching Bathes
    φ2.0×30m Well Type CNC Electrical Furnaces
    Φ3.0×5.0M Horizontal Gas Temperature-differential Furnace
    Double-frequency and Double-position Quenching Lathe of Pinion Shaft

    4Machining Capability

    1. ≥5m CNC Heavy Duty Vertical Lathes

    12m CNC Double-column Vertical Lathe
    10m CNC Double-column Vertical Lathe
    10m CNC Single-column Vertical Lathe
    6.3m Heavy Duty Vertical Lathe
    5m CNC Heavy Duty Vertical Lathe


    2. ≥5m Vertical Gear Hobbing Machines
    15m CNC Vertical Gear Hobbing Machine
    10m Gear Hobbing Machine
    8m Gear Hobbing Machine
    5m Gear Hobbing Machine
    3m Gear Hobbing Machining


    3. Imported High-precision Gear Grinding Machines
    0.8m~3.5m CNC Molding Gear Grinding Machines


    4. Large Boring & Milling Machines
    220 CNC Floor-mounted Boring & Milling Machine
    200 CNC Floor-mounted Boring & Milling Machine
    160 CNC Floor-mounted Boring & Milling Machine
