2-26 Wheeels TPMS Solutions ACC Input And RS232 Output LCD Segment Display

    Buy cheap 2-26 Wheeels TPMS Solutions ACC Input And RS232 Output LCD Segment Display from wholesalers

    Buy cheap 2-26 Wheeels TPMS Solutions ACC Input And RS232 Output LCD Segment Display from wholesalers
    • Buy cheap 2-26 Wheeels TPMS Solutions ACC Input And RS232 Output LCD Segment Display from wholesalers
    • Buy cheap 2-26 Wheeels TPMS Solutions ACC Input And RS232 Output LCD Segment Display from wholesalers
    • Buy cheap 2-26 Wheeels TPMS Solutions ACC Input And RS232 Output LCD Segment Display from wholesalers

    2-26 Wheeels TPMS Solutions ACC Input And RS232 Output LCD Segment Display

    Ask Lasest Price
    Brand Name : EGQ
    Model Number : T
    Certification : CE,FCC,ROHS,IATF16949:2016
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 10000 sets per month
    Delivery Time : 2-15 work days
    • Product Details
    • Company Profile

    2-26 Wheeels TPMS Solutions ACC Input And RS232 Output LCD Segment Display

    The local LCD display also integrates signals for remote management, truck and bus fleet use. RS232 signal format


    Local and remote versions of 2-26 wheel truck tire pressure monitoring

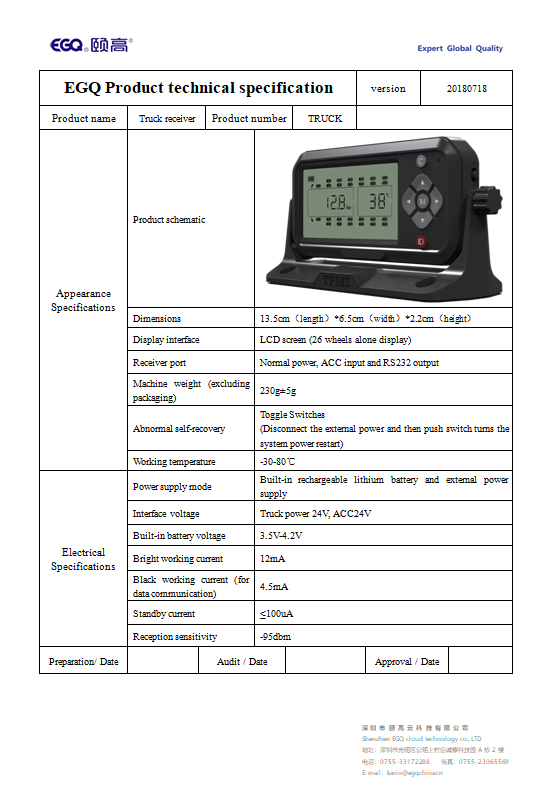

    Product parameters


    Receiver(26 rounds)
    Display interfaceLCD segment code (26 wheels with the same display)
    Receiver portVehicle battery, ACC input and RS232 output(about receiver)
    Machine weight (excluding packaging)230±5gramme
    Abnormal self-recoveryToggle Switches(The switch is facing up, restart after disconnecting the external power supply.)
    Working temperature-30℃-80℃
    Power supply modeInternal rechargeable lithium battery and external power supply
    Interface voltageVehicle battery 24V, ACC24V
    Built-in battery voltage3.5V-4.2V
    Bright working current12mA
    Black working current (for data communication)4.5mA
    Reception sensitivity-95dbm
    Dimensions13.5cm(length)*6.5cm(width)*2.2cm(height)
    Pressure range0bar~14bar/0psi~203psi
    typeTRUCK TPMS FOR 6 wheeels
    colorblack

    Products Advantages

    * All the parts can supply original package

    * OE quality

    * Accept trial order

    * Fast delivery

    * Factory price,let you have enough profit

    * Passionate team

    * Excellent pre-sales and after-sales services.


    Sensor (internal binding type sensor)
    Plastic parts materialNylon + glass fiber
    Machine weight (excluding bind belt)30g±1g
    Shell temperature resistance-50℃-150℃
    bind belt material304 stainless steel
    Power supply modeButton Battery
    battery modelCR2050
    battery capacity345mAh
    Working voltage2.1V-3.6V
    Working temperature-40℃-125℃
    working temperature8.7mA
    Self-test current2.2mA
    Dormant current0.5uA
    Working temperature-40℃-125℃
    Transmit frequency433.92MHZ
    Transmit power>-12dBm
    Dimensions :7.3cm(length)*2.73cm(width)*2.2cm(height)(excluding antenna)

    Basic functions of the product:


    Sensor and receiver corresponding wheel position number


    Alarm function


    leakage warning


    High pressure warning


    Low pressure warning


    High temperature warning


    Low power warning


    No signal warning


    Parameter Setting


    Tire quantity selection setting


    Pressure unit setting


    Temperature unit setting


    Pressure threshold setting


    High temperature threshold setting


    Restore factory setting



    Product attention


    1 Operation is not suggested during driving.


    2 Sensor monitors pressure and temperature of tire and signal to receiver, receiver reports pressure and temperature by number and voice. If there is any abnormal pressure or temperature, flashing warning icon and voice prompt will notice driver immediately.

    Drivers need to check and repair the tire immediately, in order to avoid risk of accident due to tire problem.


    3 Tires have natural micro leakage phenomenon. It is a normal phenomenon that pressure of tire decreases over time. Pressure decreasing don't have directly relationship with install this products.


    4 It is a normal phenomenon that pressure is unstable due to thermal expansion during driving. It don't have directly relationship with install this products.


    5 Incorrectly installation will affect the use of this product or make damage. experienced technician is preferred to install this product. please be careful not to damage the sensor transmitter when disassembling tires again. Valve of internal sensor is not available for repeat assembling/disassembling.


    6 Please use power cable provided by factory. It is not allowed to tie receiver by power cable, as I will damage product or effect signal . And you will lose warranty.


    7 Most of the DVD or other high power equipment in the market are all have electromagnetic interference. In order to avoid electromagnetic interference, receiver is suggest to install 50CM away from such kind of products. The best position is upper left corner, upper right corner of A column and middle of front seats (away from control)

    Our Services & Strength

    1. OEM Manufacturing welcome: Product, Package, make new color box with your brand, your logo on the remote or main unit.
    2. We will reply you for your inquiry in 24 hours.
    3. Normal we will ship the product within three days after receiving your deposit for small order.
    4. After sending, we will track the products for you once every two days, until you get the products. When you got the
    goods, test them, and give us a feedback.
    5.We will choose the most suitable way to delivery for you, if you have special requirement. Please let us know.

    FAQ

    1. who are we?
    We are based in Shenzhen China, start from 2013,sell to Domestic Market(00.00%),Southeast Asia(00.00%), Oceania(00.00%),Western
    Europe(00.00%),South Asia(00.00%),North America(00.00%),Eastern Europe(00.00%),Africa(00.00%),Mid East(00.00%),Eastern
    Asia(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%),South America(00.00%). There are total about
    11-50 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Car Alarm,Car Reversing Aid, button start, remote start, keyless erntry,Car tpms & Truck tpms

    4. why should you buy from us not from other suppliers?
    Welcome to our website. Shenzhen EGQ Cloud technology co., ltd has more than 10 years of OEM & ODM experience for car
    accessories. Our qualified R & D team can meet all customization needs.We can make new color box and print your logo with your
    brand TKS

    5. what services can we provide?
    Accepted Delivery Terms: EXW;
    Accepted Payment Currency:USD;
    Accepted Payment Type: T/T,PayPal,Western Union;
    Language Spoken:English, Chinese
