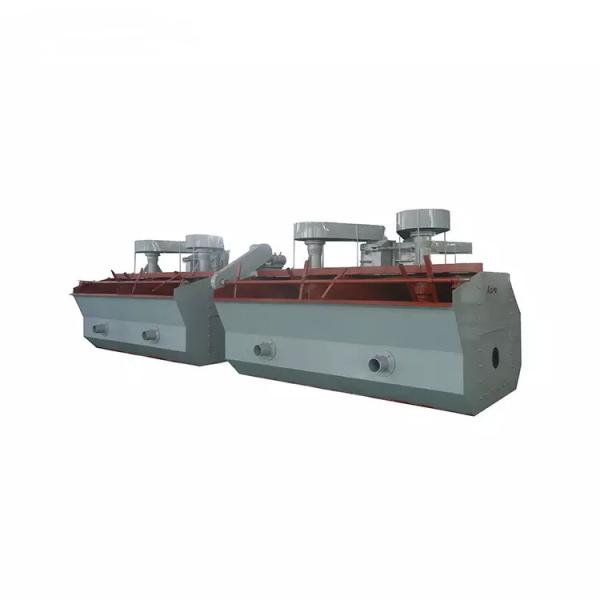

Mining Froth Flotation Cell Gold Flotation Concentrate

    Buy cheap Mining Froth Flotation Cell Gold Flotation Concentrate from wholesalers

    Buy cheap Mining Froth Flotation Cell Gold Flotation Concentrate from wholesalers
    • Buy cheap Mining Froth Flotation Cell Gold Flotation Concentrate from wholesalers

    Mining Froth Flotation Cell Gold Flotation Concentrate

    Ask Lasest Price
    Brand Name : Y&X
    Model Number : BS-K Flotation Machine
    Certification : Quality Management System Cerification
    Price : US$ 360-35600 /per
    Payment Terms : T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Mining Froth Flotation Cell Gold Flotation Concentrate

    Mining Froth Flotation Cell Gold Flotation Concentrate

    Introduction
    Flotation machine is applicable to grading of non-ferrous and ferrous metal, also applicable to grading of nonmetals, such as coal, fluorite and talc. The impeller of flotation machine is driven by motor v-belt, centrifugal effect is thus produced and negative pressure is formed, which, on the one hand, absorbs adequate air to mix with ore pulp, and on the other hand, stirs the ore pulp and mixes the ore pulp with medicines and refine bubbles; thus, the minerals will be adhered to the bubbles and float to the pulp surface and form foam layer.

    Features

    BS-K flotation machine is the pneumatic mechanical agitating flotation machine designed by China Institute for Non-ferrous Metals through absorbing the advantages of foreign advanced flotation machines. It shares the same appearance with XCF/KYF flotation machine, but with the following structural features: the spindle hangs on the side of rack; the bearing body is with light structure and easy to be installed, with good perpendicularity; the section of impeller is in cone shape while the stator is in radial pattern; it is with low wear, long service life and strong agitating strength. "U"-shaped cell reduces the ore settlement at the bottom of the cell; the spindle is with light structure and the stator is easily installed onto the bottom of cell. The installed power is low, saving 50% energy compared with A-type flotation machine; bubbles are dispersed homogeneously, air dispersion is fine, the foam is stable, the suspension of ore particles are good, and the recovery percentage is high.


    Application
    Material: coal, fluorite, talc, gold, molybdenum ore, nickel ore, fluorite ore, copper ore, antimony ore, zinc, and tungsten ore, etc.
    Flotation cell is suitable to separate non-ferrous black metals, and separate nonmetal, for example, coal fluorite e, and talc. The flotation machine can form a flotation separation loop by itself without any auxiliary equipment and it is allocated horizontally, which favors the change of flow.

    Parameter

    ModelsVolume of machine cellImpellerProduction capacityImpeller motorScraper blade motorRotating speed of scraper bladeDimensions of cellWeight/cell
    SpecificationsDiameterRotating speedModelsPowerModelsPowerLengthWidthHeight
    mmr/minm³/minkwkwr/minmmmmmmt
    BS-K444602250.5-4Y160L-87.5Y90L-61.1171850185015002.2
    BS-K886501901-8Y160L-615Y90L-61.1172250225017004.38
    BS-K16167501602-15Y225M-630Y90L-61.1172950272023829.23
    BS-K24249001604-24Y250M-837Y90L-61.1173200320028009.546
    BS-K383891014110-38Y250M-845Y90L-61.11736003600340012.687

    Why choose our company machine?


    Q1: Hi, are you a mining machinery manufacturer?
    Answer: Yes, we are a professional manufacturer of mining machine. Our company welcomes customers to visit our factory at any time.

    Q2: How long is the warranty period of your equipment? Does your company provide spare parts?
    Answer: The warranty period of our machine is one year. For those wearing parts, we guarantee to provide high-quality parts for a long time.

    Q3: How long does it take to deliver?
    Answer: Production usually starts after receiving the advance payment. Small machine is guaranteed to be delivered within one month. Large-scale machine is guaranteed to be delivered within 2-3 months.

    Q4: Do you provide machine operation guidance?
    Answer: Yes. We have professional engineers for installation, commissioning and operation guidance.
