ASME/ CSC/ISO / LR/T75 20FT LPG/CNG/Lo2/Ln2/CO2/Cooking Gas LNG
storage tank container
Product Details:
ISO Tank Container Introduction:
A tank container is built to the ISO Standard, making it suitable
for different modes
of transportation. Both hazardous and non-hazardous products can be
transported in tank containers.
parameter:
| Design codes and regulations | ASME VⅢ DIV 1--2019Ed |
| T75 UN PORTABLE TANK,IMDG,TIR,UIC,CSC,TC |
| CFR49,RID/ADR,ISO 1496-3,FRA,CGA 341 |
| TARE(kg) | 7710 |
| MPGM(kg) | 36000 |
| Stacking Load(kg) | 192000 |
| Contents | UN1073 | LOX |
| UN1977 | LIN |
| UN1951 | LAR |
| UN1972 | LNG |
| UN1038 | LC2H4 |
| UN1691 | LC2H6 |
| Type of insulation | High vacuum multi -layer |
| MAX .Filling rate | 0.95 |
| Design temperature MAX./MIN(℃) | -196/+50 |
| Material of shell | SA-240M 304 (INNER VESSEL) |
| Outer size (L×W×H) | 6058×2438×2591 |
| Full capacity(±1%) (m³) | 21 |
| Static evaporation rate(%/d) | LIN ≤0.34 |
| Seal-off vacuum degree(pa) | ≤0.08 |
| Liquid level gauge (MH2O) | 0~3(PN40) |
| M.A.W.P(MPa) | 1.60/－0.04 |
| Pressure gauge(mpa) | 0~4.0 grade 1.6 |

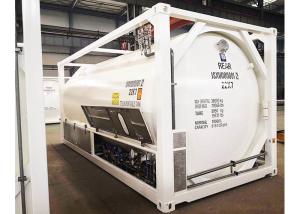

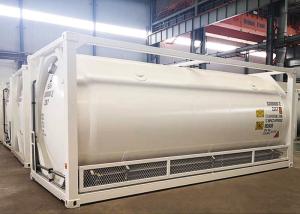

Image details:
Company Profile:
Henan Lishixin Logistics Equipment Co., Ltd is located in Zhengzhou
FTA,Henan Province,
China, with a registered capital of 3, 500, 000USD.Lishixin is
specialized in the R & D,
mass production and sales of kinds of the 20FT, 30FT, 40FT ISO
Storage Tank
Containers and Storage Tanks as well as other special logistic
Transportation
equipments.Based on rich transportation advantages and resource of
Central
China, Lishixin is committed to supply high quality and
cost-effective transportation
equipment for clients all over the world.
Main Products: ISO storage tank containers(Liquid tank
containers,Powder Tank containers,
Cryogenic tank containers, CNG Tank Container, Cryogenic Liquid Gas
Storage Tanks),
Cryogenic Tank Semi Trailer etc. Other logistic transportation
equipments.
International Market: Annual production capacity 8000units of the
Tank Containers,and the
annual total sales 3500units, Of which, we have exported more than
800units Tank containers,
Cryogenic Tank Semi Trailer to more 25 countries around the world,
including Mexico,
Columbia, Chile, Peru, Honduras, South African, Nigeria, Egypt,
Algeria, Saudi Arabia,
Turkey, Pakistan,Myanmar, Uzbekistan, Russia, Ukraine,
Philippines,Indonesia,
Malaysia, Bangladesh, etc. What's more, we have established
long-term semitrailer&tanks
supply contracts with more than 10 famous transportation&other
type of the enterprises in the world.
Certification:
our factory:
FAQ:
Q: What kind of Payment can you accept?
A: T / T and L/C is all right to us.
Q: Does your iso tank container meet with international
requirement?
A: All of our tank container will be approval by BV or LR or CCS
and meet with International Standard.
Q: How long will it takes to ship?
A: Around 15-25 working days.
Q: How about the Color , Specific configuration things?
A: It's up to you , most of them are optional and can be changed by
your needs.
