63 To 110MM Fully Automatic Production Line Single PPR Pipe
Extrusion Machine
SAIJIA MACHINERY
Continously Innovating And Manufacuturing Of Plastic Machinery
ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.
Our main products are: plastic pipe extrusion line and plastic
machine.
The main products are popular exported to international
market,including Russia,Australia, Southeast Asia,Middle East,East
Europe.Africa and other countries.

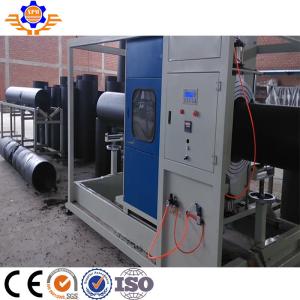

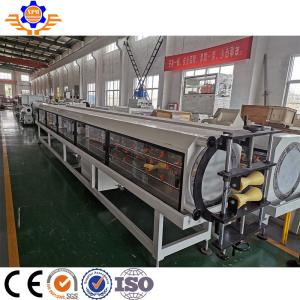

HDPE pipe extrusion line.
This series of HDPE pipe extrusion production line is mainly used
for water supply and drainage system pipes. With special equipment,
it can produce inner wall spiral pipe, inner wall hollow pipe, core
layer foam pipe, etc. It can also produce PP, HDPE, ABS, PPR, PEX,
silicon core tube and so on. It adopts PLC control system, which
makes the operation very convenient. The whole line has reached the
world advanced level.
Application.
Compared with traditional pipes, plastic pipes have significant
advantages such as light weight, corrosion resistance, low water
flow resistance, energy saving, simple and rapid installation, and
lower cost. At the same time, with the advancement of plastic
manufacturing technology, the types of plastic products have become
more diversified. Mainly used for: municipal engineering water
supply system, building indoor water supply system, water treatment
engineering pipeline system, industrial water pipes in gardens,
irrigation and other fields.
HDPE pipe extrusion line layout
| Model | Pipe range | Extruder model | Max. hauling speed | Extruder Motor power | Max. output |
| (mm) | (m/min) | (kw) | (kg/h) |
| XPM-63 | φ20-63 | SJ65/33 | 12 | 55 | 150 |
| XPM-110 | φ20-110 | SJ65/33 | 10 | 75 | 180 |
| XPM-160 | φ75-160 | SJ75/33 | 8 | 110 | 350 |
| XPM-250 | φ90-250 | SJ75/33 | 5 | 110 | 350 |
| XPM-315 | φ110-315 | SJ90/33 | 3 | 160 | 450 |
| XPM-450 | φ160-450 | SJ90/33 | 2 | 160 | 450 |
| XPM-630 | φ315-630 | SJ120/33 | 1.6 | 280 | 850 |
| XPM-800 | φ500-800 | SJ120/33 | 0.8 | 280 | 850 |
| XPM-1200 | φ710-1200 | SJ150/33 | 0.6 | 400 | 1200 |
| XPM-1600 | φ1000-1600 | SJ120/ 33&SJ90/33 | 0.3 | 280+160 | 1400 |
Product Paramenters
If you want to know more about Plastic Pipe Extrusion Line, inquiry
us now!
ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.
Zhangjiagang Saijia was established in 2000. The production
experience is mature and rich. Among them, it has been exporting
for more than 20 years, and more than 100 countries have exported.
The annual export turnover is about 15 million US dollars. Our
company's production base covers more than 50,000 square meters. ,
Modern office and production room more than 35,000 square meters,
with experienced high-quality staff team, first-class equipment,
perfect and effective quality assurance system, advanced and
complete testing equipment.
Workshop
We know the quality is the life of our company. Our company insists
to manufacture all machine units by ourselves in order to control
quality strictly by our quality inspectors. To implement this
concept, we have built our own tooling and CNC workshop. Even if
some parts from our certified supplier, our quality inspector will
check these parts before entering into our warehouse.
Warmly welcome to visit our workshop, and sincerely hope we can
have long term cooperation in near future!
Certificates
International certification, verification certificates of equipment
include:CE electrical certificate, CE mechanical certificate, ISO
quality management certificate, Nigerian quality certificate etc.
