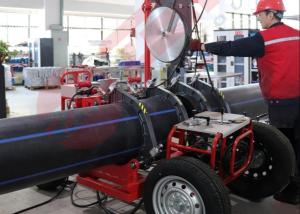

Field Hydraulic Butt Fusion Pipe Welding Machine are also called HDPE PIPE JOINTING MACHINE , Butt fusion welding
machine Polypropylene pipes thermofusion welding
equipment,hydraulic termofusion joining for polyethylene pipes and
pipe fittings,HDPE Butt Welding Equipment,Butt Welders,butt fusion
welder.

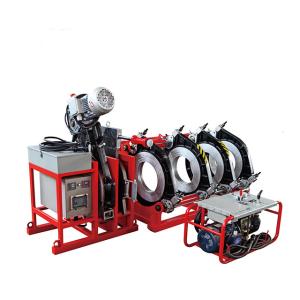

Field Hydraulic Butt Fusion Pipe Welding Machine Includes:

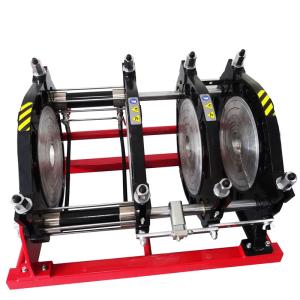

*A machine body with 4 clamps and 2 hydraulic cylinders with fast
couplings;
*A Teflon coated heating plate with separate temperature control
system;
*Self detaching device: helps removing the heating plate after
soaking process;
*A electrical milling cutter;
*Hydraulic hoses with quick couplings;
*Support for milling cutter and heating plate.
Available options:
Data logger
Support roller
Stub end holder
Electric Crane
Machine body trolley
Different inserts (single insert, ISO inserts)
Field Hydraulic Butt Fusion Pipe Welding Machine Specification
| Product Name | 24'' IPS Field Hydraulic Butt Fusion Pipe Welding Machine With
Crane & Trolley |
Model | SMD-B630/315H (12-24") |
Pipe size (Inch) | 12-24 Inch |
| Application | PE Pipe & Fitting Welding |
Heating plate Max. Temperature | 270℃ |
Temp.deviation in surface (170-250 ℃) | ≤±7℃ |
Pressures Adjustable Ranges | 0-8.0Mpa |
Working Voltage | 380/415V 50/60HZ , |
Heating plate power | 9.35KW |
Planing tool power | 1.5KW |
Hydraulic unit power | 1.5KW |
Total Power8.38 | 12.35KW |
Weight | 780KG |
Packing | Cases | 4 plywood cases |
Volume | 4.43CBM |
FAQ :
1. Who are we?
Zemo Welding Machinrey Co.,LTD (ZEMOWELD) is one of comprehensive
manufacturer of Thermoplastic Welding Equipment and an experienced
professional exporters in China since 2003 .
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Butt Fusion Machine,Electrofusion Welding Machine,PPR Welding
Machine,Automatic Plastic Welding Machine,Workshop Fitting Welding
Machine,HDPE Fitting,Plastic Pipe Tools
4. Why should you buy from us not from other suppliers?
1. Welding equipment has CE,ISO,BV, SGS certification, as well as
domestic welding industry laboratory CNAS certification. 2. 20
years of experience in welding machine export sales 3. Welder
supply range from 40mm to 3000mm
5. What services can we provide?
Accepted Delivery Terms:
FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit
Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian
All designed according to ISO21307:2011(E),ISO12176-1 and
DVS2207/1(08/2007)
International warranty: 24months.
Any parts broken or does not work under normal operating,we are
free to provide.
