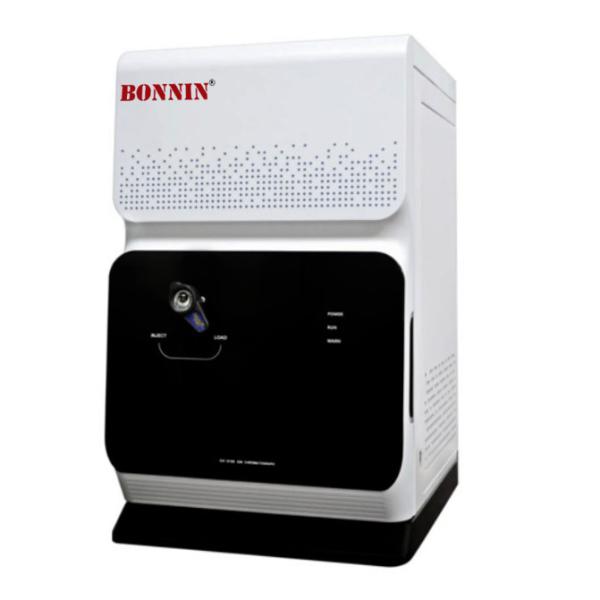

CIC-D100 IC Chromatograph Laboratory Equipment Ion Chromatography
System
The newly upgraded CIC-D100 ion chromatograph can easily test
anions, cations and other polar substances in different matrix
samples, and simultaneously separate ions with concentrations that
differ by 4 orders of magnitude. The test results are accurate and
reliable. The addition of functional highlights such as one-key
switch on and off takes the user experience to a higher level. It
is suitable for third-party testing institutions, enterprises,
environmental protection, chemical industry, mining and metallurgy
and other fields.
Features:
Simple, economical and practical
+ CIC-D100 ion chromatograph has been accepted by many customers.
Based on the latest needs of users, we produced a newly upgraded
CIC-D100.
+ Compared with the previous one, it is more accurate and reliable.
The new IC not only can detect anions, cations and other polar
substances in different matrix samples, but also separate ions with
four orders of magnitude difference.
+ Intelligent maintenance function is added to give users a better
experience. It is suitable for third-party testing institutions,
enterprises, environmental protection, chemical industry, mining
and metallurgy and other fields.
Technology advantage:
+ Built-in circulating 3D constant temperature technology
Temperature stability time is less than 30 mins, ensuring the
accuracy and reliability of test data.
+ The world's leading full-range series of ion chromatographic
columns.
+ High efficiency, large capacity of the columns for detecting ions
of varied compositions.
+ Self-Regenerating Electrolytic Micro-membrane Suppressor High
pressure resistance, small dead volume, highly responsive to
signals.
+ Auto-range Conductivity Detector
+ It can directly detect the signal from ppb to ppm without
adjusting the range; Only one conductivity detector can detect
anions and cations.
+ Observatory intelligent workstation
+ Integrated control; With intelligent start-up, shutdown
andmaintenance functions; Compatible with a variety of instruments;
Customized images.
Technical Parameter:
+ Built-in circulating 3D constant temperature technology
Temperature stability time is less than 30 mins, ensuring the
accuracy and reliability of test data.
+ The world's leading full-range series of ion chromatographic
columns.
+ High efficiency, large capacity of the columns for detecting ions
of varied compositions.
+ Self-Regenerating Electrolytic Micro-membrane Suppressor High
pressure resistance, small dead volume, highly responsive to
signals.
+ Auto-range Conductivity Detector
+ It can directly detect the signal from ppb to ppm without
adjusting the range; Only one conductivity detector can detect
anions and cations.
+ Observatory intelligent workstation
+ Integrated control; With intelligent start-up, shutdown
andmaintenance functions; Compatible with a variety of instruments;
Customized images.
Ion
Chromatograph ic Pump | Type | High-pressure and low-pulse two-piston tandem advection pump |
| Maximum Pressure | 42MPa |
Pressure Display
Accuracy | ≤0.1MPa |
Flow Stability | (0.2-0.5)mL/min≤3%; (0.5-1.0)mL/min≤2%;
＞1.0mL/min≤2%; |
Allowable Deviation of Flow | (0.2-0.5)mL/min , ±5%; (0.5-1.0)mL/min, ±3%; ＞1.0mL/min, ±2%; |
| Flow Range | 0.001~9.999mL/min |
| Pressure Pulse | ≤0.5% |
| Flow Precision | ≤0.1% |
| Flow Accuracy | ≤0.1% |
| Maximum Pressure | 35MPa |
Manual
Sample
Injector | External Diameter of the Tube | 1/16" |
| Contact Material of the Rotor | PEEK |
| Contact Material of Medium | PEEK/Ceramics |
Column
Heater | Operating Temperature Range | 20~60℃(68~140℉) |
| Controlling Temperature Accuracy | ±0.01℃ |
Allowable Deviation of
Column Heater’s Temperature | ±1℃ |
| Temperature Stability | ≤0.05℃/h |
Conduction
Detection System | Type | Constant temperature
auto-range conductivity detector |
| Cell Volume | ≤0.8μL |
| Detection Range | 0～35000μS/cm |
| Detection Resolution | ≤0.0020nS/cm |
| Output Voltage | -6000～+6000mv(adjustable) |
| Electronic Noise | 0.02nS |
| Baseline Noise | ≤0.001μS/cm |
| Baseline Drift | ≤0.02μS |
| Operating Temperature Range | Room temperature,+5℃~60℃(41 ~140℉) |
| Controlling Temperature Accuracy | ±0.001℃ |
| Temperature Compensation | 1.7 %/℃ |
| Maximum Pressure | 10.0MPa |
| Linear Range | ≥103 |
| Instrument Linearity | ≥0.999 |
| Quantitative Repeatability | ≤1.0% |
| Qualitative Repeatability | ≤0.5% |
Minimum Detectable Concentration | Cl-≤0.0005ug/mL;
Li+≤0.001ug/mL; BrO3-≤0.001ug/mL; |
Flow System | Plastic Flow Path | Made of PEEK materials |
Six-way Valve | PEEK material, pressure 5000psi;
Independent automatic
collecting and flow function. |
Suppressor | Type | Self-Regenerating electrolytic
micro-membrane suppressor |
| Maximum Pressure | 6.0MPa |
| Dead Volume | <50μL |
| Power Supply | 150W |
| External Size(L*W*H*) | 325*400*500 |
| Net Weight(KG) | 21 |
| Gross Weight(KG) | 28 |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least
1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will
prepare the machines and goods. Usually could ready within 10
working day, when dispatch, will inform client and send the
documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and
video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside
the machine?
Bonnin’s engineer could provide the solutions by email and video.
In warranty period, we can send spare parts for free and life-time
technical support for spare supply.
