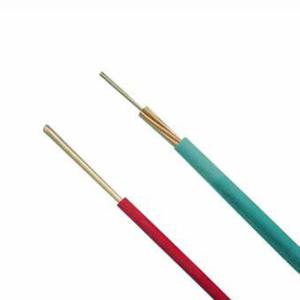

Mildewproof Single Core Single Strand Cable

    Buy cheap Mildewproof Single Core Single Strand Cable from wholesalers

    Buy cheap Mildewproof Single Core Single Strand Cable from wholesalers
    • Buy cheap Mildewproof Single Core Single Strand Cable from wholesalers
    • Buy cheap Mildewproof Single Core Single Strand Cable from wholesalers

    Mildewproof Single Core Single Strand Cable

    Ask Lasest Price
    Brand Name : HT
    Model Number : BV/RV
    Certification : CCC/CE
    Price : Consult customer service
    Payment Terms : T/T, L/C
    Delivery Time : 20~30 work days
    • Product Details
    • Company Profile

    Mildewproof Single Core Single Strand Cable

    Pure copper single core wire 1.0 / 1.5 / 2.5 / 4.0 / 6.0m2 environmental protection PVC insulated wire

    Purpose:General purpose single core hard conductor non sheathed wire, which is suitable for cables and wires for power plants, daily appliances, instruments and telecommunications equipment with AC voltage of 450 / 750V and below



    Specification and technical data of 450/750V wire

    Cross-sectional area
    Number of roots/diameter
    Largest diameter
    Conductor resistance at 20℃
    0.51/0.82.736
    0.751/0.972.824.5
    11/1.13318.1
    1.5(A)1/1.383.312.1
    1.5(B)7/0.523.512.1
    2.5(A)1/1.783.97.41
    2.5(B)7/0.684.27.41
    4.0(A)1/2.254.44.61
    4.0(B)7/0.854.84.61
    6.0(A)1/2.754.93.08
    6.0(B)7/1.045.43.08
    107/1.3571.83
    167/1.781.15
    257/2.14100.727
    357/2.5211.50.524
    5019/1.78130.387
    7019/2.14150.268
    9519/2.5217.50.193
    12037/2.03190.153
    15037/2.25210.124
    18537/2.5223.50.0991
    24061/2.2526.50.0754
    30061/2.5229.50.0601
    40061/2.85330.047
