Cnc Pipe Rolling Machine Tube Hydraulic Aluminium Profile Bending Machine

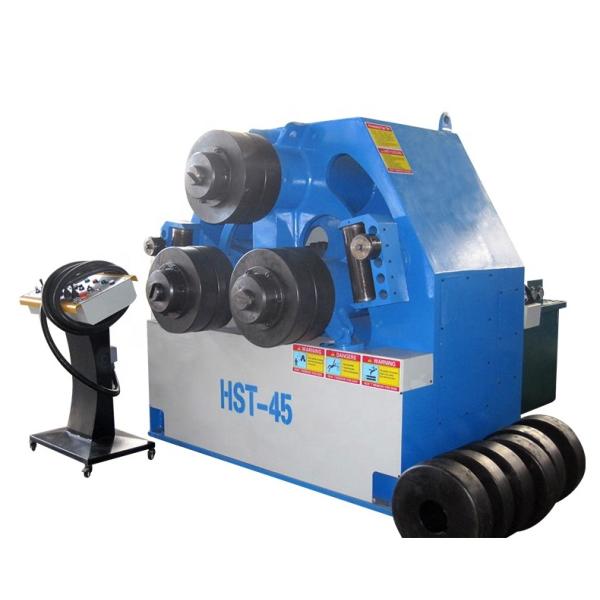

W24S Series full hydraulic profile bending machine pipe rolling machine

Standard specification:

• 1 set of standard hardened and ground rolls (special steel)

• All rolls Planetary/Gear – Hydro motor Driven

• 3-axis hardened side supports with hydraulic forward-backward movement and mechanical up-down and right-left movement

• Side supports are suitable for angle iron bending leg in -Leg Out

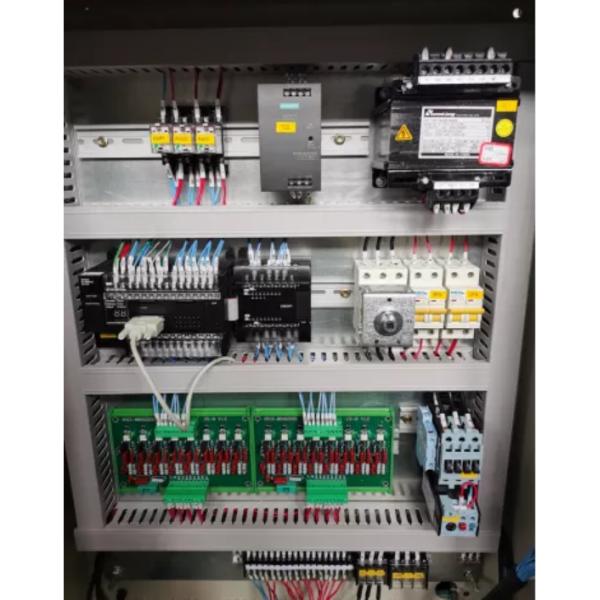

• Portable control panel

• Horizontal and Vertical operation

• Body constructed of stress-relieved steel

• Overload protection on hydraulic and electrical systems

• Bottom rolls hydraulically adjustable with digital readout

Working process:

Technical Parameter:		W24S
		6	16	30	45	75	100
Profile bending Mold(Max)		6	16	30	45	75	100
Coiling Speed(m/min)		6				5
Yielding Limit of Sheet Matal(mpa)		S=250
	Profile(Max) mm	40*5	70*8	80*8	90*10	100*10	120*12
	Bending diameter (Min)mm	800	1000	1200	1500	2000	2500
	Profile(Min)mm	20*3	30*3	35*3	36*5	38*4	40*5
	Bending diameter (Min)mm	400	550	560	600	600	720
	Profile(Max)mm	50*5	80*8	90*10	100*10	120*12	140*16
	Bending diameter (Min)mm	800	1000	1100	1300	1600	1800
	Profile(Mix)mm	20*3	30*3	35*3	36*5	38*4	45*5
	Bending diameter (Min)mm	400	550	500	600	700	760
	槽钢型号	8	12	16	20	25	28
	Bending diameter (Min)mm	600	800	800	1000	1100	1700
	Material	8	12	16	20	25	28
	Bending diameter (Min)mm	700	900	1000	1150	1600	1700
	Profile(Max)mm	100*18	150*25	180*25	200*30	220*40	250*40
	Bending diameter (Min)mm	600	700	800	900	1000	1200
	Profile(Max)mm	50*12	75*16	90*20	100*25	110*40	120*40
	Bending diameter (Min)mm	500	760	800	1000	1100	1300
	Profile(Max)mm	42*4	76*4.5	89*5	89*8	114*5	159*5
	Bending diameter (Min)mm	500	750	900	900	1200	2000
	Profile(Max)mm	38	52	62	75	85	90
	Bending diameter (Min)mm	450	600	600	800	1000	1100
	Profile(Max)mm	45*3	60*4	70*4	80*6	90*8	100*10
	Bending diameter (Min)mm	750	900	1000	1200	1600	2000

PSL (Wuhan)  has rich experience in design, manufacture and sales more than 25 years. We are one integration supplier focussed on Sheet metal processing equipment, Metal pipes of profiles machining, Lasers application and kinds of automatic production lines.  such as 1) NC/CNC Press Brakes, 2) NC/CNC Shears, 3) Laser Cutting machine, 4) Laser Welding machine, 5) Rolling machine, 6) Punching Press, 7) Ironworker, 8) Duct production line, 9) Cut-to-length production line, 10) Slitting line, 11) Foam Sealing Spraying machine, and so on.

With high effective communication and quality service in mind, we strive to bring even better products to our clients through our continuous effort and a crew dedicated towards improvement.

With customizations from our own in house design, Our machinery are made efficient and reliable with rigorous testing. We strive to provide our clients with an pleasant  experience with our after-sale service. PSL will always be the comerstone and partner of your career.

We are always looking forward to work and grow with you.
