    4 Ton Hydraulic Puller Tensioner OPGW Installation Tools for OPGW Stringing

    Ask Lasest Price
    Brand Name : SHENHONG
    Model Number : SA-YQZ40C
    Certification : ISO
    Price : USD17000-2000
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 30 workdays after deposit
    • Product Details
    • Company Profile

    4 Ton Hydraulic Puller Tensioner OPGW Installation Tools for OPGW Stringing

    4 Ton Hydraulic Puller Tensioner OPGW Installation Tools for OPGW Stringing​

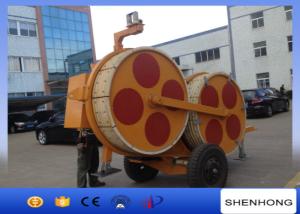

    1.SA-YQZ40C Hydraulic Puller-Tensioner

    Item No.07223
    ModelSA-YQZ40C
    Stringing capacity1 conductor or pilot wire rope
    Max. Pull / Tension Force (KN)40/40
    Continuous Pull / Tension Force (KN)35/35
    Max. Pull / Stringing Speed (km/h)5/5
    Diameter of wheel (mm)Φ1200
    Number of grooves5
    Max. Conductor Diameter (mm)Φ32
    Model of Diesel EngineCummins water cooled
    Power of Diesel Engine60 KW
    Rotate Speed of Engine (rpm)2000
    Weight (kg)3800
    Dimension (m)4.17 x 1.85 x 2.4

    Application:

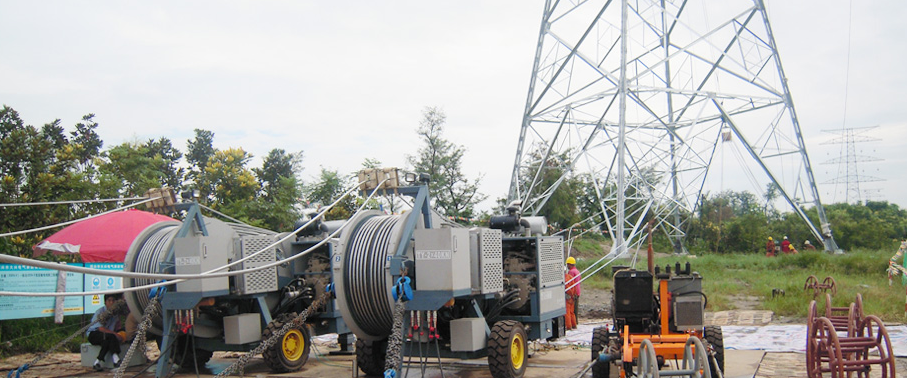

    The universal unit can serve as a tensioner or a puller as desired, for stringing various conductors or earth wires. It is ideal for retrieving operation, by using the old conductor or earth wire as the pulling rope, for changing new conductor or OPGW cable.


    Features:

    - With closed hydraulic circuit and variable displacement plunger pump, the pull/ tension force could be step less controlled.

    - With the radiator imported fromGermany, the machine has good heat dissipate performance.

    - With a negative spring applied brake, and automatic overload protection.

    - With rigid axle for towing at high speed, the machine looks beautiful.

    - With automatic hydraulic reel winder system

    - With hydraulic power take off to power a take-up reel stand or steel rope take-up carriage.

    - Heavy duty R-tires with excellent shock-absorbing performance.


    Main Components:

    - Main variable displacement pump: Rexroth

    - Diesel Engine: Cummins water-cooled diesel engine

    - Hydraulic instrucments: (German)

    - Radiator: AKG (German)
