    SC LC FC ST Connector OTDR Launch Box Single Mode 4KM OM4 OM3

    Singlemode SC/LC/FC/ST Connector single mode 4KM G652D, G657A, OM1, OM2, OM3, OM4 Cable 1-20km OTDR Launch Cable Box

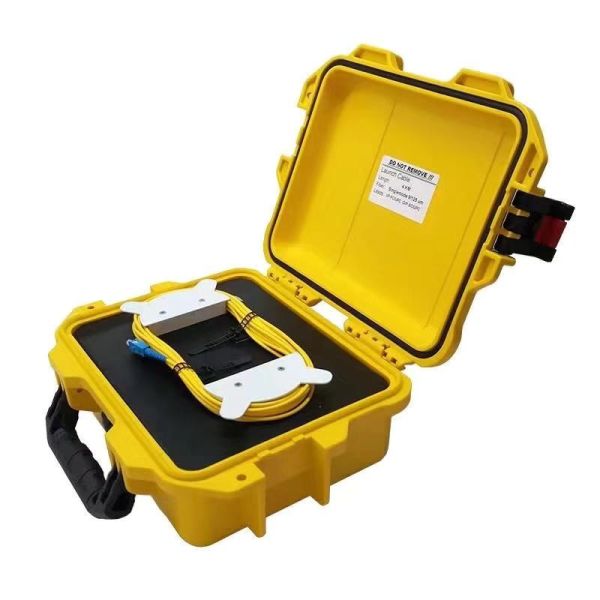

    OTDR Launch Cable Box

    OTDR Launch cable is designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Available in different configurations and fiber lengths.

    Complied with or exceeds Standard

    * ITU-T G652.D, G656.A
    * ITU-T G651.1 OM1 OM2 OM3 OM4
    * IEC60793-2-10 Type A1a.1/A1b OM1/OM2, Type A1a.2 OM3, Type A1a.3 OM4
    * Telcordia (formerly Bellcore) GR-326-CORE
    * RoHS Compliant Directive 2011/65/EU

    Feature

    * Standard boxes along with custom configurations for OTDR applications.
    * Compact and rugged packaging.
    * Portable for field use.
    * Prevents fiber damage and ensures accurate results.
    * Pulse suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration.
    * Compound latch for positive seal and easy opening with locking feature.
    * Water and dust prove allowing the unit to be taken into almost any environment.
    * Case can house up to 2,000 meters of fiber.
    * Auto Purge Valve for changes in altitude and temperature.

    Applications

    * Use as OTDR launch/receive cable.
    * Test link loss with an OTDR.
    * Measure insertion loss and reflectance of near/far end connector.
    * Pulse suppressor for the first reflection at the beginning of a fiber.
    Mechanical & Environmental Characteristics
    Dimension 1 (The small size)23.8CMx 14.1CM x 6.7CM
    Dimension 2 (Large size)30.4CMx 24.8CM x 12CM
    MaterialSR Polypropylene
    ColorYellow
    Weight0.75kg/3.5/kg without fiber
    PackagingRugged, hard-shell transit case
    Storage Temperature-40O to +85O C
    Operating Temperature-40O to +85O C
    Humidity0 to 95%, non-condensing

    Fiber & Connector Characteristics
    Fiber TypesG652D, G657A, OM1, OM2, OM3, OM4
    Fiber Length (m)100 up to 20000 (max)
    Lead Length2 Meters, 3mm buffer
    Typical Loss<0.5dB @ 1310 for 1000 meters
    Connector TypeSC/LC/FC/ST
    PolishPC, UPC, APC
    Return Loss*UPC>=50dB, APC>=60dB, PC>=35dB
    Repeatability (dB)<=0.2 (1000 times)
    Exchangeability (dB)<=0.2
