CF Series Cylindrical Outer Ring Slot Type Flat Cam Follower CF24 CF24UU

    Buy cheap CF Series Cylindrical Outer Ring Slot Type Flat Cam Follower CF24 CF24UU from wholesalers

    Buy cheap CF Series Cylindrical Outer Ring Slot Type Flat Cam Follower CF24 CF24UU from wholesalers
    • Buy cheap CF Series Cylindrical Outer Ring Slot Type Flat Cam Follower CF24 CF24UU from wholesalers

    CF Series Cylindrical Outer Ring Slot Type Flat Cam Follower CF24 CF24UU

    Ask Lasest Price
    Brand Name : SUMA
    Model Number : CF24 CF24UU
    Certification : ISO SGS
    Price : USD5-USD6 PER PIECE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union,Paypal
    Supply Ability : 100000 PCS PER MONTH
    Delivery Time : 3-5 Days
    • Product Details
    • Company Profile

    CF Series Cylindrical Outer Ring Slot Type Flat Cam Follower CF24 CF24UU

    CF Series Cylindrical Outer Ring Slot Type Flat Cam Follower CF24 CF24UU

    Features of Flat Cam Follower

    CF Series is a popular type of Cam Follower provided with a driver groove on the head of the stud.
    A highly corrosion resistant stainless steel type (symbol M) is also available.

    Model CF , Cylindrical Outer Ring, Flat Head Slot Type

    Model CF-R , Spherical Outer Ring, Flat Head Slot Type

    Dimensions and Capacities of Flat Cam Follower

    Stud

    Diameter


    d

    Model

    No.

    Main dimensions MM

    Outer diameter


    D

    Outer ring width


    C

    Threaded


    G


    G1


    B

    Overall length

    B1


    B2


    B3


    C1


    d1


    d2


    rsmin

    Shoulder height

    f (Min.)

    5CF 5139M5×0.87.51023130.53.10.39.7
    6CF 61611M6×181228160.640.311
    8CF 81911M8×1.25101232200.640.313
    10CF 102212M10×1.25121336230.640.315
    10CF 10-12612M10×1.25121336230.640.315
    12CF 123014M12×1.51315402560.6630.620
    12CF 12-13214M12×1.51315402560.6630.620
    16CF 163518M16×1.51719.55232.580.8630.624
    18CF 184020M18×1.51921.55836.580.863126
    20CF 205224M20×1.52125.56640.590.884136
    20CF 20-14724M20×1.52125.56640.590.884136
    24CF 246229M24×1.52530.58049.5110.884140
    24CF 24-17229M24×1.52530.58049.5110.884140
    30CF 308035M30×1.532371006315184146
    30CF 30-18535M30×1.532371006315184146
    30CF 30-29035M30×1.532371006315184146

    Basic load rating

    Maximum permissible load

    F0

    kN

    Track load capacityRotational speed limit *Mass

    Model

    No.

    With cageFull rollers

    Cylindrical outer ring


    kN

    Spherical outer ring


    kN

    With cage


    min-1

    Full rollers


    min-1


    With cage

    g


    Full rollers

    g

    C

    kN

    C0

    kN

    C

    kN

    C0

    kN

    CF 53.142.771.422.250.532900010.5
    CF 63.593.586.948.52.113.431.08250001100018.519
    CF 84.174.658.1311.24.734.021.3720000870028.529
    CF 105.336.789.4214.35.814.71.671700072004546
    CF 10-15.336.789.4214.35.815.492.061700072006061
    CF 127.879.7913.419.89.377.062.451400058009597
    CF 12-17.879.7913.419.89.377.452.74140005800105107
    CF 161218.320.637.617.311.23.14100004500170173
    CF 1814.725.225.251.326.114.43.7285003800250255
    CF 2020.734.833.264.832.123.28.2370003400460465
    CF 20-120.734.833.264.832.1217.1570003400385390
    CF 2430.653.246.792.949.534.210.565002900815820
    CF 24-130.653.246.792.949.539.812.96500290011401140
    CF 3045.487.667.614573.752.614.95000230018701870
    CF 30-145.487.667.614573.75616.15000230020302030
    CF 30-245.487.667.614573.759.317.35000230022202220

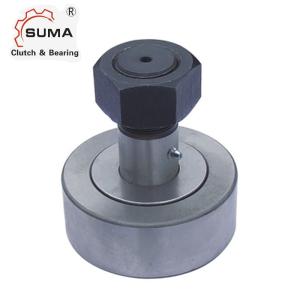

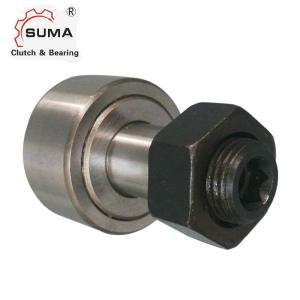

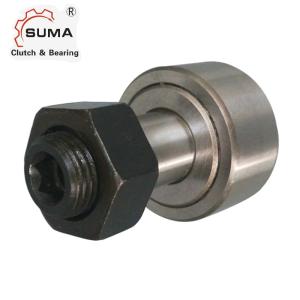

    Pictures of
    Flat Cam Follower
