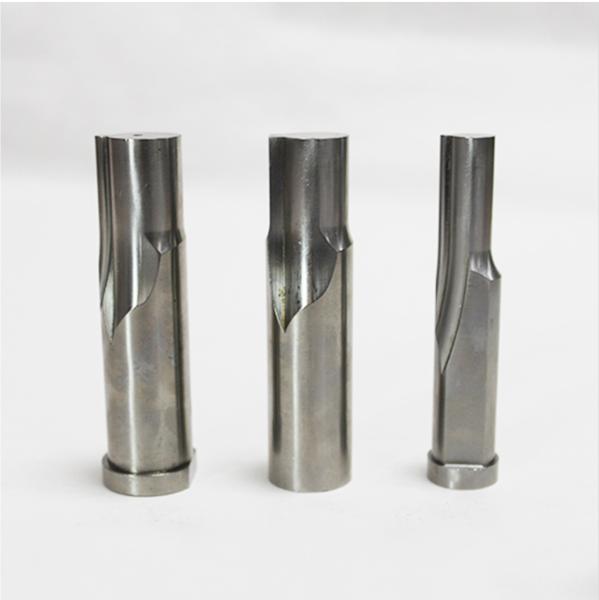

SKD51 Custom-Made Non Standand Special-Shaped Punch And Press Die
Set
Process
1. It is easy to ensure the precision of each working surface of
the workpiece; when machining, the workpiece rotates around a fixed
axis, and each surface has the same rotation axis, so it is easy to
ensure the coaxiality between the processing surfaces.
2. The cutting process is relatively stable; in addition to the
discontinuous surface, the lathe machining process is generally
carried out continuously, unlike milling and planing, in the
process of one pass, the cutter has multiple cuts and cuts,
resulting in Impact.
3. Suitable for the finishing of non-ferrous metal parts; some
non-ferrous metal parts, because of the low hardness of the
material itself, plasticity is better, it is difficult to obtain a
smooth surface with other processing methods.
4. The tool is simple; the turning tool is the simplest one of the
tools, manufacturing, sharpening and installation are very
convenient, which is convenient to select a reasonable angle
according to the specific processing requirements.
BG has 13 years of experience in mold parts processing and
customization, 1600㎡ workshop, 55 advanced equipment for
professional processing, 20,000 pieces per day, fast delivery, a
variety of mold parts industry experience and more than 10 years of
experience in the masters of the elite production team, superb
technology , Ingenious production, 23 advanced testing equipment,
100% full inspection of shipments, and delivery inspection reports
are provided to ensure quality.
Your Success, our Business!
Thanks for paying attention to us and we sincerely hope to have
good business with you!
Products Information:
| Steel:HSS , ASP23,Carbon steel, ASSAB Steel, 1.2379, Q235, 1.2842,
C45# etc. |
Stainless Steel: 303 / 304 / 316 / 416 / etc. |
Aluminum: AL7075,AL6061,AL5052 etc. |
Titanium: Grades 1-4 Grade 5 Grade 9 etc. |
Tungsten Carbide:YG6, YG6X, YG8, YG8x, YG8A, YG8N, YG10, YG13X,
YG13, YG15X, YG15, YG18X, YG18, YG20 etc. |
Brass,Copper,Bronze etc. |
Plastic: ABS, PC, PE, POM, Delrin, Nylon, Teflon, PP,PEI, Peek etc. |
| Polishing, Sandblasted,Anodizing, Chrome plating, Zinc plating,
Nickel plating, Laser engraving, PVD coating etc. |
| Accuracy Of Machining:+/-0.005mm, Accuracy Of
Grinding:+/-0.005mm,Surface
Roughness:Ra0.4,Parallelism:0.01mm,Verticality:0.01mm
Concentricity:0.01mm |
| Ra0.1-Ra3.2/ Also can be customized |
| Sampling: 7-10 workdays Normal making: 10-12 workdays Complex design/making: 15-20 workdays Any urgent case,let us know, will try best to help. |
| Strictly IQC---PQC---OQC |
| Service | One Stop Service. Machining-assembly |
Business Range
Manufacturing & inspection capacity in steel, stainless and copper

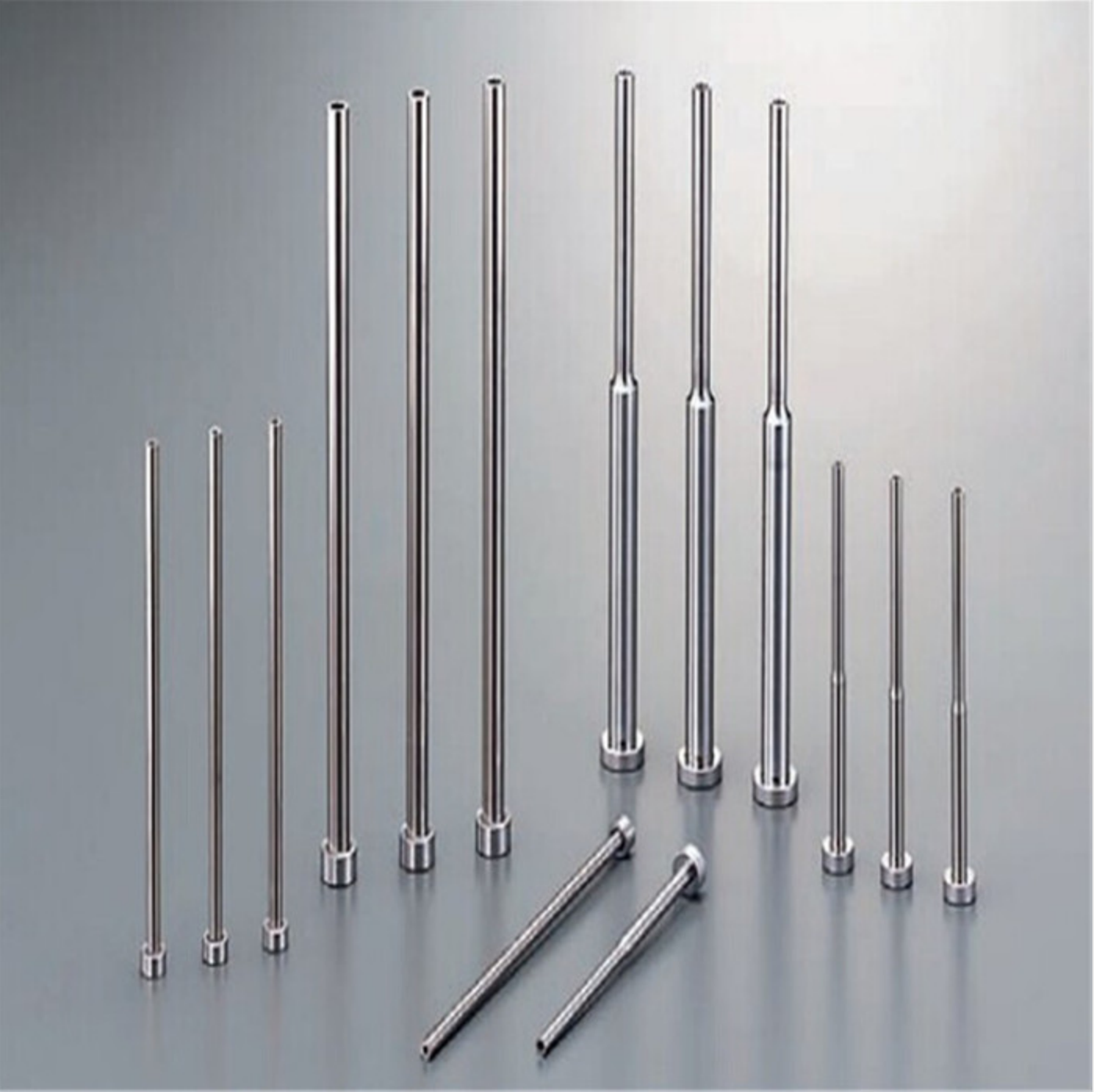

materials for precision mould parts,Cavity pins, core
pins,Punches,Ejector sleeve,CNC machining parts and all other
precision non standard mould components, etc...
Services:CNC machining,CNC Milling,Sodick EDM,Sodick Wire-cut,OD
grinding,ID grinding,Surface grinding,Thread grinding,Polishing
etc..
Industries Served: Medical/Packaging/Aerospace/Electronic
If you have some questions about plastic moulds, or want to know
more about auto mould parts, medical mould parts, packaging mould
parts, cosmetic mould parts, connector mould parts etc. Welcome to
contact us!
Equipment&Inspection List
| Machine Name | Machine Type | Machine Size(mm) | Qty | Accurcy |
| Table Lathe | She Hong YB15*YB25 | ∮0.3～∮25 | 5 | ±0.02 |
| Centerless grinder | Hartmann | ∮0.30*∮70.0 | 3 | ±0.001 |
| High Precision Centerless Grinder | Taiwan Jainnher JHC-12S | ∮0.30*∮70.0 | 4 | ±0.001 |
| Plane Grinder | Dawn/Joen Lih | 150～350 | 8 | ±0.001 |
| Grinding of outernal diameter | Taiwan Zhengjia | ∮0.60～∮70.0 | 8 | ±0.001 |
| Grinding of internal diameter | Taiwan Zhengjia | ∮0.2*∮55.0 | 4 | ±0.002 |
| CNC | TAKISAWA | 400*300*270 | 6 | ±0.005 |
| EDM | Sodick AD32LS | 300*200*200 | 4 | ±0.002 |
| W-EDM | Seibu/Sodick | 0～500 | 4 | ±0.002 |
| Testing equipment | Type&Name | inspection Size | Qty | Ispection Accuracy |
| Projector | Marriott PJ-H300 | X:0～95 Y:0～35 | 3 | ±0.001 |
| Projector | Nikon V-12B | 150*200 | 2 | ±0.001 |
| High Gauge | Japan Mitutoyo | 0～50mm | 4 | ±0.001 |
| Roundness Test Instrument | Tokyo Precision 43C-S | 0～200mm | 1 | 0.2μm |
| NIKON Altimeter | MFC-101 | 0～50mm | 2 | ±0.001 |
| Altimeter | Dantsin V5 | 0～400mm | 1 | ±0.0015 |
| Rockwell Hardness Tester | Gaofeng HR-150A | | 1 | ±1.5C |
| Plug gauge | Japan Mitutoyo | | 2 | ±0.001 |
| Caliper | Japan Mitutoyo | 0～125mm | 10 | ±0.001
|
Q1.When can I get the price?
A :We usually quote within 24 hours after we get your inquiry. If
it is very urgent, please call us or tell us in your email so that
we will regard your inquiry as priority.
Q2.How long is the lead time for mold?
A :It depends on the mold’s size and complexity. Normally, the lead
time is 25-35 days. If the molds are very simple and not in big
size, we can work out with 15 days.
Q3.I have no 3D drawing, how should I start the new project?
A :You can provide us a sample, we will help finish the 3D drawing
design.
Q4.Before shipment, how to make sure the products quality?
A : We are specialized in high quality products. We have QC to
inspect the products before each shipment. You can come to visit
our factory or ask a third party for inspection. Or we can send you
videos to show the production process.
Q5. How could I pay them?
A : Paypal, Western Union, T/T, L/C are acceptable, so just let us
know which is convenient for you.
Q6.Can I get discounts?
A : Yes, for big order, old customer and frequent customers, we
give reasonable discounts.
Q7.Which Shipment way is available?
A : By sea to your nearest port.
By air to your nearest airport.
By express (DHL, UPS, FEDEX, TNT, EMS) to your door.
