    DC drive Omron PLC CP1E 2A CPU Module CP1E-N20DR-A RS232C USB 2.0

    Ask Lasest Price
    Brand Name : Omron
    Model Number : CP1E-N20DR-A
    Price : $50-500
    Supply Ability : 10pc/per week
    Payment Terms : T/T, western union
    MOQ : 1 PC
    • Product Details
    • Company Profile

    DC drive Omron PLC CP1E 2A CPU Module CP1E-N20DR-A RS232C USB 2.0

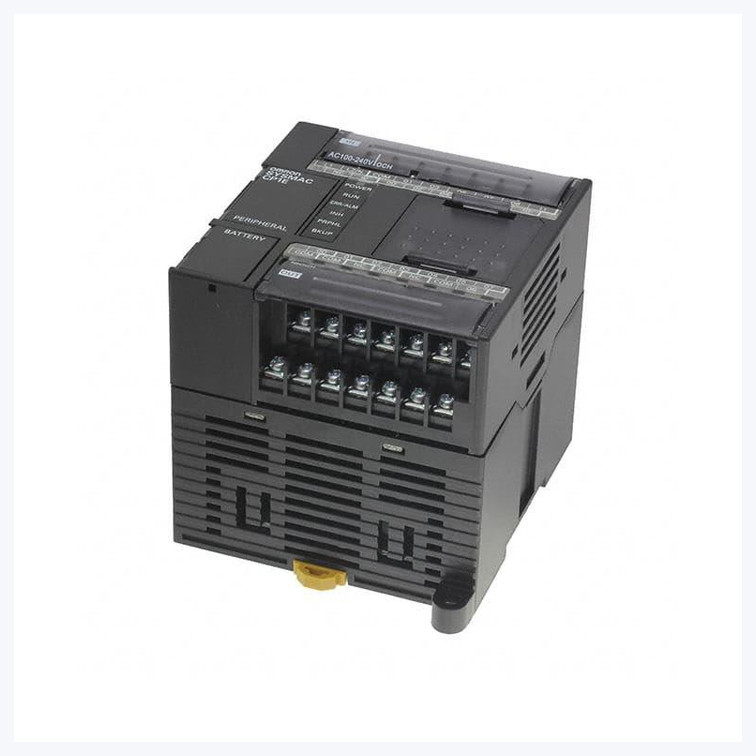

    100% Original and brand new Japan CPU module PLC CP1E-N20DR-A


    Exceptional Cost

    Responding to Global Competition with More Device Control Possibilities

    Windows is registered trademarks of Microsoft Corporation in the USA and other countries.
    Other company names and product names in this document are the trademarks or registered trademarks of their respective companies.

    Simple and User Friendly

    Intuitive control with “Smart Input.”

    Easy to use input editor with smart input function [All Models]

    When you begin typing an instruction from the keyboard in Ladder Editor Mode,suggested instructions are displayed and the addresses are automatically entered.
    Connecting lines are added automatically based on the cursor position, enabling intuitive ladder programming.

    Easy Input Editor

    Instruction and Address Input Assist Functions

    CP1E Features 8

    When you begin typing an instruction from the keyboard while in the Ladder Editor Window, suggested instructions are displayed. All you have to do is select the instruction from the list for easy input even if you do not remember the entire mnemonic.

    Address Incrementing

    CP1E Features 9

    The address of the next operand, including input bits and output bits, is incremented by one and displayed as the default. This enables easily inputting consecutive addresses.

    User-friendly Ladder Program Input

    Automatic Connecting Line Insertion

    CP1E Features 11

    With the automatic connecting line insertion function the necessary connection is added automatically based on the curser position.

    Automatic Column Insertion When Inserting Instructions

    CP1E Features 12

    The column is automatically inserted when an instruction is added even if the curser is above another instruction.

    Easy to reuse ladder programming

    Copying with Address Incrementing

    CP1E Features 14

    To create the same group of ladder instructions more than once with the address addition copy function, the instructions can be reused simply by inputting an address offset.

    Intuitive Menu Structure

    Intuitive Menu Display

    CP1E Features 16

    An intuitively designed menu structure makes it easy to see the overall system simply by looking at the menu for smooth operation without referring to a manual.

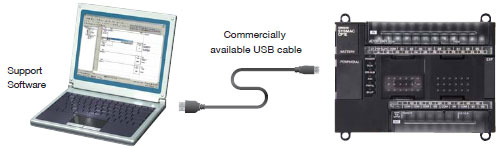

    Only commercially available USB cables required [All Models]

    All CP1E CPU Units use high-speed USB for the peripheral port. Support software (computers) can be connected using commercially available USB cables. Without the need for USB conversion cables or special cables, connection is easier and cable cost is low.

    CP1E Features 17

    The depth of CPU Units with RS-232C connectors is reduced by 20 mm [Renewal type]

    6 mm slimmer than the normal type.

    CP1E Features 18

    Efficient and Effective

    Flexibly handle even small-scale systems.
    Various Option Units available for increased expandability.

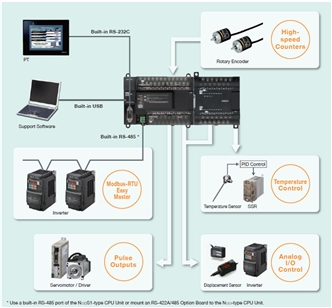

    More Applications with AdvancedControl Capabilities and Functionality [Application Models]

    The Application Models (CP1E-N[][]/N[][]S(1)) are equipped with high-speed counters, pulse outputs, and a built-in serial port(s).
    In addition, using the Expansion Unit and Option Board, you can control a wide range of devices.

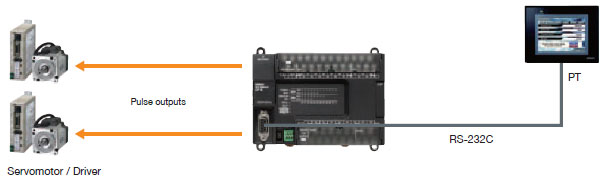

    Pulse Outputs [Models with transistor Output]

    Two 100kHz pulse outputs for high-precision position control.

    CP1E Features 21

    High-speed Counters*

    Control multiple axes with one PLC using the two 100kHz and four 10kHz, single-phase high-speed counters.
    * The Basic Models are equipped with six 10kHz, single-phase high-speed counters.

    Modbus-RTU easy master

    Specify Inverter speeds via RS-485

    CP1E Features 23

    Analog I/O Control

    High-accuracy analog I/O control with a resolution 1/12,000.
    You can add up to 4 analog I/O by mounting an Analog Option Board and up to 24 analog I/O by connecting Expansion Units.

    CP1E Features 24

    Temperature Control

    The combination of the Temperature Input Unit with the PID instructions enables temperature control.
    Up to 12 thermocouple inputs per Unit for CP1W-TS004.

    CP1E Features 25

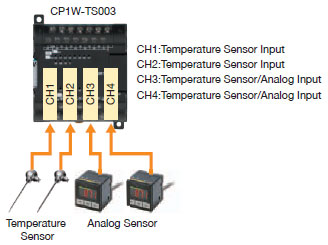

    The CP1W-TS003 has two inputs that can be used for temperature sensor or analog inputs.
    Both temperature sensor and analog inputs can be achieved with only one Unit.

    CP1E Features 26

    Serial PLC Links

    Link data with up to 10 words between up to nine CP1E-N CPU Units when controlling a device with multiple CP1E-N PLCs.

    CP1E Features 27

    Ethernet Communications

    Mount a CP1W-CIF41 Ethernet Option Board to an option board slot on the CP1E-N/NA type CPU Unit.
    Perform monitoring and programming with CX-Programmer,or communicate with a host computer via Ethernet.(server function only)

    CP1E Features 28

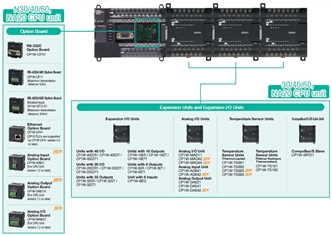

    Optional units for more flexibility

    An option board for an additional Serial or Ethernet communication port can be added to the N30/40/60 and NA20 CPU Unit. Three expansion units are available.
    * The Option Board cannot be mounted to the CP1E-N□□S/N□□S1.

    CP1E Features 29

    SPECIFICATION:


    AttributeValue
    For Use WithCP1E Series
    Manufacturer SeriesCP1E
    Number of Inputs12
    Output TypeRelay
    Input TypePulse
    Voltage Category85 → 264 V ac
    Number of Outputs8 (Relay)
    Network TypeUSB
    Communication Port TypeRS232C, USB 2.0
    Program Capacity32 kB
    Mounting TypeDIN Rail
    Programming Language UsedLadder Logic
    Programming InterfaceComputer
    Minimum Operating Temperature0°C
    Number of Communication Ports2
    Maximum Operating Temperature+55°C
    Memory32 (Program Memory) kB, 8000 (Data Memory) Words
    Output Current2 A
    Battery BackupYes
    Width110mm
    Length86mm
    Depth85mm
    Dimensions86 x 110 x 85 mm
