CB/T497-1994 COARSE WATER FILTER, SUCTION COARSE WATER FILTER AND CB/T497-2012 COARSE WATER FILTER, SUCTION COARSE WATER

CB/T497-2012 Crude Water Filter - Suction Coarse Water Filter
Straight-through coarse water filter - Straight-through suction primary water filter CB/T497-2012
SUCTION WATER FILTER-SEA WATER FILTER

Nominal diameter DN400 coarse water filter - suction coarse water filter According to its import and export mode can be divided into:

A, AS type straight-through coarse water filter - straight-through suction coarse water filter
BL, BR type right angle type coarse water filter - straight-through type suction coarse water filter

CB/T497-1994 coarse water filter, suction coarse water filter and CB/T497-2012 coarse water filter, suction coarse water filter Difference:

CB/T497-1994 This standard coarse water filter uses a sedimentation disc cartridge in the internal filter cartridge.
CB/T497-2012 standard is based on the old standard CB/T497-94 to change the filter cartridge type to a basket type, which is more convenient for the future cleaning and maintenance of the ship.

Here we introduce in detail the new standard AS400 CB/T497-2012 suction coarse water filter, seawater filter:

This time, we delivered a non-standard water filter of DN400 on the ship built by (Dalian Shipbuilding Heavy Industry Co., Ltd.), the original drawing is as follows:

As can be seen from the above drawings, the vertical foot of this DN400 suction coarse water filter is different from our standard flat foot.
In order to ensure faster and more convenient installation, we produce according to strict drawings and deliver smoothly:

Straight-through coarse water filter, straight-through seawater filter ZMS-A400 CB/T497 Main parts material :

About the suction coarse water filter ZMS-A400 CB/T497, seawater filter ZMS-A400 working principle and maintenance clear steps:

This straight-through suction coarse water filter filter is mainly composed of nozzle, main pipe, filter basket, flange, flange cover and fasteners. When the liquid passes through the main pipe into the basket of the seawater filter

Solid impurity particles are blocked in the basket, and the clean fluid is discharged through the basket and through the filter outlet.
When it is necessary to clean the filter, unscrew the screw plug at the bottom of the main pipe,

Drain the fluid, remove the flange cover, clean it and reload it. Therefore, it is extremely convenient to use and maintain.

Yangzhou Feihang Ship Accessories Factory produces CB/T497 suction coarse water filter, suction seawater filter
process:

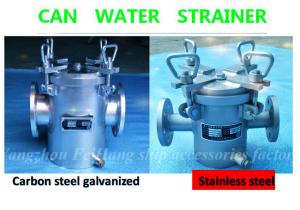

ZMS-A400 CB/T497-2012 through type coarse water filter, straight through type seawater filter products are as follows:

Suction coarse water filter ZMS-A400 CB/T497-2012
Pipe basket seawater filter ZMS-A400 CB/T497-2012
Marine seawater cooling system coarse water filter, right angle type suction coarse water filter ZMS-A400 CB/T497-2012
Main seawater pump imported coarse water filter, straight-through seawater filter ZMS-A400 CB/T497-2012
Auxiliary seawater pump import suction coarse water filter ZMS-A400 CB/T497-2012
Freshwater pump inlet straight-through seawater filter ZMS-A400 CB/T497-2012
ZMS-A400 CB/T497-2012 bulk seawater pump import seawater filter
Daily freshwater pump stainless steel inlet straight-through coarse water filter ZMS-A400 CB/T497-2012
Air conditioning seawater pump inlet suction coarse water filter ZMS-A400 CB/T497-2012
Bilge fire pump inlet straight-through coarse water filter ZMS-A400 CB/T497-2012

Marine coarse water filter, ship basket seawater filter qualified production and manufacturing unit-Yangzhou Flying Ship Accessories Factory! At the same time, our factory can accept customers to process non-standard coarse water filter non-standard seawater filter.

Yangzhou Flying Ship Accessories Factory Delivery site:

Yangzhou Feihang Ship Accessories Factory is a production enterprise specializing in marine pipe fittings, marine hydraulic valve parts and marine interior armored products.

The marine accessories produced by our company are complete in specifications, such as cast iron, cast steel, bronze and stainless steel, which are widely used in ships, oil and offshore platforms.

All products implement one-stop production line operation, and strictly implement the ISO9001-2000 international quality management system standards, and carry out standardized production and quality inspection.

Companies adhering to the "integrity management, mutual benefit, and common development" business purposes and "excellent products, sincere service, customer satisfaction," the quality management policy, has won the trust of our customers, is now with a number of shipyards, ship owners, and ships The unit has established long-term cooperative relationships, and its products are sold well all over the country and exported to Singapore, Taiwan, Japan, India, South Africa and other countries and regions. And has won the praise of many ship owners at home and abroad. In order to meet the needs of the market and the continuous expansion of the company's business, we are moving towards the goal of “more comprehensive, more professional and better quality” and strive to build one of the ship accessory suppliers recognized by more customers at home and abroad.
