Anti Static Esd Antistatic Conductive Polyester ESD Waterproof
Gabardine Fabric
Anti Static ESD Fabric Description:
High Quality 5Mm Grid Or Strip Cotton And Polyester Esd Fabric For
Cleanroom Garment
Anti-static cloth is made of conductive fiber from Japan Kanebo
belltron9R. It's mainly used in the production of dust-proof
clothing, anti-static clothing, anti-static mask, anti-static
glove, anti-static shoe and shoe cover. The fabric is 1.5m wide,
surface resistance 10^6Ω-10^9Ω, available for class 10-100
cleanroom.
Anti Static ESD Fabric types:
1. 98% polyester and 2% conductive yarn;
2.anti-static TC fabric 63% polyester + 35% cotton + 2% conductive
yarn;
3.antistatic TR fabric;
4.antistatic CVC fabric.
Different type fabrics adapt to the requirements of different
anti-static or cleanroom environment. Widely used in
microelectronics, optical electronics, precision instruments, and
aerospace which are more sensitive to static electricity and have
higher requirements in clearnoom.
Anti Static ESD Fabric Features:
1) It is also called"conductive silk", and it adopts the special
polyester filament and high quality conductive yarns
2) This fabric can be used for sewing kinds of functional garments,
such as coverall, suit, jacket, caps, boots and etc.
3) It offers good resistance to static, chemicals and abrasion.
4) It is designed for Class 1000 cleanroom and higher.
5) It has wide applications in electronics, medicals, biology,
optics, spaceflight industries etc
6) It meets ESD standards, system resistance 10e6-10e8Ω
Anti Static ESD Fabric Spefication:
| ITEM | 5MM STRIPE | 5MM GRID | 2.5MM GRID |

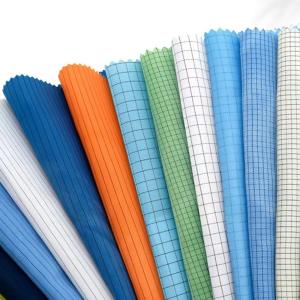

| Sample |  |  |  |  |  |
| Composition | 99.58% poly yarn
0.42% carbon fiber | 99.51% poly yarn
0.49% carbon fiber | 99.17% poly yarn
0.83% carbon fiber | 99.02% poly yarn
0.98% carbon fiber | 97.69%poly yarn
2.31% carbon fiber |
| Weave | 1/2 Twill | Plain/Twill | 1/2 Twill | Plain/Twill | 2/3 twill |
| Weight(g/m²) | 130 | 110 | 130 | 110 | 140 |
| Yarn Type | 100D | 75D | 100D | 75D | 100D |
| Width | 60inch(150Cm) | 60inch(150Cm) | 60inch(150Cm) |
| Air Permeability | 30 c.c/cm2/sec | 30 c.c/cm2/sec | 18 c.c/cm2/sec |
| Air Permeability | Warp 4100gf
weft 6250gf |
Warp 4170gf
weft 6000gf | Warp 4500gf
weft 6050gf |
| Surface Resistance | 10e6-10e8 ohm/unit | 10e6-10e8 ohm/unit | 10e6-10e8 ohm/unit |
| Friction Charges | <300V | <100V | <15V |
| Decay Time | 1.0 sec | 0.5 sec | 0.1 sec |
Filtration
Efficiency | 60%-80% | 60%-80% | 80%-90% |
