    240x320 IPS TFT LCD Screen , 2 Inch TFT Display With SPI RGB interface

    Ask Lasest Price
    Brand Name : SAEF
    Model Number : SF-TC200L-8455B-N
    Certification : ISO9001 / ISO14000
    Price : Negotiable based on order lot quantity
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 3000K pcs per month
    Delivery Time : 1-5 weeks
    • Product Details
    • Company Profile

    240x320 IPS TFT LCD Screen , 2 Inch TFT Display With SPI RGB interface

    2" inch 240x320 IPS type SPI+RGB interface TFT LCD Screen Product Introduction


    SAEF TECHNOLOGY SF-TC200L-8455B-N is a diagonal size 2.0”inch round shape IPS type TFT LCD Display with resolution 240x320 pixels.


    1. This 2 inch TFT LCD is an IPS TFT display.

    2. This 2-inch LCD display has a resolution of 240x320 dots.

    3. This 2-inch TFT display is full viewing angle, and the viewing angle range in each direction is up to 85 degrees.

    4. The overall dimensions of this 2 inch TFT screen are 38.5*52.05*2.6mm.

    5. This TFT screen 2" built-in driver IC ILI9335.

    6. This 2 inch TFT LCD screen is designed with SPI+RGB interface.

    7. This TFT display 2 inch is without touch screen, CTP and RTP can be customized according to requirements.

    8. This 2-inch TFT LCD can work in temperatures from -20°C to +70°C; The storage temperature is -30°C to +80°C


    Product:2.0" TFT LCDTouch Screen:Without Touch Screen(Customizable)
    Resolution:240x320 DotsViewing Direction:ALL

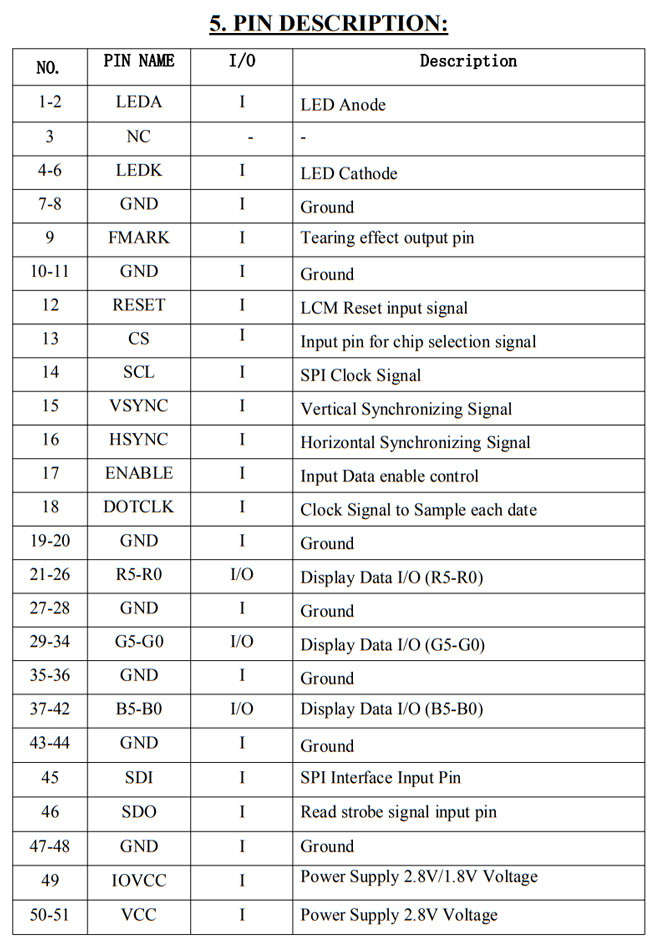

    Interface:SPI+RGB InterfacePin Number:26 Pins
    Connection:ZIF typeSurface Luminance:250 Cd/m2
    Operating Temp.:-20℃ To +70℃Compliance:REACH & RoHS Compliant

    Application

    This 2.0” TFT LCD module is widely used in black box, smart wearable device, mobile POS, cash reader, GPS hand-held phone, handheld food ordering machine, signal analyzers, bench top laboratory equipment, security system, home automation, mini audio player, baby monitor, and other handhold devices, etc.


    2" inch 240x320 IPS type SPI+RGB interface TFT LCD Screen Product Drawing

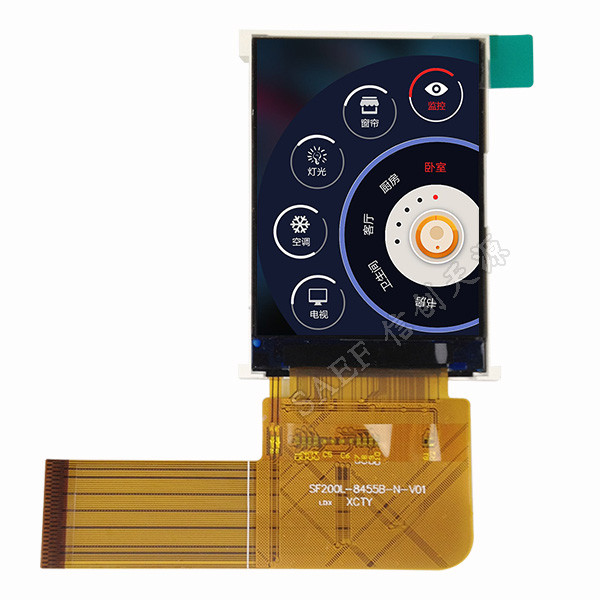

    2" inch 240x320 IPS type SPI+RGB interface TFT LCD Screen Product Image

    TFT LCD Display Module Manufacturer - more than 300 TFT standard items on line


    SAEF Technology is a global leading Manufacturer of TFT LCD display based China. SAEF offers a wide product range of small to medium sizes TFT display modules in sizes ranging such as 0.96", 1.22" round, 1.28" round,1.44", 1.54", 1.77, 2", 2.1" round, 2.2" 2.3", 2.4", 2.6", 2.8", 3", 3.1", 3.2", 3.4"round, 3.5", 3.6"round, 3.7", 4"round, 4.3", 4.6", 5", 5.5", 5.6", 5.7", 6.5", 7", 8", 9", 10.1", 10.2", 10.4", 11.6", 12.1" , 12.3", 13.3", 14", 15", 15.6", 17", 17.3" 18.4", 18.5", 19", 21.3", 21.5", 23.8", 24", 25", 27" and 28" TFT (diagonal size of the active area) and so on. There are more than 300 TFT standard models listed on this website; furthermore, almost each item is acceptable to derivate from the standard items to meet the customers' requirement.


    SAEF TFT displays are qualified under industrial standard including standard TFT-LCD modules, IPS TFT, High brightness TFT LCD (sunlight readable display), TFT panels with controller boards, Bar Type TFT, Wide Temperature TFT LCD. These displays include landscape or portrait modes. SAEF TFT LCD displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology. Many of our TFT display modules have more than one interface available including MCU, RGB, TTL, LVDS and MIPI DSI. SAEF TFT modules are perfect for a number of applications including industrial control, coffee machine, medical equipment, POS system, automation, GPS navigator, white goods, energy control, telecoms, medical equipment and etc.
