    STM32F401CCU6 Integrated Circuit Chip DSP FPU ARM Cortex M4 Microcontrollers

    STM32F401CCU6 ARM Microcontrollers - MCU Cost effective DSP FPU ARM CortexM4 MCU


    FEATURES:
    Dynamic efficiency line with BAM (batch
    acquisition mode)
    1.7 V to 3.6 V power supply
    -40 °C to 85/105/125 °C temperature range
    Core: Arm ® 32-bit Cortex ®
    -M4 CPU with FPU,
    Adaptive real-time accelerator (ART
    Accelerator™) allowing 0-wait state execution
    from Flash memory, frequency up to 84 MHz,
    memory protection unit, 105 DMIPS/
    1.25 DMIPS/MHz (Dhrystone 2.1), and DSP
    instructions
    Memories
    Up to 256 Kbytes of Flash memory
    512 bytes of OTP memory
    Up to 64 Kbytes of SRAM
    Clock, reset and supply management
    1.7 V to 3.6 V application supply and I/Os
    POR, PDR, PVD and BOR
    4-to-26 MHz crystal oscillator
    Internal 16 MHz factory-trimmed RC
    32 kHz oscillator for RTC with calibration
    Internal 32 kHz RC with calibration
    Power consumption
    Run: 128 μA/MHz (peripheral off)
    Stop (Flash in Stop mode, fast wakeup
    time): 42 μA typ @ 25 °C;
    65 μA max @25 °C
    Stop (Flash in Deep power down mode,
    slow wakeup time): down to 10 μA typ@
    25 °C; 28 μA max @25 °C
    Standby: 2.4 μA @25 °C / 1.7 V without
    RTC; 12 μA @85 °C @1.7 V
    V BAT supply for RTC: 1 μA @25 °C
    1×12-bit, 2.4 MSPS A/D converter: up to 16
    channels
    General-purpose DMA: 16-stream DMA
    controllers with FIFOs and burst support

    ARM Microcontrollers - MCU
    RoHS:Details
    STM32F401CC
    SMD/SMT

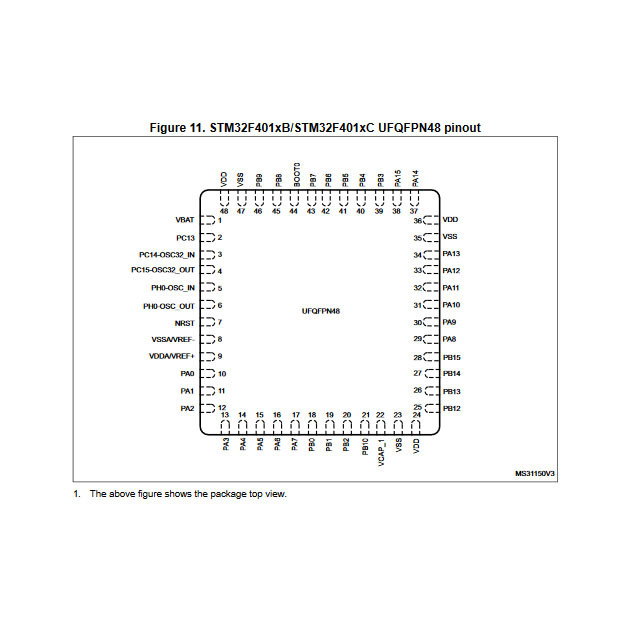

    UFQFPN-48
    ARM Cortex M4
    256 kB
    32 bit
    12 bit
    84 MHz
    36 I/O
    64 kB
    1.7 V to 3.6 V
    - 40 C
    + 85 C
    Tray
    Brand:Original in stock
    Data RAM Type:SRAM
    Interface Type:I2C, I2S, SPI, USART, USB
    Moisture Sensitive:Yes
    Number of ADC Channels:10 Channel
    Number of Timers/Counters:8 Timer
    Processor Series:STM32F401
    Product:MCU+FPU
    Product Type:ARM Microcontrollers - MCU
    Program Memory Type:Flash
    Factory Pack Quantity:1560
    Subcategory:Microcontrollers - MCU
    Supply Voltage - Max:3.6 V
    Supply Voltage - Min:1.7 V
    Tradename:STM32
    Watchdog Timers:Watchdog Timer, Windowed
    Unit Weight:0.091712 oz
