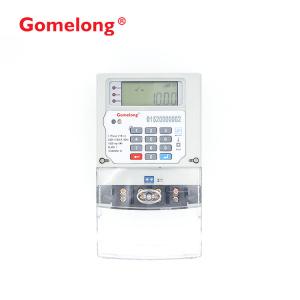

    kwh metersts plc smart electricity energy meter keypad 1 phase prepaid meters

    Ask Lasest Price
    Brand Name : GOMELONG
    Model Number : DDSY5558
    Supply Ability : 100000 Piece/Pieces per Month
    Price : $16.00/Pieces 1-9 Pieces
    • Product Details
    • Company Profile

    kwh metersts plc smart electricity energy meter keypad 1 phase prepaid meters

    MASS_APP4_1159_BEGIN

    MASS_APP4_1159_END

    Hot Style Keypad Prepayment STS Type Kilowatt Hour Meter


    Product Description


    Application

    DDSY5558 is a new type of keypad prepayment meter. Customer purchases energy by the vending network to get a serial number (named as "TOKEN"), and then use the keypad of meter to enter the TOKEN. The credit data will be entered into the meter after the TOKEN being accepted. The TOKEN contains 20 digits and is encrypted. For the purchasing method reason, the meter also named as "Keypad meter”. It complies with open standard STS.

    Feature

    Payment by 20 digits token

    Alarm when low energy/overload/fraud.

    With RS485 and optical communication functions for reading meter and setting parameters.

    Open terminal cover detection alarm.

    Technical parameters

    Specification

    DDSY5558

    DTSY5558

    Accuracy

    Active

    Class1.0

    Class1.0

    Reactive

    Optional

    Voltage

    Rated

    220/230/240V

    3x57.7/100V,3x220/380V

    3x230/400V,3x240/415V

    Range

    0.9Un~1.1Un

    0.9Un~1.1Un

    Limit

    0.8Un~1.2Un

    0.8Un~1.2Un

    Frequency

    50/60Hz

    50/60Hz

    Current

    Range

    5(20)A ,5(25)A ,5(30)A,5(32)A

    3x1.5(6), 3x 5(30), 3x 10(50),

    3x 15(90), 3x 20(100), 3x 5(40), 3x 5(100)A

    Starting Current

    0.4%Ib

    0.4%Ib

    Constant

    Active

    1600imp/kWh

    400imp/kWh

    Reactive

    Display

    Type

    LCD

    LCD

    Digit

    6+2

    6+2

    Power Consumption

    Voltage Circuit

    ≤0.8W,10VA

    ≤0.8W,10VA

    Current Circuit

    ≤4VA

    ≤4VA

    Communication Interface

    Interface

    Optical/Infrared/RS485 (Optional)

    Optical/Infrared/RS485 (Optional)

    Protocol

    MODBUS,DLT/645,IEC1107

    MODBUS,DLT/645,IEC1107

    Temperature

    Working Temperature

    -45℃~+55℃

    -45℃~+55℃

    Storage Temperature

    -40℃~+70℃

    -40℃~+70℃

    Humidity

    ≤90%

    ≤90%

    Protection

    IP54

    IP54


    Dimension&wiring diagram

    Company Information

    workshop

    Certifications

    Exhibitions

    Advantages

    FAQ

    contact us
