PlC Program Food Feed Bag Palletizer, Woven Bag Palletizer, Robot
Palletizer For Bags And Carton Box
Product overview:
The palletizing machine provides three-dimensional robot simulation
environment can be quickly added to robotic systems and
peripherals, and peripherals can be set up to operation and IO
interactive, simulation scenarios, thereby directly observed the
final operating results verify the feasibility of the program.

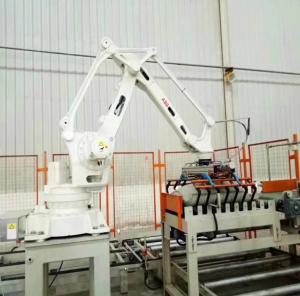

The palletizing robot is mainly designed for palletizing
applications. The articulated arm has a compact structure and can
be integrated into a compact back-end packaging process. At the
same time, the robot realizes the item handling through the swing
of the arm, so that the previous incoming material and the
following palletizing are connected, which greatly shortens the
packaging time and improves the production efficiency.
The palletizing robot has extremely high precision, precise picking
and placing of items, and fast response. The robot's palletizing
action and drive are realized through a dedicated servo and control
system. It can be repeatedly programmed through the teach pendant
or offline programming to achieve different codes for different
batches of products Fast switching of stacking modes, and can
realize the palletizing operation of a single machine on multiple
production lines!
Characteristic:
1. Simple structure, few parts, low failure rate and convenient
maintenance.
2. It occupies less space, which is good to the layout of the
production line and leaves a larger warehouse area.
3. Strong applicability. When the size, volume and shape of the
product change, only need to be modify the parameters on the touch
screen. Different grippers can be used to grab bags, barrels and
boxes.
4. Low energy consumption and reduced operation cost
5. The operation is simple, only the starting point and the
placement point need to be located, and the teaching method is
simple and easy to understand.
Parameter:
| Weighing range | 10-50kg |
| Packing speed (bag/hour) | 100-1200bag/hour |
| Air source | 0.5-0.7Mpa |
| Working temperature | 4℃-50℃ |
| Power | AC380V,50HZ, or customized according to the power supply |
Robotic gripper
Customize different robotic grippers according to different needs
of various industries.
Grab gripper
Splint gripper
Vacuum gripper, robot suction gripper
