Potato Starch Bagging Equipment Packer Weigher, Coffee Powder
Packing Machine, Tapioca Flour Bag Filling Equipment

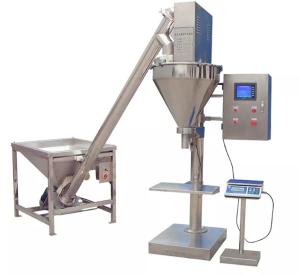

This machine adopts the measuring method of the combination of
screw filling and electronic weighing feedback, and has the
functions of automatic quantitative, automatic filling, automatic
correction error, counting, cleaning and so on.
Suitable for compound seasoning (such as spicy fresh), natural
seasoning (thirteen incense), food additives, flavor spices, flour,
milk powder,protein powder, solid drink, sugar, MSG, pesticides,
veterinary drugs, washing powder, enzyme preparation, feed
additives,
chemicals, new building materials (powder, superfine powder),
quantitative filling packing, powder mixture.

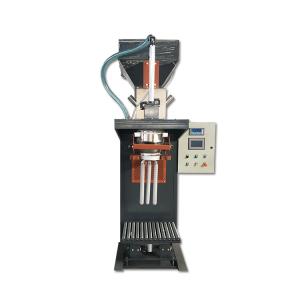

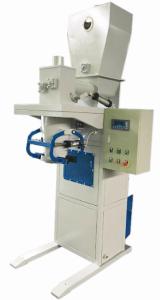

DCS-SF is a new type of high-performance powder bagging scale
developed by our company .It is suitable for flour, starch, feed,
food, chemical industry, light industry, medicine and other
industries. DCS-SF is mainly equipped with weighing mechanism,
feeding mechanism, body frame, control system, conveyor and sewing
machine, etc.
| Model | DCS-SF | DCS-SF1 | DCS-2SF |
| Weighing Range | 1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs |
| Precisions | ±0.2%FS |
| Packing Capacity | 150-200bag/hour | 250-300bag/hour | 480-600bag/hour |
| Power supply | 220V/380V, 50HZ, 1P/3P ( Customized) |
| Power (KW) | 3.2 | 4 | 6.6 |
| Dimension (LxWxH)mm | 3000x1050x2800 | 3000x1050x3400 | 4000x2200x4570 |
| The size can be customized according to your site. |
| Weight | 700kg | 800kg | 1000kg |
Working principle
Before packaging, it is necessary to manually set the target weight
on the instrument. The customer can adjust it according to the
demand. Manually put the packaging bag on the blanking port, and
then turn on the bag clamping switch. After receiving the bagging
signal, the control system will drive the air cylinder, and the bag
will be clamped by the bang holder. At the same time, the feeding
mechanism will send the materials from the silo to the packing
scale. The feeding mechanism is double screw feeding. When the
target weight is reached, the bag clamper will automatically open.
The packaging bag will fall on the conveyor, and the conveyor will
be transported back to the sewing machine. The bag will be manually
assisted to sew and output to complete the packaging process.
Functional features
Simple operation: adjust the weight through the instrument, the
operation is simple and fast;
High precision: select high precision weighing controller, good
reliability;
Save space: small floor area, flexible and convenient installation;
Adjustable scale speed: screw feeding, fast feeding and slow
feeding are realized by the controller, and the feeding speed can
be set arbitrarily;
Environmental protection operation: close the internal circulation
system, effectively prevent dust flying, improve the working
environment and protect the health of employees;
Reasonable structure: compact enough, small size, can be made into
fixed or mobile body according to user requirements;
Optional parts: bag mouth folding machine, automatic sealing
machine and dust removal unit can be selected.
