Intelligent Remote Control Electric Chain Window Opener Motor Smart
Home Use
Smart Electric Window Opener Office Building Window Operator
Skylight Awning Driver
Product Name | Smart Rain Sensor Electric Chain Window Opener With Built-in Remote
Controller |
Suitable application | All kinds of top/center/bottom hung windows ,push-pull windows,flat
windows ,skylight |
Motor type | Electric window openner |
Voltage | DC24V |
Current(A) | 0.2A/0.3A |
Control way | Wireless control with remote controller , hand-touch wall switch |
Warranty | 2 years |
Delivery time | 3-20days |
Opening travel | Between 100mm and 800mm can be customized |

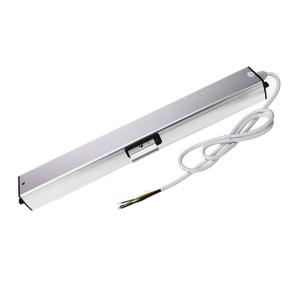

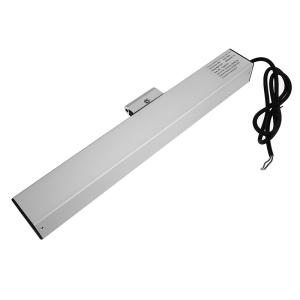

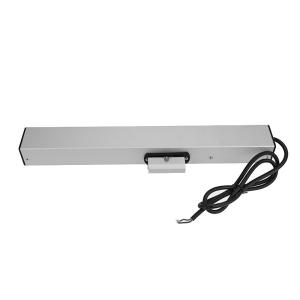

Electric chain window actuator opener motor
Smart Window Opener, as known as Chained Window Opener, relies on
the internal strong bilateral chain to achieve push and pull.The
shell is made of aluminum alloy material, so it has many
characteristics like large push and pull, small volume, good
safety, reliable quality, easy to use and so on.The product is
widely applied to skylight or side smoke window(like :Upper hanging
window ,lower hanging window ,side-hung window).
To meet different project requirement we have several other
optional type: 24V DCBasic: 300N with different length(stroke); 500N with different
length;Synchronized: this model can realize 2-8 pieces work
simultaneously, force and chain length can be set via software.220V
AC optional, please contact us to know details.
About the window opener
This device is compact, outlook designs very modern;
Ø There is one side no exposed screws, meet to visible surface no
screws required;
Ø Full Metal Aluminum Case;
Ø Double chain, not easy to break;
Ø Swivel bracket;
Ø Open and close 30,000 times continuously even after normal use;
Ø Working temperature: -20 ºC ~ 75 ºC;
Ø Suitable for a variety of window type;
Ø Switch controller panel can be remote control window opener
matching pairs upstream, downstream, dimming control and other
functions.
Safety and maintenance instruction
Ø Motor designs life: 30,000 times open and close ;
Ø Products in a year, the human damage failure of normal use one
pair of a free replacement, except consumables ;
Ø Do not overload electrical outlets or extension cords, fire or
electric shocks can be the result.
Ø Please contact an expert in case you have any doubts about the
mode of operation, the safety or connecting the appliances.
Ø Keep all parts away from young children's reach.
Ø Do not store this item on wet, very cold or warm places, this can
damage the electronic circuit boards.
Ø Avoid dropping or shocks, this can damage the electronic boards.
Maintenance
The devices are maintenance-free, so never open them. The guarantee
becomes void when you open the appliance. Only clean the outside of
the devices with a soft, dry cloth or a brush. Prior to cleaning,
remove the devices from all voltage sources.
NOTE!
Do not use any carboxylic cleaning agents or petrol, alcohol or
similar. These will attack the surface of devices. Besides, the
vapors are hazardous to your health and explosive. Do not use any
sharp edged tools, screw drivers, metal brushes or similar for
cleaning.
Tuya Smart App Built-in Autoamtic Window Opener Features
1. Wide voltage AC100 ~ 240V input, suitable for national voltage
standards
2. Different strokes can be selected by adjusting the knob switch,
the maximum stroke can reach 400mm
3. Suitable for windows with a width as small as 470mm
4.Life can reach 10,000 opening and closing actions
5. The chain adopts double-layer stainless steel metal sheet, which
runs stably and smoothly.
6. The shell is made of sandblasted aluminum profile, and the left
and right end caps and the mounting bracket are made of zinc alloy
precision die castings.
7. The internal structure is fixed by two fire-rated ABS seats, and
the guide rail is made of POM material to achieve a higher safety
factor and silent effect
8. Simple installation and disassembly, more humane design
