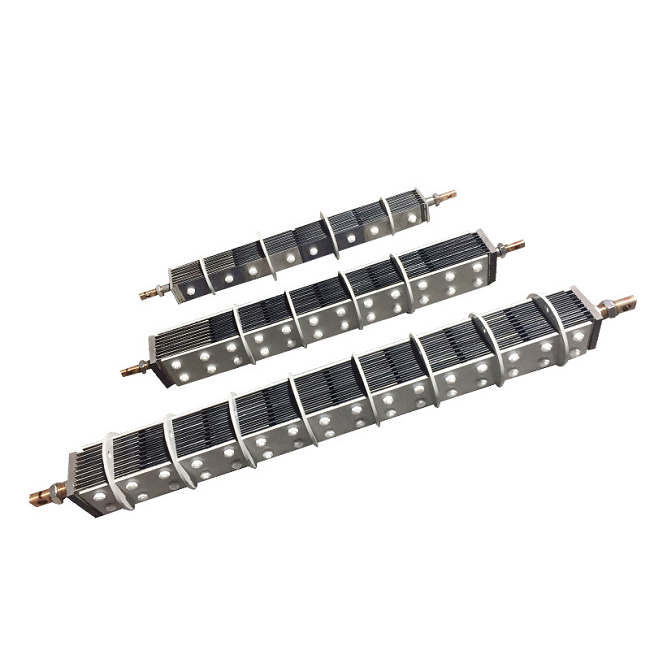

Ruo2 Iro2 Coated Titanium Electrode Plate 4 To 6um Corrosion Resistance Anode

Substrate Metal Chemical Composition:

Substrate Metal Mechanical Properties:

Why Choose Titanium As Basement :

1.Dimension stability

2.Long work life

3.The working voltage is low,so the power consumption is small

4.Corrosion resistance

5.Insoluble anode to avoid contamination of electrolyte and cathode products

Type 1:

1. The sodium hypochlorite generator is a combined form, which is metered into the electrolytic cell by dilute brine metering, and is electrolyzed by a silicon rectifier to generate sodium hypochlorite.

2. 1 kg of sodium hypochlorite salt consumption: 4.0-4.2; 4.3-4.5KW.

3. In the brine solution, there are several ions such as Na+ and H-. According to the theory of electrolysis, when the electrode is inserted, at a certain voltage, the electrolyte solution conducts electricity due to the movement of ions and the reaction of the electrode. At this time, CL-, Negative ions such as OH- move toward the anode, and positive ions such as Na+ and H+ move toward the cathode, and discharge occurs on the corresponding electrodes, thereby performing a redox reaction to produce a corresponding substance.

4. The brine solution electrolysis process can be expressed by the following reaction equation: NaCl=Na++Cl-

5. Anode electrolysis: H2O=H+OH- 2Cl-2e-→Cl2↑
Cathodic electrolysis: 2H-+2e-→H2↑

Type2:

1. In the non-diaphragm electrolysis device, the electrolyte and the electrolyzed product are escaping outward in the solution, and the others are all in one electrolytic cell. Because the hydrogen acts to a certain agitation of the solution during the escape process, the two poles are made. A series of chemical reactions take place between the electrolyzed products, and the reaction equation is as follows:

2NaCl+2H2O→2NaOH+H2↑+Cl2

2NaOH+Cl2→NaClO+NaCl+H2O

2. In the absence of diaphragm electrolyzed brine, the total equation of the solution is the sum of the two reaction formulas listed above. NaCl+H2O+2F→NaClO+H2↑

3. The sodium hypochlorite generator consists of an electrolytic cell, a silicon rectifier electric control cabinet, a salt dissolution tank, a cooling system, and a supporting PVC pipeline, a valve, a ejector, a flow meter, and the like.

Application:

1. Production of sodium hypochlorite disinfectant

2. Industrial wastewater by electrolysis

3.Swimming pool water treatment

4.Water sterilization

5.Water puritication

6. Aniti-fouling

Our Test and our control :

We can provide the Accelerated Life Test, Coating Thickness Test, Contact Resistance Test, Electrochemical Performance Test and other test before shpping .
